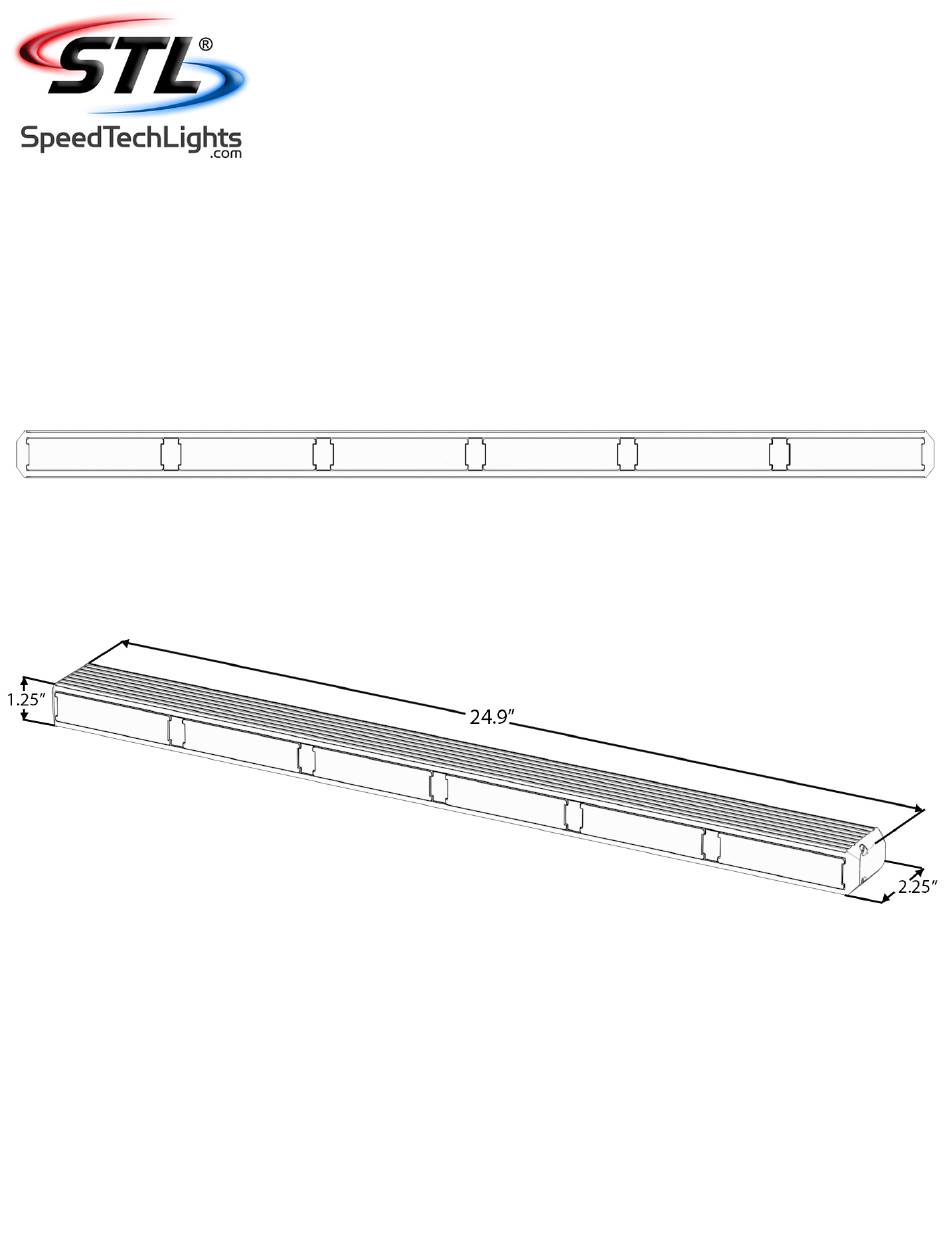

- Page 1 STRIKER ® TRAFFIC ADVISOR D-STT6 D-STTMC6 INSTRUCTION MANUAL SpeedTech Lights, Inc © 2019...
- Page 2 This document must be delivered to and read by the end user and installer as it serves to provide you with the required information for proper and safe use of your STL product. Before operating this or any STL products the user and installer must read this manual all the way through. You will find important information in this manual that could prevent property damage and/or serious injury to the user and installer.
- Page 3 Grommets, cable ties, looms, and other installation hardware should be used to anchor and protect all wiring. Fuses should be properly sized and located as close to the power take off points as possible to protect the wiring and device. To protect against short circuits, a fuse is included by STL for all products.
- Page 4 STRIKER ® TRAFFIC ADVISOR Wiring Diagram Wire Color Function Wire Color Function Positive Left Arrow Red (Thick)* Green Negative Center Out Arrow Black (Thick)* Orange Power Right Arrow Blue Brown Flash Pattern Slow / Fast Yellow Grey Flash Mode Purple * Indicates a main power cable.
- Page 5 STRIKER ® TRAFFIC ADVISOR Direct Control Switch Box Operation (Sold Separately) Power Button: • Push this button to turn On/Off the Direct Control Box. Flash Mode Button: • Switch back from Traffic Advising mode to Warning mode. Traffic Advisor Buttons: •...
- Page 6 STRIKER ® TRAFFIC ADVISOR 90° Suction Cup Bracket (Sold Separately) • Position the slide track screws included with the unit such that the screws line up with the bracket oval tracks. Use the included nuts and washers to secure the bracket to the unit. •...
- Page 7 STRIKER ® TRAFFIC ADVISOR Windshield Visor Assembly and Mounting The windshield visor contents include: • (1) Visor • (2) Visor end caps • (6) Short screws • (4) Long screws 1. Remove the stock end cap screws from both ends of the Light Bar. NOTE: Save these screws to revert back to non-visor configuration.
- Page 8 About Flash Patterns • All STL LED products are equipped with a non-volatile memory which will recall the last flash pattern when the Light Bar is turned on. • Set the flash pattern by pushing the Flash Pattern button on the Direct Control Box to cycle through the various patterns.
