Summary of Contents for SnoMaster SM-80

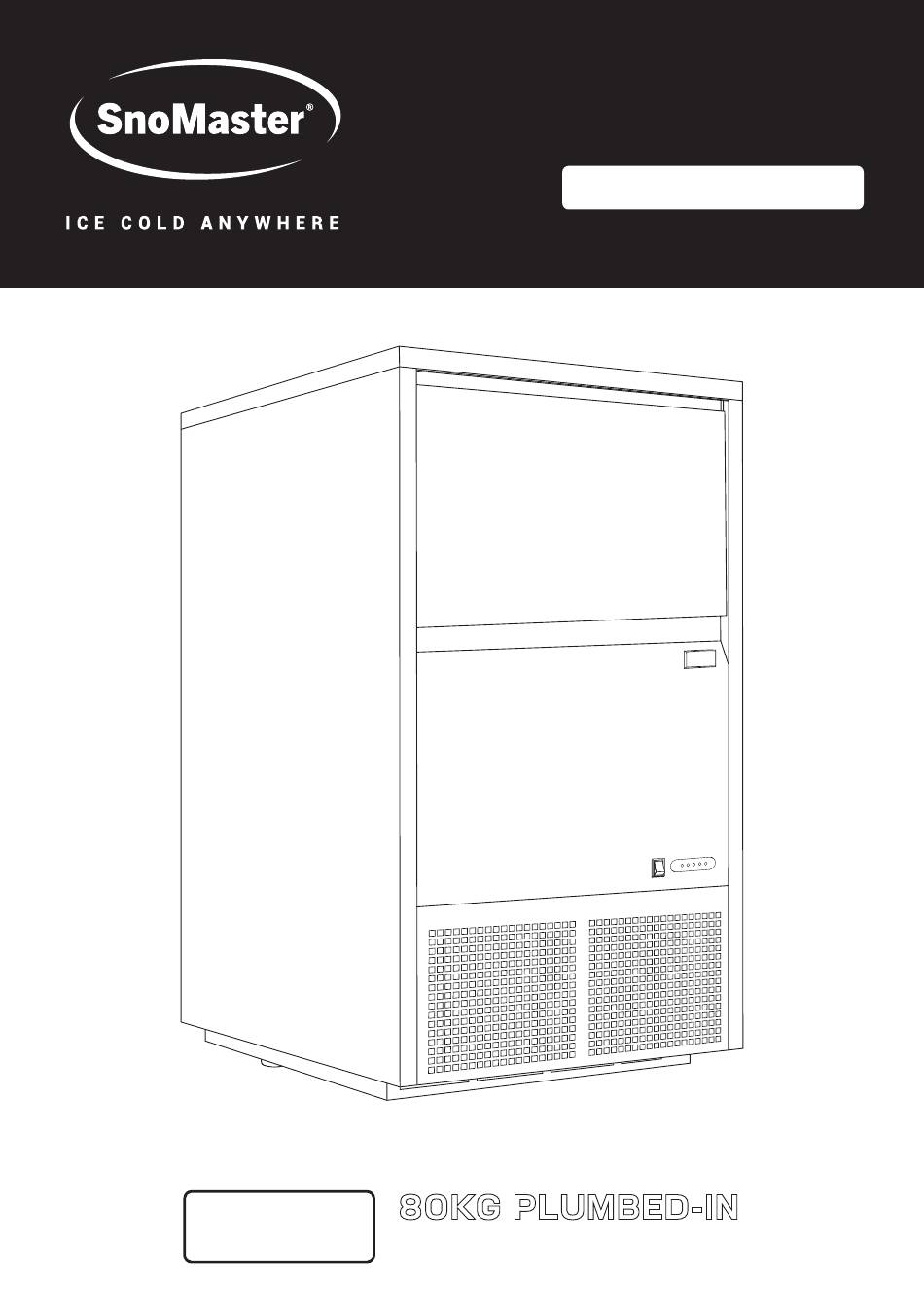

- Page 1 USER MANUAL AND PRODUCT SPECIFICATIONS SM-80 ICE-MAKER...
- Page 3 Service and Support IMPORTANT SAFETY INFORMATION Before Using Your Appliance Critical Safety Information For Your Safety PRODUCT FEATURES INSTALLATION INSTRUCTIONS Accessories Included Structure Operation Procedure Control Panel MAINTENANCE Cleaning the Interior Cleaning the Exterior ENERGY SAVING TIPS TROUBLESHOOTING SM-80 LIST OF PARTS...
- Page 4 THANK YOU FOR PURCHASING THE SM-80, 80KG PLUMBED-IN ICE-MAKER WARRANTY, SERVICE AND SUPPORT This product is warranted for 1-year on the compressor, 1-year on the unit and 1-year on all parts not listed from the date of purchase. Warranty does not cover products that have not been...
- Page 5 This manual contains important information including safety, installation, maintenance and warranty instructions of the SnoMaster SM-80, 80kg Plumbed-In Ice-Maker. Please read this manual carefully before use and follow all safety information and instructions. It is recommended to keep this manual for easy reference so that you are familiar with the operation and maintenance of your appliance.
- Page 6 • If the appliance power supply cord is damaged, it must be replaced by SnoMaster, its approved agent, or a similarly qualified person to prevent any hazard. • It is recommended that the circuit breaker size should be no more than 20 amps.
- Page 7 WARNING: RISK OF FIRE/ FLAMMABLE MATERIALS This appliance contains R290a refrigerant, which is FLAMMABLE and may cause a fire or an explosion. • Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. • Do not damage the refrigerant circuit. •...
- Page 8 • Dimensions (mm) Packaged: (H) 1140 (W) 730 (D) 620 • Rated Current: 3.5A • Suggested Applications: Office, Commercial Operation, Canteen, Sports Bar, Hotel, Café, Gym • Design Criteria: Engineered for the African Climate WATER INLET ~ WATER FILLING ~ ICE MAKING ~ WATER RELEASING ~ ICE DROPPING All these processes are automatically controlled for continuous ice-making.
- Page 9 ACCESSORIES INCLUDED Please Check If All The Accessories Shown Below Are Included: 2 x O RINGS TO 1 x ICE SCOOP 1 X FILTER HOUSING 4 x SCREWS FOR SEAL THE WATER FILTER CASING BRACKET INLET/ OUTLET BRACKET PIPES 1 x FILTER CARTRIDGE 1 x FILTER CARTRIDGE 2 x WATER INLET / HOUSING...
- Page 10 STRUCTURE 7 Ice Full Sensor 1 Power Switch 8 Power Cord 2 Display Panel 9 Water Inlet Valve 3 Front Panel 10 Drainage Outlet 4 Door 11 Leveling Feet 5 Ice Grid 6 45kg Ice Storage Bin INSTALL THE WATER INLET SYSTEM AS FOLLOWS: 1 Tap 2 Water Filter Inlet Pipe...
- Page 11 SURGE PROTECTOR PLUG To protect the appliance from electrical surges, it is advised to use a surge protector plug. (Please note that this must be purchased separately and is not supplied with the appliance.) OPERATION PROCEDURE Installation of this appliance by a certified plumber is recommended •...
- Page 12 • Remove the protective plastic film from the filter cartridge prior to installation. Carefully align the cartridge within the filter housing, ensuring it is seated evenly within the designated grooves. Secure the housing lid by screwing it on gently to avoid compromising the integrity of the filter.
- Page 13 CONTROL PANEL CLEAN FAULT WATER FULL • Use the On/Off switch to power the appliance on or off. The On/Off switch light will indicate the appliance is on. • Let the appliance run a few cycles so that it can fully calibrate. •...
- Page 14 CLEANING INTERNAL CLEANING • Remove the drain cap. • Remove the grommet for the water to drain. • Refit the grommet and the drain cap after the water reservoir has drained completely. • Ensure that the water inlet filter does not have any debris •...
- Page 15 External Cleaning • Dust the compressor at the back of the appliance with a brush or vacuum cleaner periodically, as dust build-up may affect the performance of the appliance. • Avoid using sharp objects, high-pressure water jets or abrasive materials when cleaning the appliance. •...
- Page 16 TROUBLESHOOTING...
- Page 17 SM-80 LIST OF PARTS Inner Liner Control Box Cover Ventilation Panel Control Box Down Panel Fixer Board Main Control Board Operation Panel T Tube Sticker Of Operation Panel Discharge Tube Power Switch Drainage Connector Down Panel Door Drainage Pipe Warp...
- Page 18 CAPE TOWN LIFESTYLE CENTRE CENTRE & SERVICE CENTRE & SERVICE CENTRE 49 Koornhof Road 31 Stella Road Meadowdale Montague Gardens Germiston, 1614 Cape Town, 7441 011 392 5315 / 3147 021 100 5695 info@snomaster.co.za info@snomaster.co.za snomaster.co.za @SnoMasterSA SnoMaster SA snomaster_south_africa @SnoMaster...
