Summary of Contents for SnoMaster ZBC-15

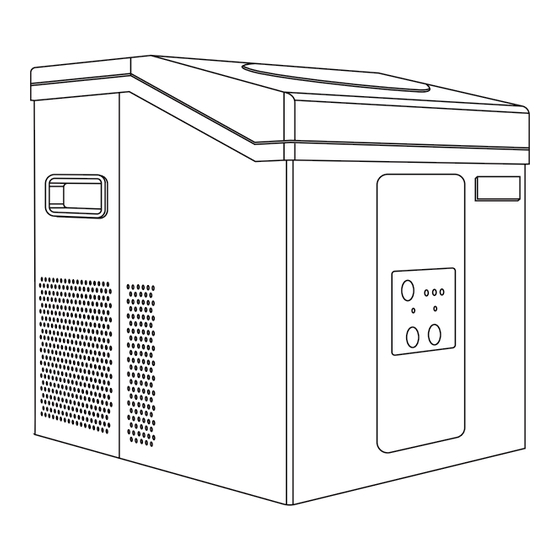

- Page 1 USER MANUAL AND PRODUCT SPECIFICATIONS ZBC-15 ICE-MAKER...
-
Page 3: Table Of Contents
CONTENTS WARRANTY, SERVICE AND SUPPORT Warranty Registration Service and Support IMPORTANT SAFETY INFORMATION Before Using Your Appliance Critical Safety Information For Your Safety INSTALLATION INSTRUCTIONS Water Accessories Included Control Panel MAINTENANCE Cleaning the Interior Cleaning the Exterior ENERGY SAVING TIPS TROUBLESHOOTING PARTS LIST... -
Page 4: Warranty, Service And Support
WARRANTY WARRANTY ON COMPRESSOR ON THE UNIT THANK YOU FOR PURCHASING THE ZBC-15, 15KG COUNTER-TOP ICE-MAKER WARRANTY, SERVICE AND SUPPORT This product is warranted for 5 years on the compressor, 3 years on the unit and 1 year on all parts not listed from the date of purchase. -
Page 5: Important Safety Information
IMPORTANT SAFETY INFORMATION SNOMASTER ZBC-15, 15KG COUNTER-TOP ICE-MAKER This manual contains important information including safety, installation, maintenance and warranty instructions of the SnoMaster ZBC-15, 15kg Counter-Top Ice-Maker. Please read this manual carefully before use and follow all safety information and instructions. It is recommended to keep this manual for easy reference so that you are familiar with the operation and maintenance of your appliance. - Page 6 • If the appliance power supply cord is damaged, it must be replaced by SnoMaster, its approved agent, or a similarly qualified person to prevent any hazard. • It is recommended that the circuit breaker size should be no more than 20 amps.
-
Page 7: Installation Instructions
PRODUCT FEATURES 12 CUBES PER CYCLE | PORTABLE | STAINLESS STEEL SPECIFICATIONS: • Dimensions (mm) Unit: (H) 415 (W) 380 (D) 400 • Storage Volume: 2Kg • Net Weight: 17.2Kg • Ice Making Capacity: 15Kg/24h • Voltage: 220-240V/50Hz • Total Input Power: 110W •... -
Page 8: Water
WATER • Water treated with reverse osmosis purification often gives a false water indicator. You can add a pinch of salt to correct this, or rather use filtered mineralized water. • Ice cycle time is dependent on water temperature. • Clean and drain the appliance at least once or twice a month. Lemon juice or 10ml vinegar can be added to the water to help the cleaning process. -
Page 9: Control Panel
STRUCTURE Inner Liner Ice Basket Control Panel Ice Pusher Ice Full Sensor Water Drain Cap Filter Leveling Feet Stop Ice Making Cycle E Water Low Select Ice Size Ice Full Indicator Indicator Start Ice Making Cycle OPERATION PROCEDURE • Place the Ice Basket inside the appliance. •... - Page 10 • The appliance will now start producing ice. *Time between ice making cycles will vary depending on the ambient and water temperature. • To change the ice bullet size, press the 'Select' button to choose your bullet ice size preference. •...
-
Page 11: Energy Saving Tips
TIPS TROUBLESHOOTING Should you experience any issues with your appliance and the below troubleshooting tips do not resolve the fault experienced, kindly contact SnoMaster Service Department or your nearest accredited Service Agent: PROBLEM PROBLEM POSSIBLE CAUSE / MEASURE Ice-maker is not •... -
Page 12: Troubleshooting
TROUBLESHOOTING PROBLEM PROBLEM POSSIBLE CAUSE / MEASURE Exterior of ice-maker • Condensation will form on the outside of the ice-maker is wet if it operates in humid areas or in the rainy season, simply wipe it dry with a non-abrasive cloth. The power indicator •... - Page 13 TROUBLESHOOTING PROBLEM PROBLEM POSSIBLE CAUSE / MEASURE Ice is not forming • Possible gas leak. • Replace lter drier. Ice is forming a solid • The water temperature is too low, move the ice-maker to block a warmer area or use luke warm water. •...
- Page 14 ZBC-15 LIST OF PARTS Cover Of Box For Main Control Board Main Control Board Back Lid Back Lid Inner Liner Turning Motor Lid Window Front Panel Limit Pole Front Lid Inner (With Window) Front Lid Liner Fluoroscope Operation Board Fixer For Operation Board...
- Page 15 CAPE TOWN LIFESTYLE CENTRE CENTRE & SERVICE CENTRE & SERVICE CENTRE 49 Koornhof Road 31 Stella Road Meadowdale Montague Gardens Germiston, 1614 Cape Town, 7441 011 392 5315 / 3147 021 100 5695 info@snomaster.co.za info@snomaster.co.za snomaster.co.za @SnoMasterSA SnoMaster SA snomaster_south_africa @SnoMaster...
Need help?
Do you have a question about the ZBC-15 and is the answer not in the manual?
Questions and answers
My ice maker swicht off before ice are made
The SnoMaster ZBC-15 ice maker may turn off before making ice due to the following reasons:
- Obstructions or ice blocking the ice pusher.
- A faulty water box motor that needs repair or replacement.
- A possible gas leak.
- A clogged filter drier that needs replacement.
- A faulty solenoid valve that requires replacement.
- Electrical issues such as a blown fuse on the main relay board.
- The appliance not being plugged into a dedicated power source.
This answer is automatically generated
