PWE-M770
150W M-Series Powered Subwoofer
with Bass Controller
Owner's Manual
The 9th Towers, Tower B, 24th Floor, Unit TNB01-03,
161-165 Princes Highway,
33/4 Rama 9 road, Huay Kwang, Bangkok, 10310, Thailand
Hallam Victoria 3803, Australia
Phone +66 (2) 090 9596
Phone 03-8787-1200
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Alpine M Series
Summary of Contents for Alpine M Series

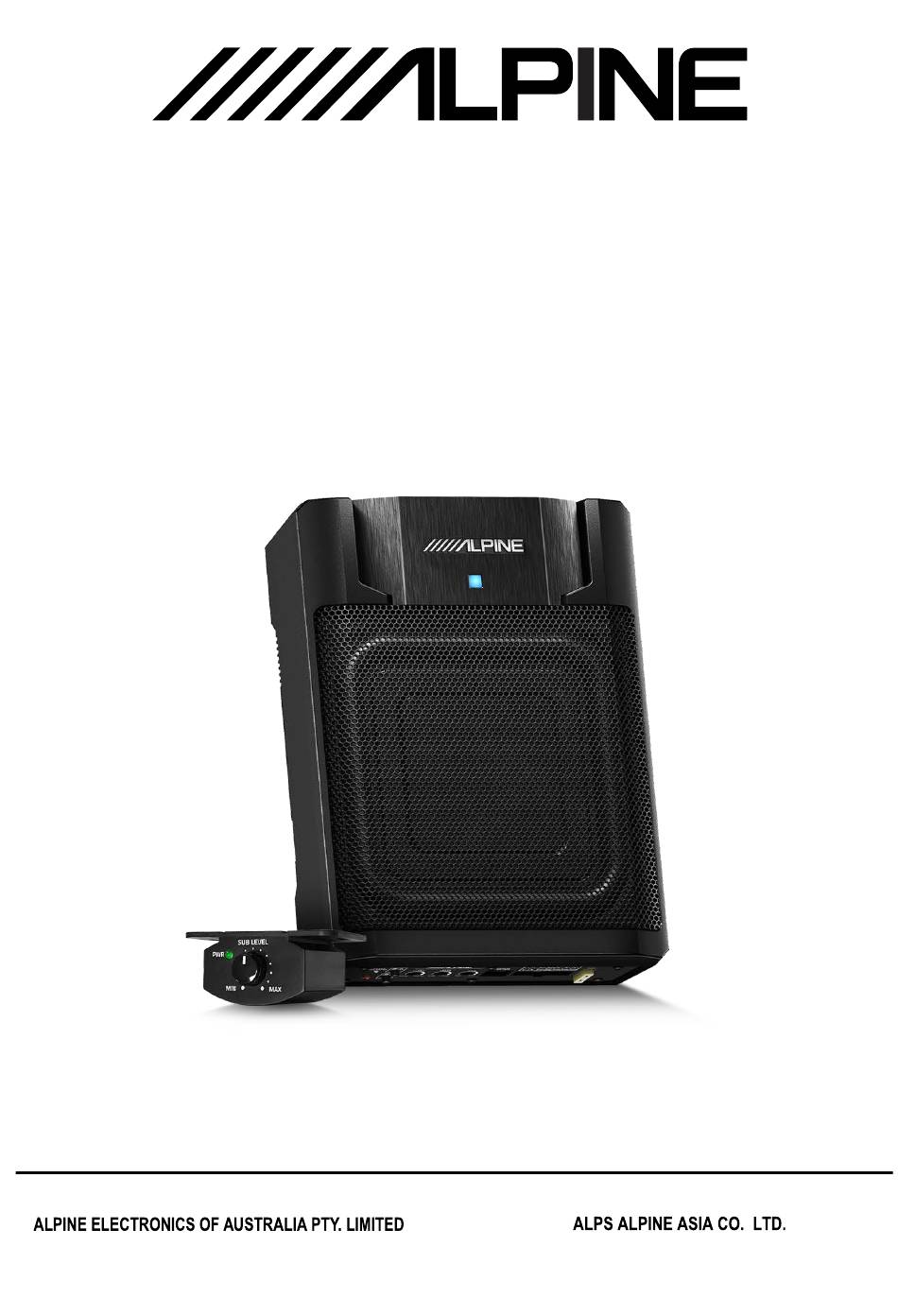

- Page 1 PWE-M770 150W M-Series Powered Subwoofer with Bass Controller Owner's Manual The 9th Towers, Tower B, 24th Floor, Unit TNB01-03, 161-165 Princes Highway, 33/4 Rama 9 road, Huay Kwang, Bangkok, 10310, Thailand Hallam Victoria 3803, Australia Phone +66 (2) 090 9596 Phone 03-8787-1200...
- Page 2 Continued use may result in personal injury or damage to -20°C and 60°C. the product. Please return the product to the authorised Alpine dealer or nearby Alpine service center for repair. Repair The product is only suitable for 12V In the case of a problem, please do not attempt to repair the product yourself.
- Page 3 Components 14 Pin Connector Powered Subwoofer Mounting Bracket Small Screw Large Screw Velcro Strip Owners Manual Bass Level Controller & Cable...
- Page 4 Specifications Subwoofer 7x7" (178x178mm) Rated Power 150W (test voltage 14.4V) Peak Power 300W (test voltage 14.4V) Signal to noise ratio ≥ 90dB Distortion ≤ 0.2% Frequency Response 10Hz-150Hz High level input sensitivity Low level input sensitivity 100mV Power requirements DC 14.4V (10-16V) negatively grounded Operating temperature C ~ 60 Storage Temperature...
- Page 5 Panel Interface and Functions 0000 Power indicator Illuminates to indicate power. Phase switch Phase selector switch. High-level input port High-level signal connection. Low-level input port Low-level signal connection. REM start port Remote start up connection port. Power input port Connect car battery. Product fault indicator If illuminated red, product is malfunctioning.
- Page 6 Installation Connection Diagram RCA Input Connection Diagram High-Level Input Connection Diagram Please choose one of the two connection methods, but do not use them at the same time. Failure to operate as required may result in a fire or electrical hazard. It is prohibited to install bolts or nuts to the brake or steering system (or other related items), fuel tank or ground connection.
