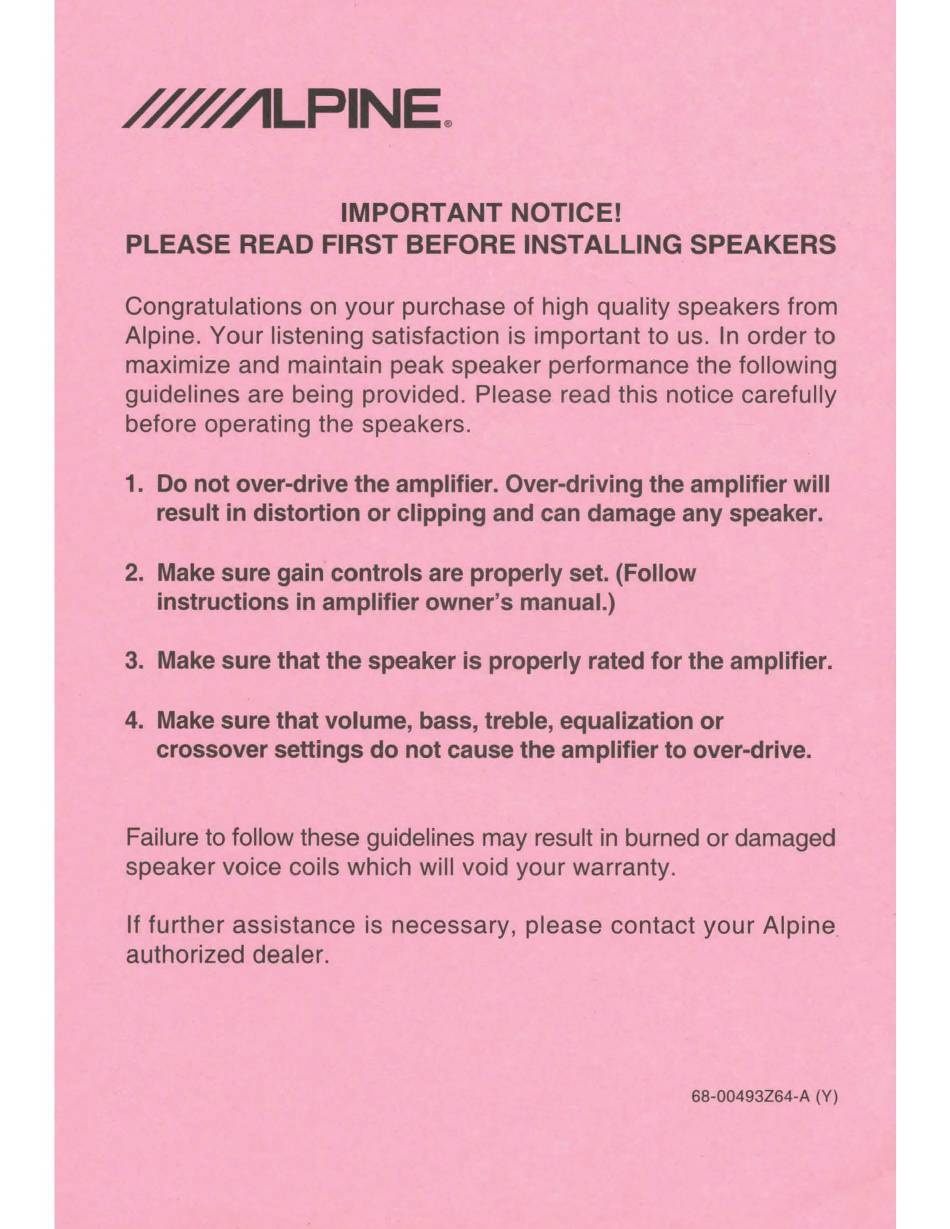

IMPORTANT NOTICE!
PLEASE READ FIRST BEFORE INSTALLING SPEAKERS
Congratulations on your purchase of high quality speakers from
Alpine. Your listening satisfaction is important to us. In order to
maximize and maintain peak speaker performance the following
guidelines are being provided. Please read this notice carefully
before operating the
speakers.
1. Do not over-drive the amplifier. Over-driving the amplifier will
result in distortion or clipping and can damage any speaker.
2. Make sure gain controls are properly set. (Follow
instructions in amplifier owner's manual.)
3. Make sure that the speaker is properly rated for the
amplifier.
4. Make sure that volume, bass, treble, equalization or
crossover settings do not cause the amplifier to over-drive.
Failure to follow these guidelines may result in burned or damaged
speaker voice coils which will void your
warranty.
If further assistance is
necessary,
please contact your Alpine
authorized
dealer.
68-00493Z64-A
(Y)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Alpine R Series
Summary of Contents for Alpine R Series
- Page 3 R-Series Shallow Subwoofer Caisson de graves peu profond Série RS APPLICATION GUIDE GUIDE D' APPLICATION RS-W12D4 Ω Ω 12 Inch Dual Voice Coil Shallow Subwoofer (4 )+(4 Caisson de graves peu profond avec bobine à 2 voies de 12 po (4Ω)+(4Ω) RS-W12D2 12 Inch Dual Voice Coil Shallow Subwoofer (2Ω)+(2Ω) Caisson de graves peu profond avec bobine à...
- Page 4 Frame Trim Ring Compatible with RS Grille Kit Aluminum Dust Cap Black Anodized Vented Coil Former Enhanced Air Flow DD Linear Dual Magnetic Gap Cone Assembly Low Distortion at High Excursion Holder Dual R-Series Threaded Frame Terminal Rear Mounting Frame M4 Thread Motor Cooling Fin Die-Cast...
-
Page 5: General Specifications
R-Series RS-W10D2 RS-W10D4 RS-W12D2 RS-W12D4 General Specifications 2Ω+2Ω 4Ω+4Ω 2Ω+2Ω 4Ω+4Ω Sealed Taille 10" 12" 25Hz-100Hz Frequency Response Response en Fréquence Power Range Plage de Puissance 500W-600W RMS 600W RMS/ Power Handling Puisance Admissible 1800W Peak 10.4 oz Magnet Weight Poids de l'aimant Voice Coil Diameter Diamètre de la bobine... - Page 6 APPLICATION DIAGRAMS Example 1 Exemple 1 ê ê One 2Ω DVC Speaker = 1Ω load One 2Ω DVC Speaker = 4Ω load One 4Ω DVC Speaker = 2Ω load One 4Ω DVC Speaker = 8Ω load 2Ω 2Ω 4Ω 4Ω 1Ω...
- Page 7 RS-W10D2/D4 RS-W12D2/D4 Net Internal Volume 0.45 - 1.0 ft 0.6 - 1.5 ft Sealed Box Range External Dimension 16" x 15" x 6.25" 18" x 15" x 6.5" (W x H x D) Recommended Gross Internal Volume 0.54 ft 0.65 ft Sealed Box (Small Volume Size) Net Internal Volume...
- Page 8 RS-W10D2 RS-W10D4 70.1mm [2.76in] 23.2mm [0.91in] 81mm [3.19in] ALPS ALPINE (Head Office) ALPS ALPINE EUROPE GmbH (Sweden Office) ALPS ALPINE EUROPE GmbH (Italy Office) 1-7, Yukigaya-otsukamachi, Ota-ku Gruvgatan 37, 421 30 Viale C. Colombo 8, 20090 Tokyo, 145-8501 Vastra Frolunda, Sweden Trezzano sul Naviglio (MI), Italy TEL.
