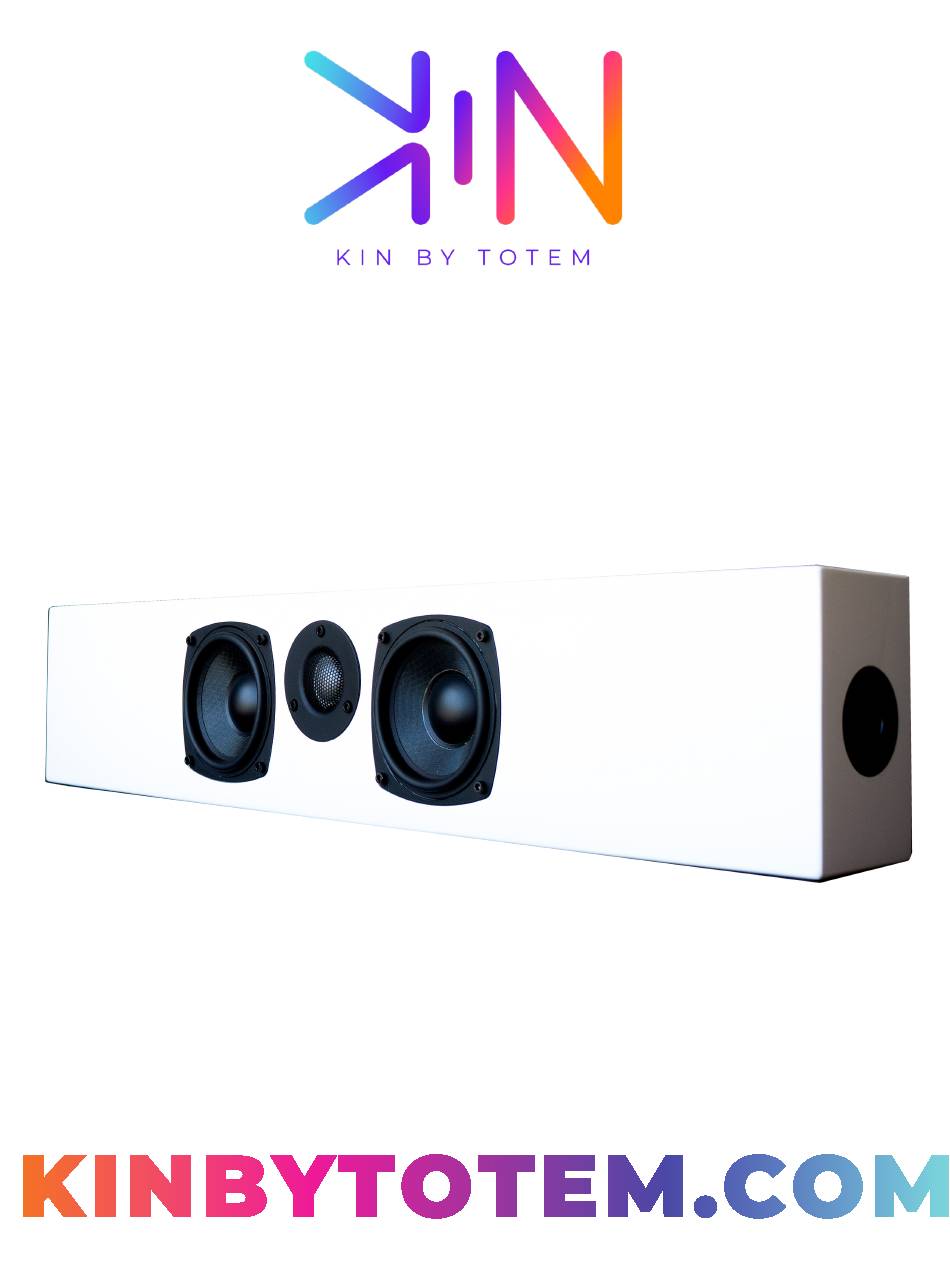

- Page 1 KIN Solo OWNERS MANUAL...
- Page 2 DAC w i th bot h a ptx ™ HD Bl u e to ot h a n d ph o n o s ta g e fo r c er tai n mo de ls . Totem’s DN A a b o u n d s t h ro u g h o u t K I N , a l l owi n g fo r ea se o f pl acem en t w h i l e provi d i n g a li fe l i ke s o n ic exp e r ie n c e in any a ppl i ca t io n , be i t fo r mu si c , movi e s o r g a m i n g , e tc .
- Page 3 Th e a r t isti c vi si on of t h e interior design e r an d th e f ire of th e pa s siona te music lover coalesce in th e KIN Solo. It p o ss es s es th e stylish fo rm to m atch th e slim dim ens ions of to day ’s bi g s cre ens a n d To tem’s majestic voice an d s u rreal...
- Page 4 KIN SOLO...
- Page 5 Restriction of Hazardous Substances (RoHS) and CARB certification. UNPACKING Totem Acoustic keeps to a strict quality control regimen and all factory- sealed products leave our facility in perfect condition. If there are any damages visible or concealed that has occurred in handling it must be reported immediately to your Authorized Totem Dealer.
- Page 6 SPEAKER POSITIONING AND PLACEMENT KIN SOLO speakers have with great dispersion, both on the vertical and horizontal axis. They can be placed in extremely varied positions and still produce a large and accommodating, non-shifting soundstage. Keep in mind that a room with a variety of materials will deliver a much more harmonized sound.
- Page 7 SPEAKER POSITIONING AND PLACEMENT Totem generally recommends that on wall speakers be positioned at least 12 in (30.5 cm) from side wall to allow a better energy flow and cleaner bass response. Moving them closer to boundaries will result in more bass enhancement but can negatively affect the perceived depth of the soundstage.
- Page 8 WALL MOUNTING The KIN Solo can conveniently be wall mounted horizontally or verti- cally with the supplied bracket and hardware. The flat surface of the bracket faces the wall, and the bolt protrusions face the speaker. 1. Affix the four rubber feet to the back corners of the speakers.
- Page 9 TRESS CABLE Speaker cable is an important element of the overall system performance so ask your dealer about Totem Tress cable. Tress is a twisted pair of 14-gauge, multi stand, linearized oxygen-free silver-plated conductors coated in black and white Teflon. Dielectric shielding makes it impervious to damage and oxidization.
- Page 10 Totem owner. Our intense listening sessions are conducted without a grills and we believe yours should as well.
- Page 11 VOLUME All connections should be made with the equipment turned off. Volume controls on the amplifier/ receiver/preamplifier are very misleading. Please note that the volume control does not address power-output, but simply adjusts the audible level of music. It is the type of music being played that has an incidence on the amount of power used at a given volume level.
- Page 12 KI N S OLO Speci f ic atio ns Design: ON WALL Tweeter: 1” Titanium Infused Soft Dome Woofer: Dual 4” MHEX Recommended Power: 20-125w RMS Frequency Response: 57Hz – 21kHz +-3dB Impedance: 6 ohm Sensitivity: 90dB Dimensions (WxHxD) : 5 ½x 27 9/16 x 3 1/2inches / 39 x 700 x 89mm Weight: 11.35lb / 5.15kg...
- Page 13 Keep your original bill or receipt obtained from your Totem Authorized Dealer. All Totem products are created with the utmost care and quality in mind. If ever a problem should arise, Totem’s speakers are covered by a two (2) year limited warranty on the amplifier and 5 years on the drivers, starting from the date of purchase.
