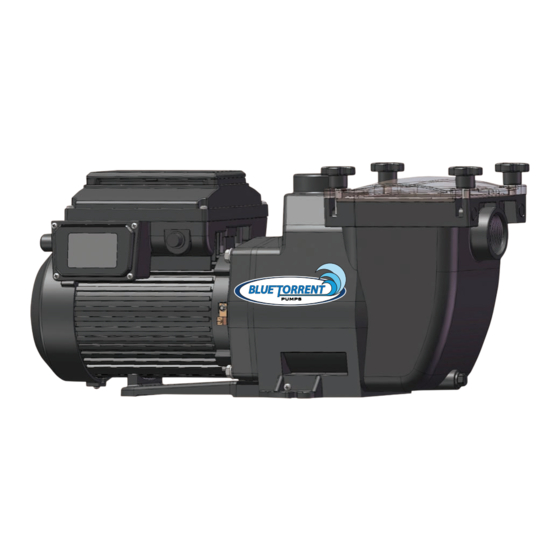

Blue Torrent TYPHOON Instruction Manual

Blue Torrent TYPHOON Instruction Manual

Variable speed pump

Advertisement

Quick Links

TYPHOON
VARIABLE
SPEED PUMP
INSTRUCTION MANUAL
PUMPS
READ THIS MANUAL CAREFULLY BEFORE USING
YOUR TYPHOON VARIABLE SPEED PUMP
9595

Advertisement

loading
Need help?

Need help?

Do you have a question about the TYPHOON and is the answer not in the manual?

Questions and answers

George
June 22, 2025

What does error code 24 mean?.

Summary of Contents for Blue Torrent TYPHOON

  • Page 1 TYPHOON VARIABLE SPEED PUMP INSTRUCTION MANUAL PUMPS READ THIS MANUAL CAREFULLY BEFORE USING YOUR TYPHOON VARIABLE SPEED PUMP 9595...
  • Page 2 TYPHOON VARIABLE SPEED PUMP PARTS BREAKDOWN DESCRIPTION PART # MODEL # AC 23248 Knobs AC 30341 AC 30376 Gasket AC 30333 Basket AC 23345 Strainer Housing AC 23558 Diffuser O-Ring AC 23493 Diffuser AC 23485 Impeller AC 23531 Seal Assembly...
  • Page 3 IMPORTANT SAFETY INSTRUCTIONS All wiring should be done by a qualified electrician in accordance NOTE to the National Electric Code and all Local Codes and ordinances. When installing and using this electrical equipment, basic safety precautions should ALWAYS be followed. READ AND FOLLOW ALL INSTRUCTIONS WARNING 1.
  • Page 4 OPERATION AND MAINTENANCE PUMP LOCATION 1. Locate the pump on a level surface as close to the pool as practical. Consult local codes for minimum distances between pool and pump if applicable. 2. The connection plumbing (hose or rigid pipe) should be direct and as free from turns and bends as possible.
  • Page 5 PUMP INSTALLATION 1. When connecting plumbing fittings to the pumps threaded ports, it is recommended that thread seal tape (Teflon tape) be used. If the suction (intake) connection is not sealed correctly the pump will not prime properly and will pump only small volumes of water or no water at all. 3.
  • Page 6 PUMP MAINTENANCE The pump requires little to no maintenance other than reasonable care and cleaning • of the strainer basket on a regular basis. The pump is equipped with a mechanical seal. This seal may eventually come loose of a period of time, depending on running time and water quality.
  • Page 7 The Variable speed pump can run at up to eight speeds that can be adjusted to run at specific time intervals. The Blue Torrent Variable Speed pump out performs all conventional pumps in its class. The pump can operate at speeds as low as 450 RPM and as high as 3450 RPM.
  • Page 8 CONTROL AND LED’S 1. SPEED 1 BUTTON / LED – Press to select speed 1 ( 750 RPM) . The LED above the button indicates Speed 1 is active 2. SPEED 2 BUTTON / LED – Press to select speed 2 ( 1500 RPM). The LED above the button indicates Speed 2 is active.
  • Page 9 10. QUICK CLEAN – Press Quick Clean and the pump will run at a preset speed and duration then resume current program speed. Used for vacuuming and pool maintenance 11. TIME OUT – When active – LED on- at the end of a “time out” preset time, the pump will run a schedule.
  • Page 10 OPERATING THE VARIABLE SPEED PRESETS To operate the Pump at one of the four preset speeds: 1. Be sure the pump is powered on and the green power LED is on. 2. Press the SPEED button (1-4) corresponding to the desired preset speed, and release quickly.
  • Page 11 EGG TIMER (Duration) – Speeds 1-4 can be programmed to run for duration of time once pressed. This means that the speed button is pressed, then the start button is pressed and the pump will run at a programmed speed and the speed will turn off at the end of a pre programmed amount of time.
  • Page 12 Set Temperature Unit Use this to set the temperature to Celsius or Fahrenheit. The anti-freeze protection feature can be set to either unit of measure 1. Check that the green power LED is on 2. Press the Menu Button. “Settings” is displayed 3.
  • Page 13 4. Use up or down arrow to scroll to “Set Min. Speed” 5. Press Select button to change the setting. The cursor will appear in the first number column 6. Press up or down arrow to change the pumps minimum speed setting from 450 RPM to up to 1700 RPM 7.
  • Page 14 9. Press the down arrow button. “Password timeout” is displayed 10. Press select to change time from 1 minute to up to 6 hours 11. Press the enter button 12. Press down arrow button. Enter password is displayed 13. Press Select button to change setting 14.
  • Page 15 MANUAL WORK MODE 1. Press the Menu button. ‘Settings” is displayed 2. Us the up or down arrow to scroll to manual 3. Press the select button “Manual speed 1” is displayed 4. Use the up or down arrow to choose Manual speed 1, 2, 3 or 4 5.
  • Page 16 6. Press the select button. “Set speed” is displayed 7. Press select button. The RPM column will highlight 8. Press up or down to change speed 9. Press enter to save speed setting 10. Press the down arrow. “Time Duration” is displayed 11.
  • Page 17 11. Press enter to save setting 12. Press down arrow button. “Pump Temperature” is displayed 13. Press select to change setting (default is 40 Degrees F) 14. Press enter to save setting 15. Press escape to exit ALERTS AND WARNINGS The pump displays all alerts and warnings on the control panel.
  • Page 18 TROUBLE SHOOTING GUIDE PROBLEM POSSIBLE CAUSE SOLUTION Pump will not prime - Check suction piping and valve glands Air leak in suction. on any suction gate valves. Secure lid on pump strainer pot and be sure lid PRIME ERROR may gasket is in place.
  • Page 19 PROBLEM POSSIBLE CAUSE SOLUTION Pump strainer pot Clean suction trap. clogged. PRIME ERROR may be displayed Air in system Bleed air from filter. Ensure that air bubbles are not visible coming into pump pot. Suction lift above design limits Insert vacuum gauge into pump port connection port.
  • Page 20 PROBLEM POSSIBLE CAUSE SOLUTION Could appear as a Check voltage at motor terminals and “Low Voltage” alarm. at panel while pump is running. If low, see wiring instructions or consult power PRIME ERROR may company. Check for loose connections. be displayed Electrial Problem Could appear as “Over...
