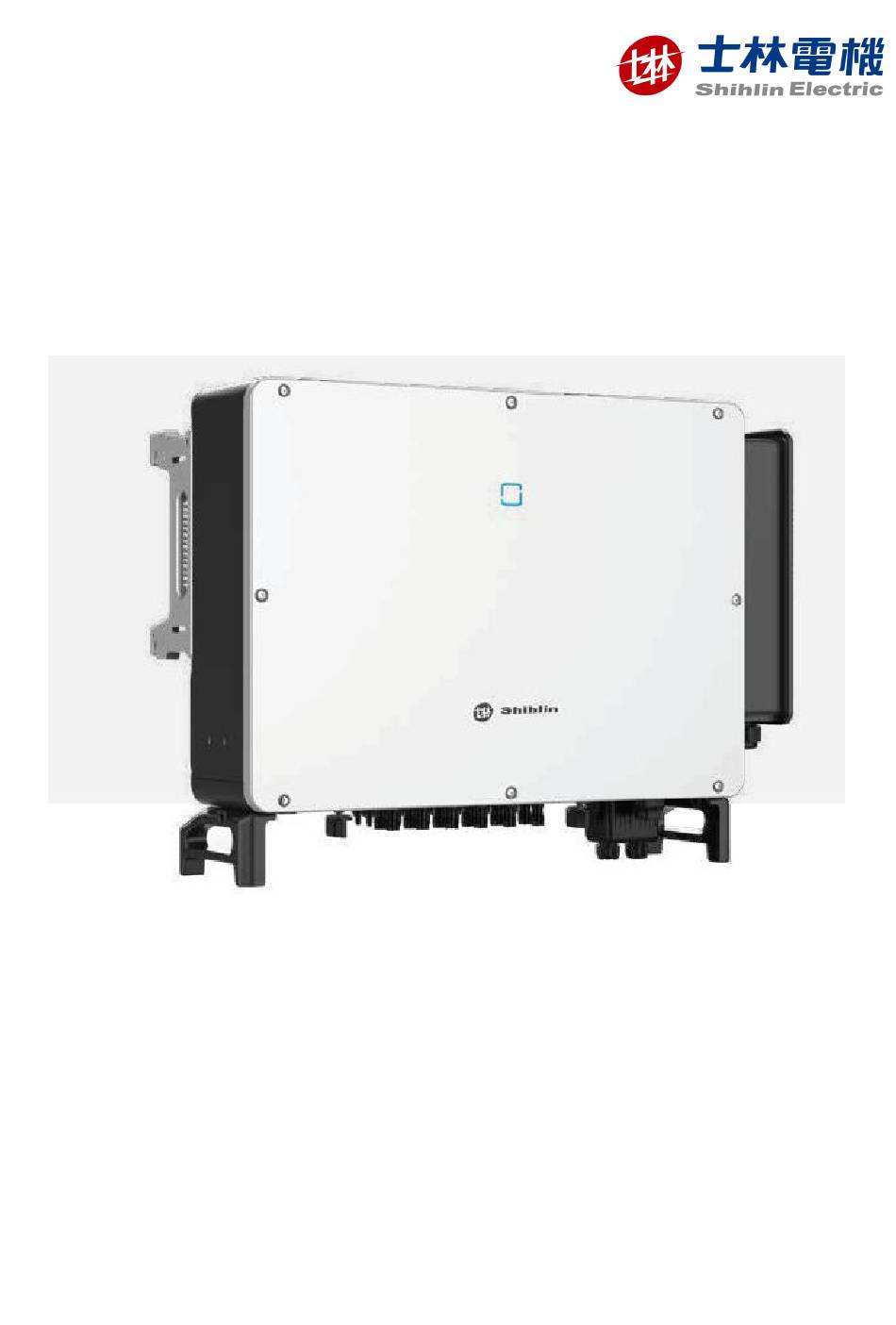

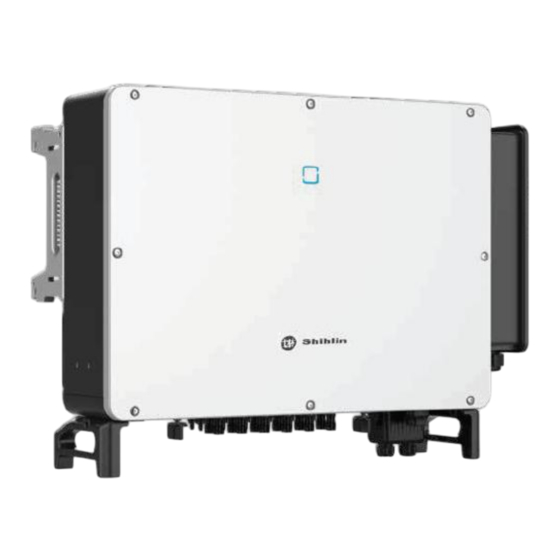

- Page 1 PV Grid-Connected Inverter Quick Installation Guide SP125HX SP125HX-QIEN-Ver15-202203...
- Page 2 Contents may be periodically updated or revised due to product development. The information in this guide is subject to change without notice. In no case shall this guide substitute for the user manual or related notes on the device. Make sure to read over, fully understand and strictly follow the detailed instructions of the user manual and other related regulations.
- Page 3 Scope of Delivery 12 x M4 x10 M6x14 M6x65 Mounting location ≤60 ℃ ｌ-30 ℃ ≧450mm ≤100% ≥10° Please consult SUNGROW before tilting backwards the inverter and install it in floating power plants. Dimenson 847 mm 800 mm 690mm 4-φ11...
- Page 4 Mounting 1.5 N.m PE Connection L = E + (2~3)mm 7~9 N.m AC Connection ≧ 40mm Remove this seal 70mm 10~13N.m 2.6 N.m...
- Page 5 L = E + (2~3)mm D: 20~50mm ≤270 mm C: 50~150mm 10~19N.m 10~19N.m 4.5 N.m DC Connection D: 6~9mm Click ≈7mm ≤1500V 4~6mm Click 880.0 ≤ 1500 V PV + Click...
- Page 6 RS485 Communication Connection Lower layer Upper layer Lower layer Upper layer RS485-1 interface (RJ45) RS485-1 dip switch RS485-2 interface RS485 DI DI PGND PGND NC COM NO A1 A1 B1 B1 CON1 RS485-1interface Emergency stop dry contact Fault output dry contact (Crimp) Terminal Block 7 mm...
- Page 7 Power on iSolarCloud APP SP125HX “user” …… “pw1111”...
- Page 8 More information in the QR code or at http://seec.com.tw...
