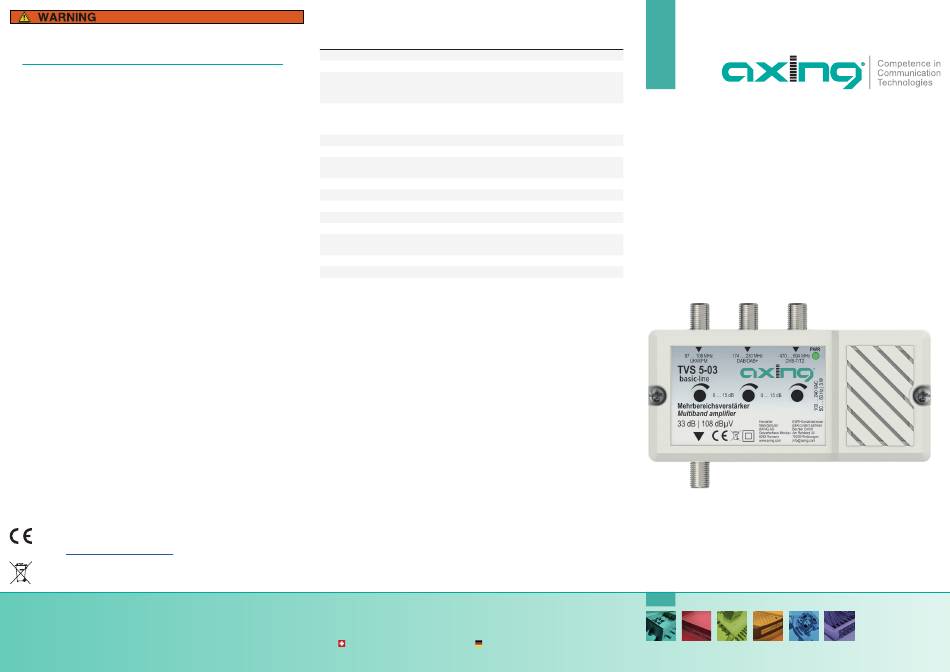

axing basic-line TVS 5-03 Operating Instructions page 3

 Observe the safety instructions supplied with the device!
They are also available at the following Internet address:
https://download.axing.com/BAs/Sicherheitshinweise_9sprachig.pdf
 Use the device only as described in these operating instructions and in
particular in accordance with the state of the art.
If the device is used for other purposes, no warranty will be assumed!
CE Confirmation Declaration
Hereby, AXING AG declares that the device is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet
address: https://axing.com/en/downloads/ce/.
WEEE Nr. DE26869279 | Electrical and electronic components must not be disposed of
as residual waste, it must be disposed of separately.
Technical improvements, changes in design, printing and other errors reserved.
Page 1 of 2 | AXING-BA_TVS-5-03.pdf | 2024-06-18
Technical data:
Type
Inputs
Connector
Frequency range
174 ... 230 MHz @ DAB/DAB+
470 ... 694 MHz @ DVB-T/T2
Gain
Attenuator adjustment range
Output
Max. output level TERR
(3rd order, EN 50083-3, 60 dB KMA)
Connector
General
Power supply 100 ... 240 VAC/50 ... 60 Hz
Power indicator
Power consumption
Operating temperature range
(acc. to EN 60065)
Dimensions (W × H × D) appr.
Weight
IP code
Complies with RED ETSI EN 303354 V1.1.1 for category D1 devices
Manufacturer EEA contact address
AXING AG Bechler GmbH
Gewerbehaus Moskau Am Rebberg 44
8262 Ramsen 78239 Rielasingen
www.axing.com info@axing.com
TVS 5-03
F-female
87 ... 108 MHz @ FM
33 dB @ FM
33 dB @ DAB/DAB+
TVS 5-03
33 dB @ DVB-T/T2
0 ... 15 dB
basic-line
108 dBµV
F-female
Multiband amplifier
LED
33 dB | 108 dBµV
3 W
–20 ... +50° C
Operation instructions
128 × 84 × 36 mm
0.3 kg
IP20
