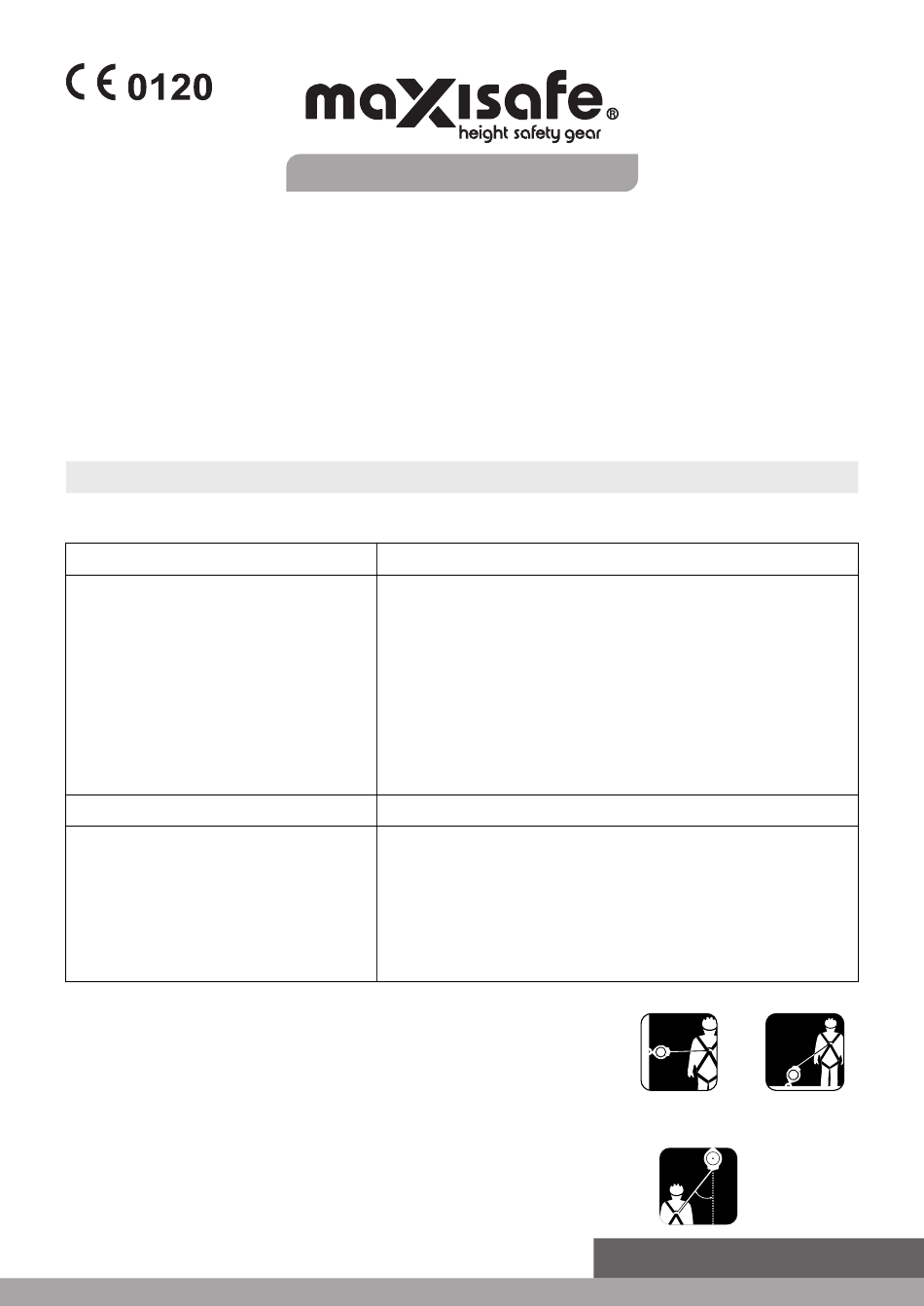

Maxisafe ZMIC02 User Instruction Manual

EN 360:2002
Applicable to Retractable Fall Arrester
Manufacturer
Certication Body
Ongoing Assessment Body
The Retractable Fall Arrester is classed as a Personal Protective Equipment (PPE) by the European PPE Regulation EU 2016/425 and has been shown to comply with this
Regulation through the Harmonized European Standard EN 360:2002.
CAREFULLY READ THESE INSTRUCTIONS BEFORE USING THIS RETRACTABLE FALL ARRESTER
This Retractable Fall Arrester is designed to minimise the risk of/provide protection against the danger of falling from heights. However, always remember that no item of PPE
can provide full protection and care must always be taken while carrying out the risk related activity.
Note: The user is advised to keep the user instructions document for the life of the product.
The equipment has been tested in accordance with EN 360:2002 & as per VG11 RFU# 11.060 and has achieved the following performance levels
EN 360:2002 test
Clause 4.1
Design & Ergonomics
Clause 4.2
Materials & Construction
Clause 4.4 Static Strength
(EN 360:2002)
Clause 4.5 Dynamic Performance
(EN 360:2002)
Clause 4.7 Corrosion Resistance
(EN 360:2002)
AS PER VG11 RFU # 11.060
1. Dynamic Performance :
a. Perpendicular to the edge
b. Lateral offset of 1.5 mtr
2. Dynamic Strength
a. Perpendicular to the edge
b. Lateral offset of 1.5 mtr
3. Static Strength after each Dynamic
Strength test
POSSIBLE USAGE : This Retractable Fall Arrester can be used as a part of a fall arrest system or as a part of a
restraint system. If using as a part of fall arrest system, a suitable anchor point (above the user's head. at least 12
kN) shall be used. Attachments to the anchor points and other ,equipment shall be made using oval Karabiners
conforming to EN 362. Material of the Lanyard is Technora webbing width 21.0mm.
It can be used on the sharp edges having radius > _ 0.5mm
HOW TO USE :
STEP 1 : Connect the swivel eye at the top of the Retractable Fall Arrester to a suitable anchorage point situated
above the user's head using Karabiners as per EN 362 & ensure the Karabiner is locked.
STEP 2 : Now connect the swivel hook of the equipment to the attachment element of your full body harness and
ensure that it is locked. You are now safe to move up & down in noRMal speed. In the event of a fall, the Retractable
Fall Arrester locks & also minimizes the impact forces on the body of user.
USER INSTRUCTION MANUAL
: ZMIC02
: Techware Pty Ltd, 03 9369 7000, www.maxisafe.com.au
: SATRA Technology Europe Ltd, Bracetown Business Park, Clonee,
Dublin D15 YN2P Ireland (Notied Body 2777)
: SGS United Kingdom Ltd., Unit 202B, Worle Parkway,
Weston-super-Mare, BS22 6WA, UNITED KINGDOM.
(Notied Body 0120)
PERFORMANCE AND LIMITATIONS OF USE
Achieves required performance as stated in EN 360:2002 (PASS).
Lanyard free from sharp or excessively abrasive surface (PASS).
No unnecessary features which add signicantly to overall mass (PASS).
Lanyard end terminated with a loop, for connection to harness and fall
arrest system (PASS).
Lanyard meets static strength requirment (PASS).
15kN sustained for 3 minutes without release (PASS).
When tested with a test mass of 140 kg,
the Arrest force <6.0kN, Arrest distance <2.0m (PASS).
Corrosion test in accordance with ISO 9227:1990-24 hours (PASS).
Result/Comment
100 Kg mass held
Breaking force <6kN
Breaking distance less than 2 mtr
100 Kg mass held
f= 4.5 kN (Textile) 3 mints
1
Result/Comment
_
* Micron can also
be used in horizontal
direction.
* It can be used where
the Anchorage point is
available at foot Level
also.
o
40max
Follow Step 1 & Step 2 to
use this equipment in
vertical condition.
