Raleigh™ Single Handle Kitchen Faucet,
Pull Out Spray, With Deckplate, Stainless Steel, 1.8 GPM
Mezcladora Raleigh™ para cocina de un solo maneral,
rociador extraíble, con placa protectora, acero inoxidable, 1.8 GPM
NSF/ANSI/CAN 61: Q ≤ 1
Exclusively Distributed By:
HD Supply
Atlanta, GA 30339
© 2022

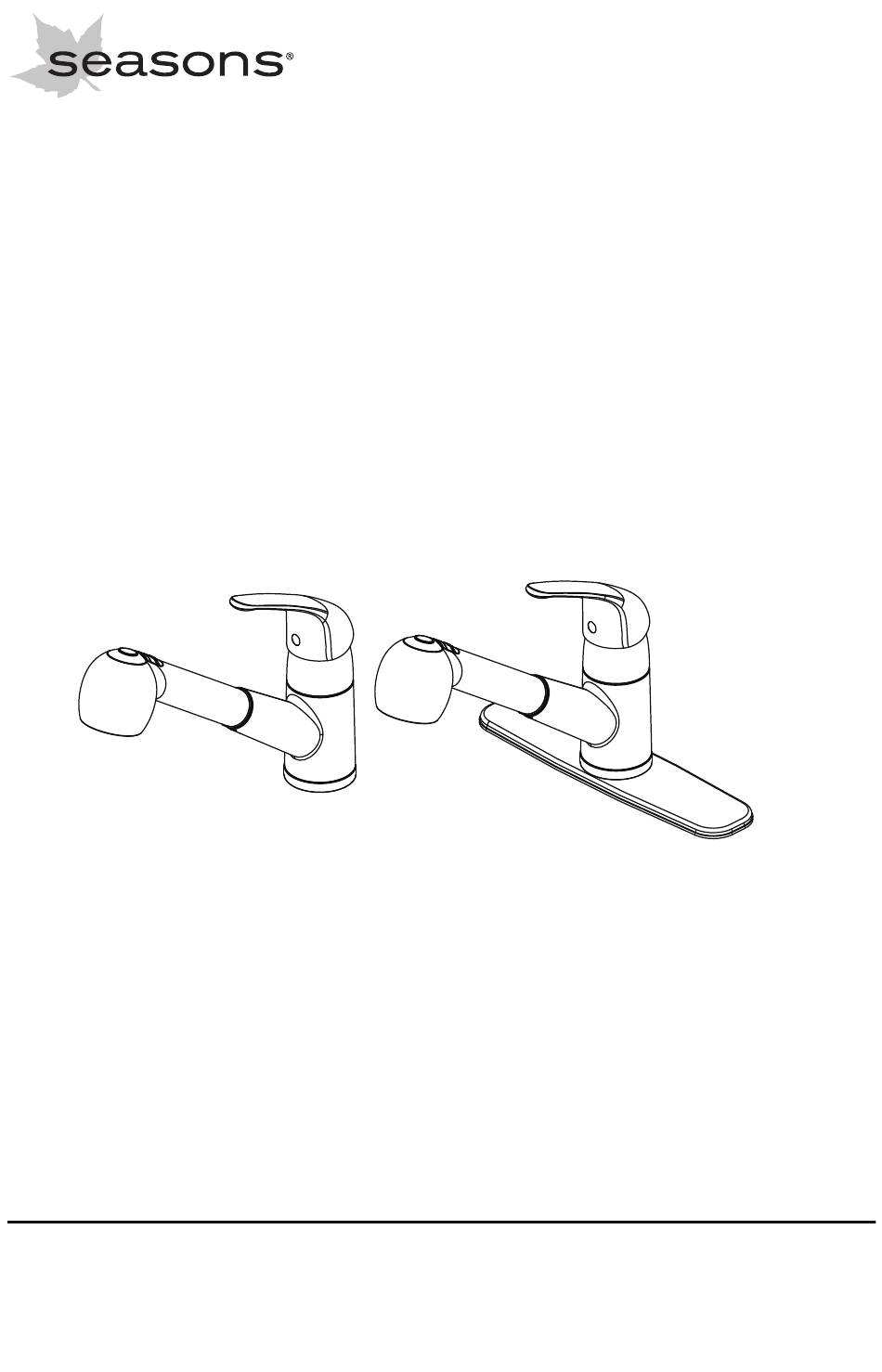

Without Deckplate
Sin Placa De Cubierta
With Deckplate
Con Placa De Cubierta
1
Part #: 211800
USN #: 320467846
Mfg #: 67222W-1008D2
To Reorder:
1-800-431-3000
hdsupplysolutions.com
Advertisement
Related Manuals for SeasonsComfort Raleigh 67222W-1008D2
Summary of Contents for SeasonsComfort Raleigh 67222W-1008D2
- Page 1 Part #: 211800 USN #: 320467846 Mfg #: 67222W-1008D2 Raleigh™ Single Handle Kitchen Faucet, Pull Out Spray, With Deckplate, Stainless Steel, 1.8 GPM Mezcladora Raleigh™ para cocina de un solo maneral, rociador extraíble, con placa protectora, acero inoxidable, 1.8 GPM Without Deckplate With Deckplate Sin Placa De Cubierta...
- Page 2 Preparation / Preparación Before beginning the assembly of this product, make sure all parts are present. Compare parts with the package contents list. If any part is missing or damaged, do not attempt to assemble the product. Contact customer service for replacement parts. Antes de comenzar el ensamblaje del producto, asegúrese de tener todas las piezas.
- Page 3 Assembly Instructions / Instrucciones de Ensamblaje Without Deckplate (optional): With Deckplate (optional): Shut off water supply at angle stop. Remove old faucet. Clean sink Align the hole in the gasket (E) and deckplate (D) with the mounting surface in preparation for new faucet. Before installing the new hole in the sink.
- Page 4 Assembly Instructions / Instrucciones de Ensamblaje Making the water supply connections： Install the weight clip (G) at the point of the hose marking “weight Use 1/2 in. I.P.S. faucet connections (2), or use supply line coupling here”. Insert the weight (F) onto the clip (G) by sliding it down onto nuts (3) (not included) with a 3/8 in.
- Page 5 Care and Cleaning / Cuidado y Limpieza □ To clean, wipe down with a damp cloth and dry with a towel. □ Para limpiar, usa un paño húmedo y seca con una toalla. Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will be voided. □...
