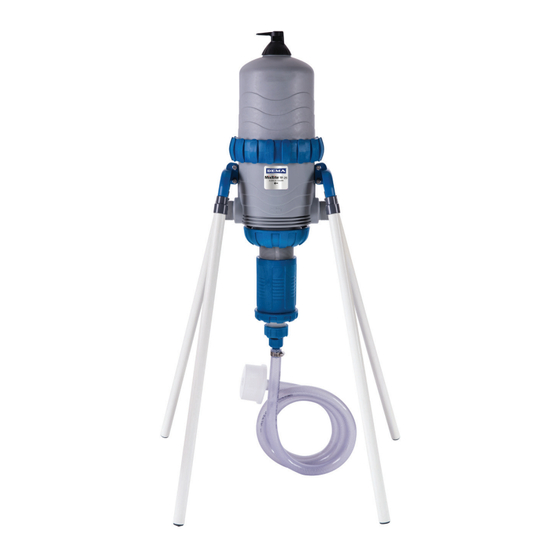

MixRite pumps from DEMA Engineering Company are water-driven proportional dosing pumps
engineered for precise additive injection directly into water or fluid lines. These units are versatile,
operating within a specified range of flow rates, and are available in models that offer either fixed or
variable injection rates. Constructed from durable engineered composite materials, MixRite pumps are
designed to withstand harsh environmental conditions and are resistant to chemicals and acids, ensuring
long-lasting performance.
Models
TF.25.001CL.PPAON/OFF
TF.25.002ON/OFF
TF.25.005ON/OFF
TECHNICAL DATA
MixRite Operational Conditions
Minimum Flow Rate
Maximum Flow Rate
Minimum Temperature
Maximum Temperature
Operation Pressure Range
I-1466 Rev-A ECO 49802
TF25 Series User Guide
Dosage Rate %
0.1-1%
0.3-2.5%
1-5.5%
9 GPM (34 LPM)
110 GPM (416 LPM)
39°F (4°C)
104°F (40°C)
14.7 to 120 PSI (1 Bar to 8 Bar)
ag.demaeng.com
MixRite Parts Book
11.12.2024
Tech Support
314.966.3533
demaeng.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DEMA MixRite TF.25.001CL.PPAON/OFF
Summary of Contents for DEMA MixRite TF.25.001CL.PPAON/OFF
- Page 1 TF25 Series User Guide MixRite pumps from DEMA Engineering Company are water-driven proportional dosing pumps engineered for precise additive injection directly into water or fluid lines. These units are versatile, operating within a specified range of flow rates, and are available in models that offer either fixed or variable injection rates.
- Page 2 TF25 Series User Guide TABLE OF CONTENTS Safety & Warnings Installation Maintenance Troubleshooting Warranty I-1466 Rev-- ECO 49802 10.28.2024 Tech Support ag.demaeng.com 314.966.3533 techsupport@demaeng.com...
- Page 3 TF25 Series User Guide SAFETY & WARNINGS Take additional safety measures appropriate to the liquid being pumped and the temperature of the water. The operator must wear appropriate personal protection equipment during any maintenance of the MixRite pump. An air leak, impurity, or chemical damage to a seal can interrupt the dosing function. It is recommended to periodically check that the solution is correctly drawn into the MixRite.
- Page 4 TF25 Series User Guide MIXRITE INSTALLATION When connecting a MixRite either to a public water supply or to its own water source, you must follow local plumbing and backflow regulations. Always use 120 mesh – 130 micron filter before the inlet of the unit. Ensure the water is flowing in accordance with the arrow molded into the body of the unit.
- Page 5 TF25 Series User Guide INSTALLATION & OPERATION Mounting MixRite TF Connecting suction tube MixRite bracket Phillips screws (x2) Adjusting dosage MixRite cover options On/Off cover I-1466 Rev-- ECO 49802 10.28.2024 Tech Support ag.demaeng.com 314.966.3533 techsupport@demaeng.com...
- Page 6 TF25 Series User Guide MAINTENANCE Regular maintenance will help extend the lifespan of your MixRite dosing pump. Lip Seals should be replaced periodically. Lip Seals are a normal wear item. Regularly clean the suction screen filter. If the pump is planned to be out of use for a long period of time, operate the pump for a few minutes with the suction tube immersed in a tank with clean water to remove fertilizer / chemical residues from the pump, preventing them from solidifying in the pump.
- Page 7 TF25 Series User Guide TROUBLESHOOTING Subject Check Solution Direction of arrow on the pump. Install the pump so that the arrow point in direction of water flow. Inlet and outlet valves. Open the valve. Inlet filter. Clean the filter. Make sure there is water pressure The pump does not work.
- Page 8 This warranty is extended only to the original buyer of DEMA products. If products are altered or repaired without prior approval of DEMA, this warranty will be void. Defective units or parts should be returned to theMixRite dealer from which they were purchased with transportation prepaid. If inspection shows them to be defective, they will be repaired or replaced without charge, F.O.B.
