QUICK START GUIDE
Thank you for purchasing the Hear Back OCTO 8-channel personal monitor mixer system!
Use this Quick Start Guide to setup quickly and easily. Refer to the User Guide for complete
instructions, available online at www.heartechnologies.com or scan the QR code above.
CONNECTING THE SYSTEM
1 Connect the appropriate input(s) as shown in the hook-up diagram.
2 Select the desired input using the front panel switch.
Connect Hear Back OCTO Mixers to the Hear Back OCTO Hub
3
Mixer Outputs using CAT6* or CAT5e cables.
4
Set all Mixer Channels and Master Volume levels to "Off"
(full counter-clock-wise position).
5
Connect the headphones, in-ear monitors, and/or line outputs
for connecting to wireless in-ear systems, powered monitors, or
other devices requiring line-level inputs.
6
Apply power to the Hub.

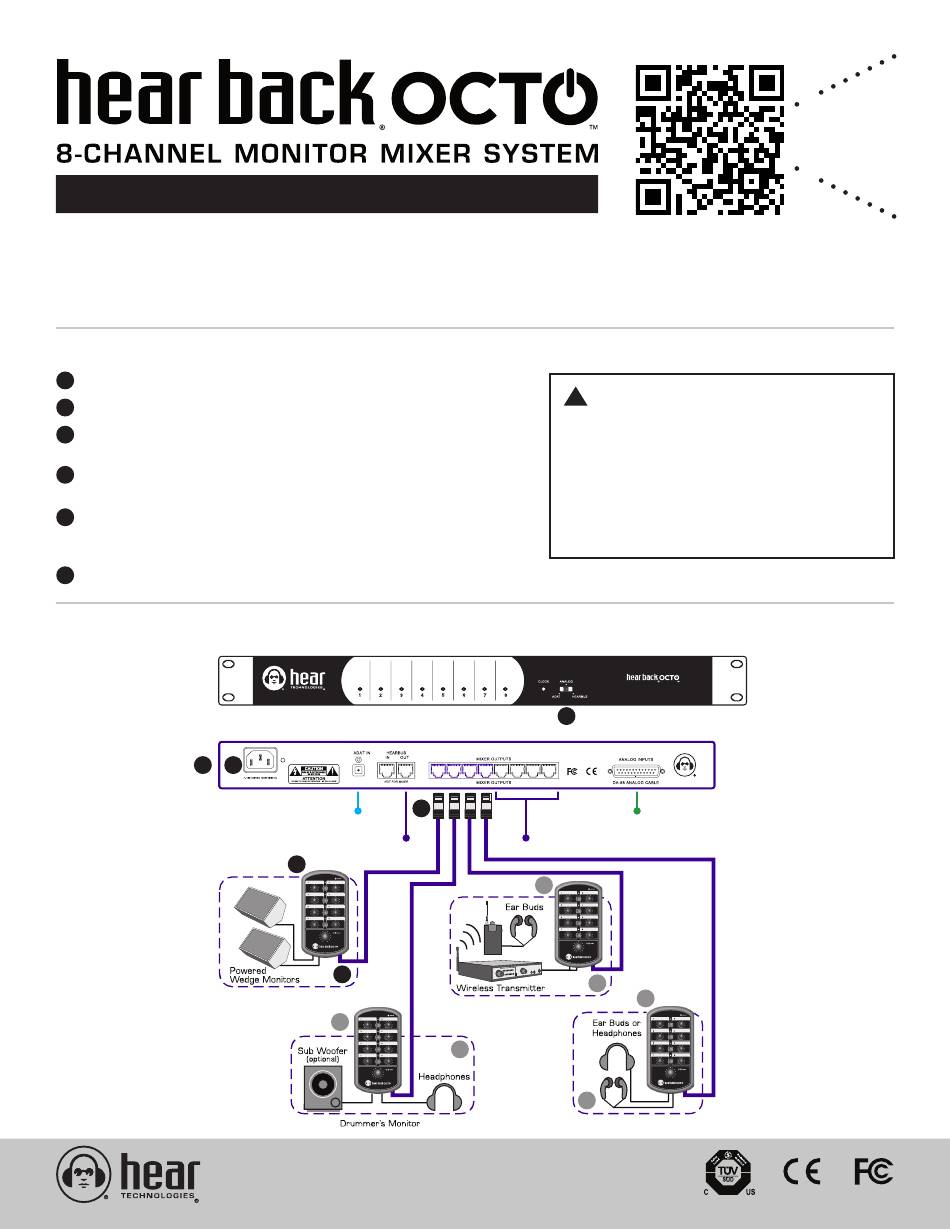

HOOK-UP DIAGRAM

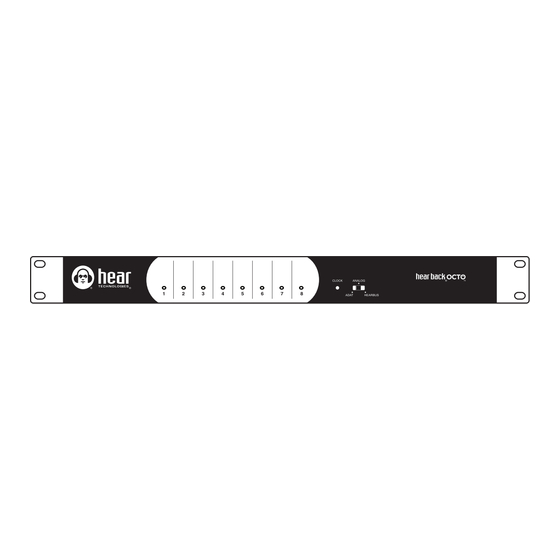

HUB FRONT PANEL
HUB REAR PANEL
1 6
Daisy-Chain Additional OCTO Hubs
*Cable complying with the National authorities (cable
with an outer jacket or sleeving rated VW-1 or better).
3
ADAT Optical Input
4
5
4
Hear Back OCTO is proudly designed & assembled
in the U.S.A. by musicians and audio engineers.
WARNING
!
• The Hear Back OCTO is capable of
driving most headphones to extreme
levels that can damage your HEARING!
• ALWAYS turn down the Mixer "Master"
volume down before putting on in-ear
headsets or headphones.
2
Connect Additional OCTO Mixers
4
5
5
5
FOR USER
Analog Inputs
4
SCAN
CODE
GUIDE
