Power
DMX Output Indicators
Network Status Indicators
for A & B Links: Red=ON,
Green=transmitting data
B: RJ45 Network connection
A: RJ45 Network
connection w/POE
Power On Indicator
Device identifier:
flashes to verify
identity

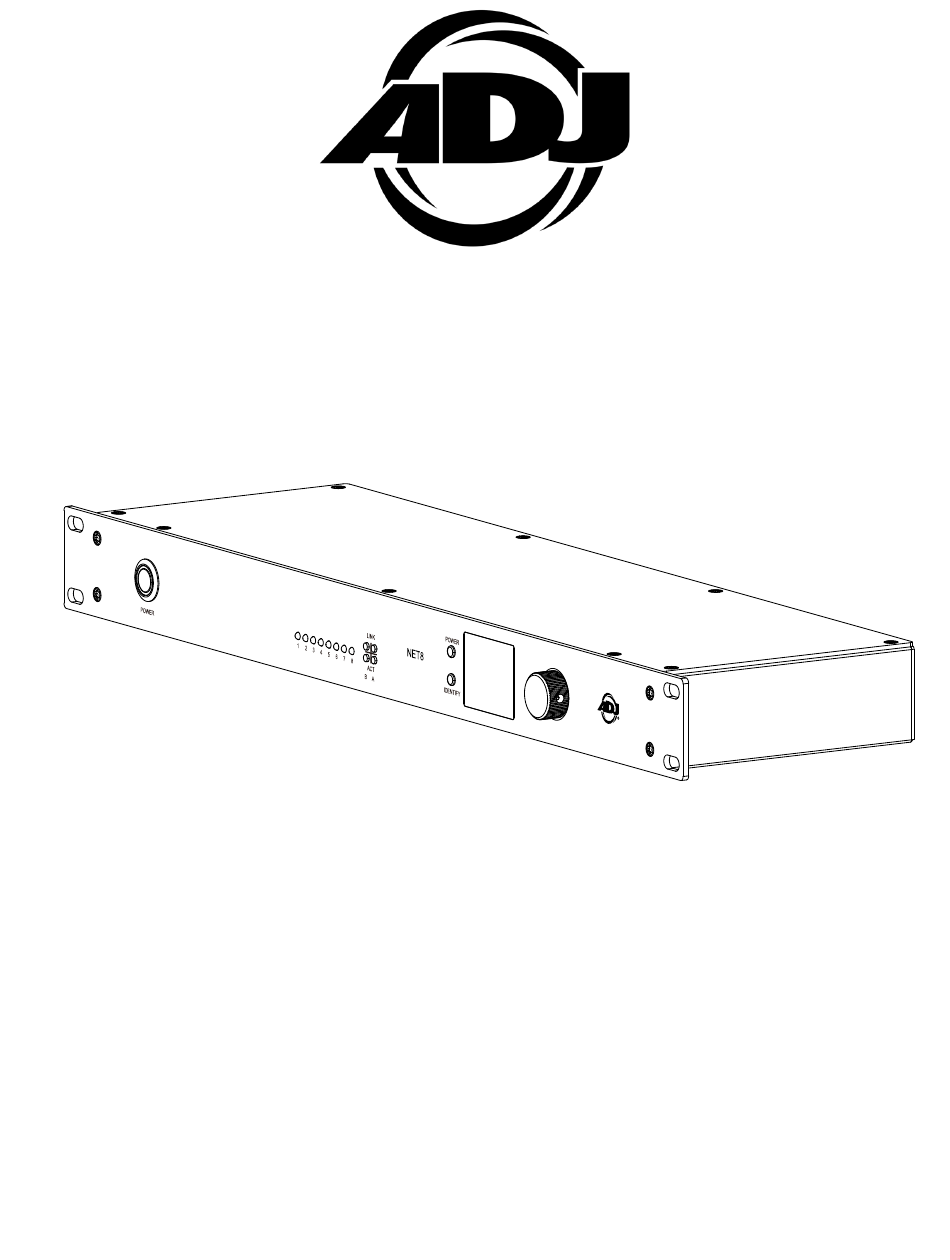

NET 8
User Manual
DMX Outputs: 1-8 Isolated DMX Outputs
Fuse: T1.25A/250V
Encoder Knob:
OLED
Turn to scroll,
Display
push-to-select
Advertisement
Related Manuals for ADJ NET 8
Summary of Contents for ADJ NET 8
- Page 1 Device identifier: OLED Turn to scroll, for A & B Links: Red=ON, flashes to verify Display push-to-select Green=transmitting data identity B: RJ45 Network connection NET 8 User Manual A: RJ45 Network DMX Outputs: 1-8 Isolated DMX Outputs connection w/POE Fuse: T1.25A/250V...
- Page 2 ©2024 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
- Page 3 C O N T E N T S General Information Limited Warranty Safety Guidelines Overview Rear Connections DMX Setup Installation Guidelines System Menu Web Configuration Maintenance Specifications Dimensions FCC Statement...
- Page 4 BOX CONTENTS 1.83M locking power cable CUSTOMER SUPPORT Contact ADJ Service for any product related service and support needs. Also visit forums.adj.com with questions, comments or suggestions. ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-2650 | Fax: 323-832-2941 | support@adj.com...
- Page 5 All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. No accessories should be shipped with the product.
- Page 6 This device is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. ADJ PRODUCTS, LLC. is not responsible for injury and/or damages resulting from the misuse of this device due to the disregard of the information printed in this manual.
- Page 7 O V E R V I E W Power DMX Output Indicators Power On Indicator Encoder Knob: Network Status Indicators Device identifier: OLED Turn to scroll, for A & B Links: Red=ON, flashes to verify Display push-to-select Green=transmitting data identity B: RJ45 Network connection A: RJ45 Network DMX Outputs: 1-8 Isolated DMX Outputs...
- Page 8 Note that the device uses a T1.25A/250V fuse. Damage resulting from incorrect connection is not covered under warranty. A cable with a NEMA 15-5P plug is provided for use with the NET 8 in the USA and Canada. This approved cable must be used in North America. POWER INPUT: AC 100-240V, 50/60Hz 0.6A...
- Page 9 (DATA + and DATA -). Insert this unit into the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior.
- Page 10 FOR MAXIMUM AMPS. RACK MOUNT INSTALLATION 1. Align the mounting holes of the NET 8 with the corresponding holes on the rack, making sure to position the device at the desired height. 2. Insert (4x) screws through the mounting holes of the NET 8 and securely tighten them.
- Page 11 S Y S T E M M E N U The Net 8 features an OLED display screen with an Encoder Knob, which can be used to easily adjust any device settings, turn to scroll, push-to-select. OPTIONS / VALUES (Default Settings in BOLD)
- Page 12 S Y S T E M M E N U OPTIONS / VALUES (Default Settings in BOLD) MAIN MENU Mode Input, Output, Off Protocol ArtNet, sACN Universe 1 - 32767 Port 1 From: 1 - 512 Range To: 1 - 512 Frame Rate 20Hz, 25Hz, 30Hz, 35Hz, 40Hz Enable, Disable...
- Page 13 W E B C O N F I G U R AT I O N DHCP mode When setting up the DHCP Mode, the controller will display its WEB IP address. Note that the following is an example WEB IP address only, and will be different. - - - - - - D D H H C C P P - - - - - - - - - - - - S S t t a a t t i i c c - - - - - - - - - - - - D D H H C C P P - - - - - -...
- Page 14 W E B C O N F I G U R AT I O N Static mode When setting up the Static Mode, the controller will display its WEB IP address. Note that the following is an example WEB IP address only, and will be different. - - - - - - D D H H C C P P - - - - - - - - - - - - S S t t a a t t i i c c - - - - - - - - - - - - D D H H C C P P - - - - - -...
- Page 15 Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer.
- Page 16 S P E C I F I C AT I O N S Features: ArtNet / sACN /DMX, 8 Port Node Line Voltage or Power over Ethernet (PoE) powered DHCP or Static IP Address 1.7”LCD Display Configurable from unit menu or web browser Protocols: DMX512, RDM, Artnet, sACN Connections:...
- Page 17 D I M E N S I O N D R AW I N G S Drawings not to scale...
- Page 18 O P T I O N A L A C C E S S O R I E S ORDER CODE ITEM NET800 1321000086 NET 8 AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable Additional Cable Lengths Available FCC STATEMENT This device complies with Part 15 of the FCC Rules.
