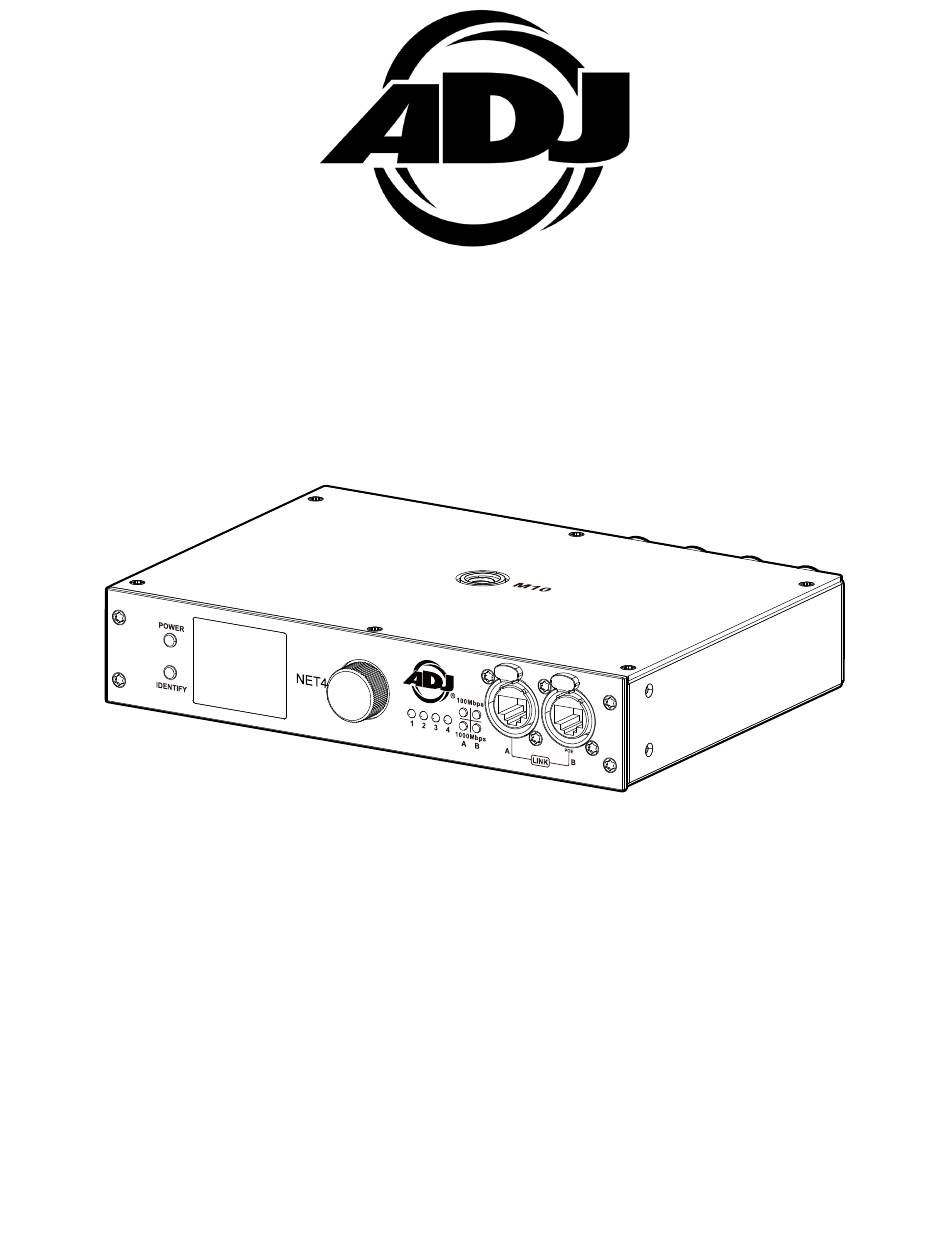

- Page 1 NET 4 User Manual...
- Page 2 ©2024 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
-
Page 3: Table Of Contents
C O N T E N T S General Information Limited Warranty Safety Guidelines Overview Rear Connections DMX Setup Installation Guidelines System Menu DMX Trigger Chart Web Configuration Maintenance Specifications Dimensions Drawings Optional Accessories | FCC Statement... -
Page 4: General Information
BOX CONTENTS Omega Brackets 1.83M locking power cable CUSTOMER SUPPORT Contact ADJ Service for any product related service and support needs. Also visit forums.adj.com with questions, comments or suggestions. ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-2650 | Fax: 323-832-2941 | support@adj.com... -
Page 5: Limited Warranty
All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. No accessories should be shipped with the product. -
Page 6: Safety Guidelines
This device is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. ADJ PRODUCTS, LLC. is not responsible for injury and/or damages resulting from the misuse of this device due to the disregard of the information printed in this manual. -
Page 7: Overview
O V E R V I E W Encoder Knob: Power On Turn to scroll, A: RJ45 Network B: RJ45 Network connection w/POE Indicator push-to-select connection Device identifier: OLED DMX Output Network Status Indicators flashes to verify Display for A & B Links: Red=ON, Indicators identity Green=transmitting data... -
Page 8: Rear Connections
The Ethernet cable is connected on the back of the router into the port labeled A or B. Devices can be daisy chained, but it is recommended not to exceed 10 NET 4 devices in one chain. Although this is an Locking RJ45 Ethernet connector, and the use of Locking RJ45 Ethernet cables is recommended, any RJ45 connector is suitable. -
Page 9: Dmx Setup
(DATA + and DATA -). Insert this unit into the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior. -
Page 10: Installation Guidelines
CONSUMPTION OF OTHER MODEL DEVICES MAY EXCEED THE MAXIMUM POWER OUTPUT OF THIS DEVICE. CHECK SILK SCREEN FOR MAXIMUM AMPS. THE NET 4 IS DESIGNED TO BE TRUSS MOUNTED OR RACK-MOUNTED; HOWEVER, IT CAN BE USED STAND-ALONE, WHERE THE DEVICE MUST SIT ON A FIRM FLAT SURFACE. - Page 11 1. Slide the Net 4 units into the rear of the Rack Shelf. 2. Align the mounting holes on the bottom of each Net 4 with the corresponding holes on the Rack Shelf, and secure each unit to the Rack Shelf with (4x) M4x6 screws.
- Page 12 I N S TA L L AT I O N G U I D E L I N E S ARIA RACK SHELF (SOLD SEPARATELY): 3. Align the vertical mounting holes of the Aria Rack Shelf with the corresponding vertical holes on the rack, making sure to position the device at the desired height.
- Page 13 I N S TA L L AT I O N G U I D E L I N E S 35MM DIN RAIL ADAPTERS (SOLD SEPARATELY): 1. Secure 2x 35mm DIN Rail Adapters Rear to the bottom of the NET 4 using (2x) M4x6 screws. 35mm DIN Rail Adapter Bottom Front 2.
- Page 14 I N S TA L L AT I O N G U I D E L I N E S TRUSS MOUNT INSTALLATION Insert 18.8 steel M10x20mm or M12x25mm bolt (not included) through the respective mounting hole of the clamp (not included), and then thread it into the matching 10M hole (shown below left), or 12M hole (shown below right).
-
Page 15: System Menu
S Y S T E M M E N U The Net 4 features an OLED display screen with an Encoder Knob, which can be used to easily adjust any device settings, turn to scroll, push-to-select. MAIN MENU OPTIONS / VALUES (Default Settings in BOLD) - Page 16 S Y S T E M M E N U MAIN MENU OPTIONS / VALUES (Default Settings in BOLD) Input, Output, Off Mode ArtNet, sACN Protocol 1 - 32767 Universe From: 1 - 512 Port 1 Range To: 1 - 512 20Hz, 25Hz, 30Hz, 35Hz, 40Hz Frame Rate Enable, Disable...
-
Page 17: Dmx Trigger Chart
D M X T R I G G E R C H A R T DMX Channel DMX Values Event Selection 0-9 = OFF 10-19 = Event 1 20-29 = Event 2 30-39 = Evnet 3 40-49 = Evnet 4 Starting DMX Channel (1-510) 50-59 = Evnet 5 60-69 = Evnet 6... -
Page 18: Web Configuration
W E B C O N F I G U R AT I O N DHCP mode When setting up the DHCP Mode, the controller will display its WEB IP address. Note that the following is an example WEB IP address only, and will be different. - - - - - - D D H H C C P P - - - - - - - - - - - - S S t t a a t t i i c c - - - - - - - - - - - - D D H H C C P P - - - - - -... - Page 19 W E B C O N F I G U R AT I O N Static mode When setting up the Static Mode, the controller will display its WEB IP address. Note that the following is an example WEB IP address only, and will be different. - - - - - - D D H H C C P P - - - - - - - - - - - - S S t t a a t t i i c c - - - - - - - - - - - - D D H H C C P P - - - - - -...
-
Page 20: Maintenance
Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer. -
Page 21: Specifications
S P E C I F I C AT I O N S Features: ArtNet / sACN /DMX, 4 Port Node Line Voltage or Power over Ethernet (PoE) powered DHCP or Static IP Address 1.7”LCD Display Configurable from unit menu or web browser Protocols: DMX512, RDM, Artnet, sACN Physical:... -
Page 22: Dimensions Drawings
D I M E N S I O N D R AW I N G S Drawings not to scale M10x20 8.5in. [215.3mm]... -
Page 23: Optional Accessories | Fcc Statement
O P T I O N A L A C C E S S O R I E S ORDER CODE ITEM NET400 1321000085 NET 4 AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable Additional Cable Lengths Available FCC STATEMENT This device complies with Part 15 of the FCC Rules.
