THERMOSTATIC

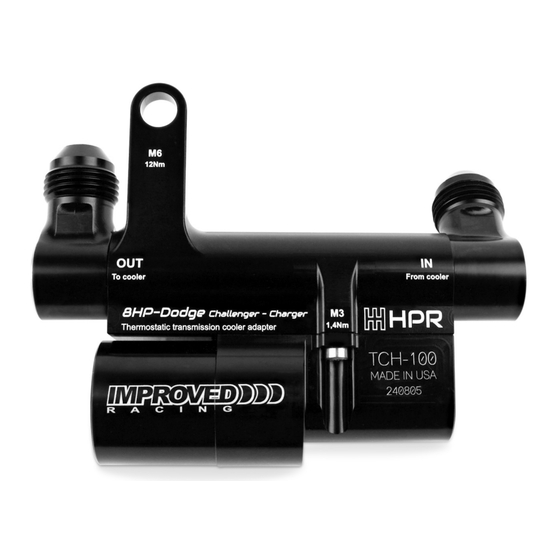

ADAPTER FOR DODGE CHALLENGER
Copyright © 2008-2024 Improved Racing Products, LLC. All rights reserved.
Rev 241018
/ CHARGER 8HP
PART NO. TCH-101-T2
MADE IN USA
Important: Read these instructions
in their entirety before installation.
For contact information, visit www.improvedracing.com
TRANSMISSION
Advertisement
Related Manuals for Improved Racing TCH-101-T2
Summary of Contents for Improved Racing TCH-101-T2
- Page 1 TRANSMISSION ADAPTER FOR DODGE CHALLENGER / CHARGER 8HP PART NO. TCH-101-T2 MADE IN USA Important: Read these instructions in their entirety before installation. For contact information, visit www.improvedracing.com Copyright © 2008-2024 Improved Racing Products, LLC. All rights reserved. Rev 241018...
- Page 2 PARTS CHECK • Visit the website product page to confirm vehicle application and confirm all parts have arrived by checking the images: INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN WARNING: NEVER work under a vehicle supported only by a jack. WARNING: NEVER cap/plug the oil ports on the adapter. WARNING: Capped/plugged ports block flow in the transmission and may result in catastrophic damage.
- Page 3 PREPARE THE TRANSMISSION PORTS 1. Remove the original transmission coolers lines, or dust covers based on what is applicable for your installation. 2. Inspect both ports to confirm they have no corrosion, dirt or scratches. PREPARE THE TRANSMISSION ADAPTER 1. Install the thin metal washers onto the HPR tube boss features. 2.
- Page 4 3. Using a wrench, rotate the nut to tighten. Turn the nut the amount shown on the chart. Mark a line on the nut Misalignment of the mark and adapter before torquing. shows the amount which the nut was tightened. Figure 1 - Marking the Fittings for Correct Tightening Alternate Tightening Method Two 3.
