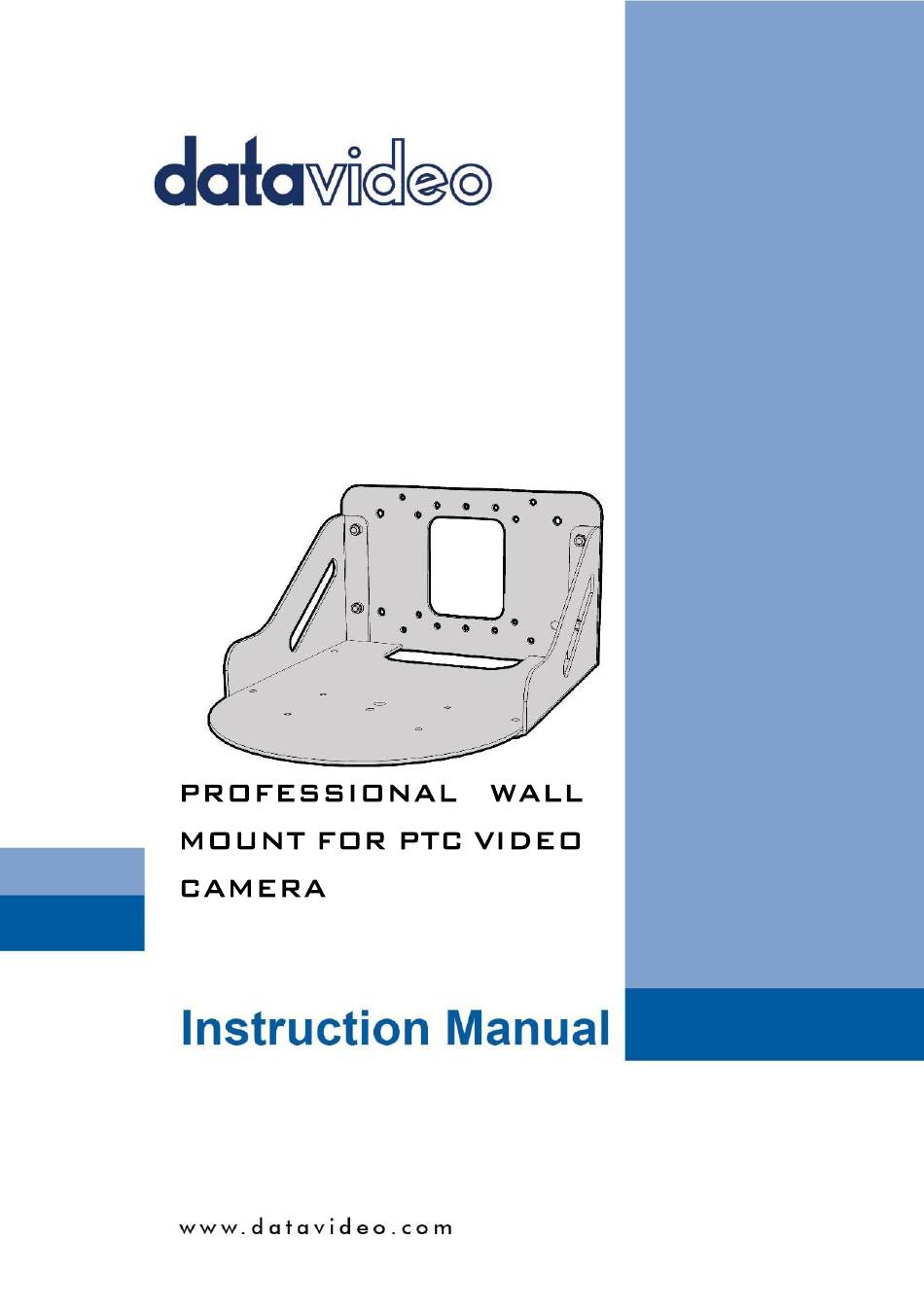

- Page 1 WM-1...
- Page 2 Service and Support ................15 Disclaimer of Product & Services The information offered in this instruction manual is intended as a guide only. At all times, Datavideo Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this manual, from time to time, may not be correct or may be incomplete.
- Page 3 AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company. 8. Do not allow anything to rest on the power cord. Do not locate this unit where the power cord will be walked on, rolled over, or otherwise stressed.
- Page 4 When the product exhibits a distinct change in performance, indicating a need for service. Warranty Standard Warranty Datavideo equipment are guaranteed against any manufacturing defects for one year from the date of purchase. The original purchase invoice or other documentary evidence should be supplied ...
- Page 5 DVD drives, Hard Drive, Solid State Drive, SD Card, USB Thumb Drive, Lighting, Camera module, PCIe Card are covered for 1 year. The three-year warranty must be registered on Datavideo's official website or with your local Datavideo office or one of its authorized distributors within 30 days of purchase.
- Page 6 Disposal For EU Customers only - WEEE Marking This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.
- Page 7 WM-1 Wall Mount Kit for Datavideo HD/SD PTZ Camera Series Introduction The WM-1 is a wall mount kit which is designed for Datavideo HD/SD PTZ Camera series including PTC-150/PTC-150T/PTC-200/PTC-200T. Please follow following steps for assembling the WM-1 wall mount. This user manual takes PTC-150 as an example.
- Page 8 Step 2. Please attach the right side plate C to the bracket’s two mounted screws on the right side as shown as diagram above. Step 3. Please attach the left side plate D to the bracket’s two mounted screws on the left side as shown as diagram above.
- Page 9 How to install Datavideo PTC-150 to WM-1 Please follow following steps to install the PTC-150 to WM-1. Ceiling Bracket A Ceiling Bracket B Figure 2. Install the PTC-150 to WM-1 Step 1. Please install the ceiling bracket A to the base of the PTC-150 as shown as the diagram above.
- Page 10 Figure 3. Screw 3 screws to ceiling Bracket A Step 3. Mount the PTC-150 to the ceiling bracket B as shown as the Figure 2. Step 4. After the PTC-150 is mounted, please screw 3 screws into the three screw holes in the order of 1, 2, and 3 to secure the PTC-150 to WM-1.
- Page 11 mounted to metal studs, unless an installation professional deems they have been adequately reinforced and will support 4 times the combined weight of Equipment and Wall Mount. Please use only the bolts supplied with the unit or bolts of the correct size, making sure the hardware used is tightened properly for a secure installation.
- Page 12 Dimensions Unit: mm...
- Page 13 Unit: mm...
- Page 14 Unit: mm...
- Page 15 Unit: mm...
- Page 16 Datavideo Technologies Co., Ltd. All rights reserved 2020 Jul.-13.2020 Ver:E3...
