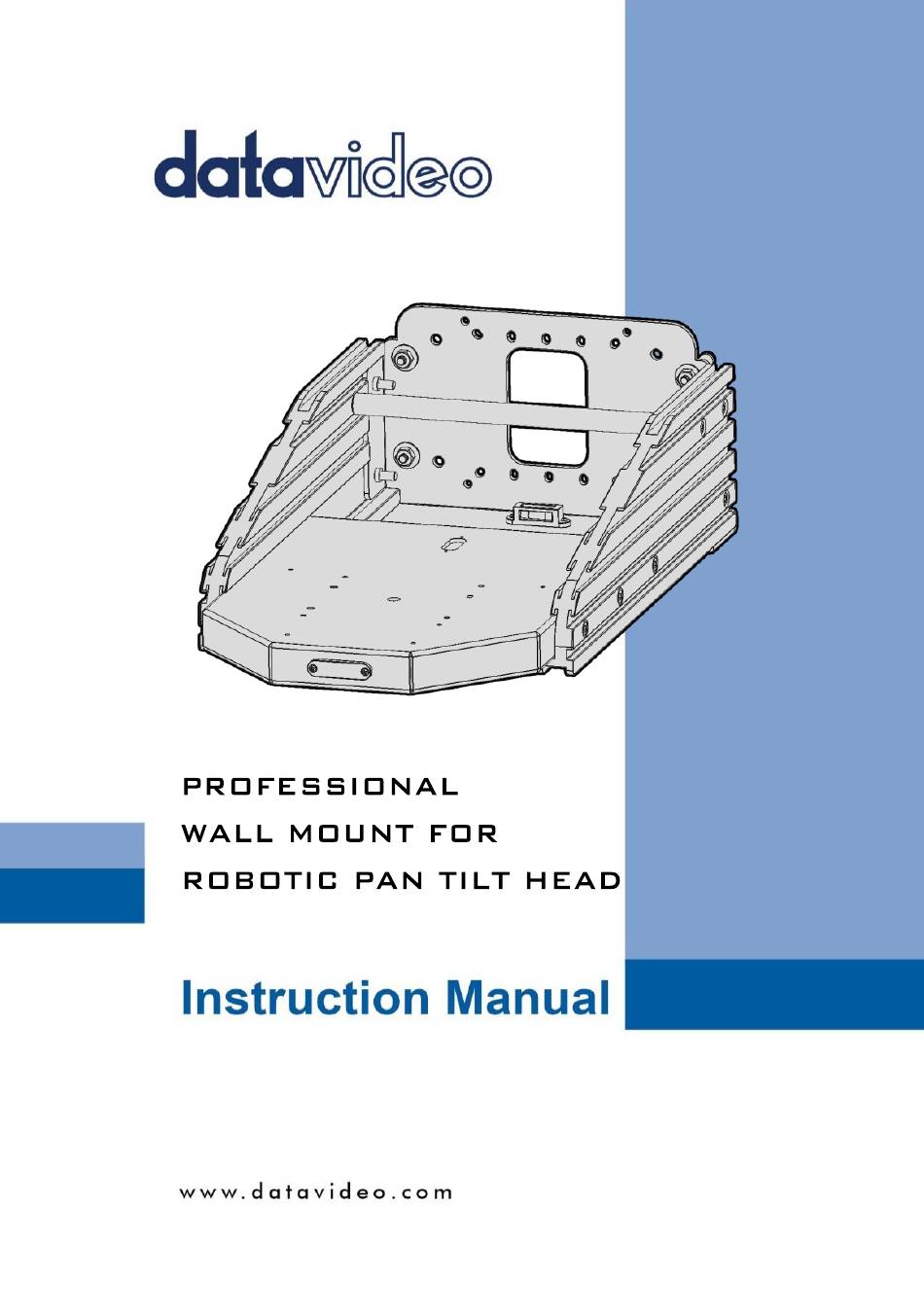

Page 1 WM-11...
Page 2: Table Of Contents
Disclaimer of Product & Services The information offered in this instruction manual is intended as a guide only. At all times, Datavideo Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this manual, from time to time, may not be correct or may be incomplete.
Page 3: Warranty
Warranty Standard Warranty  Datavideo equipment is guaranteed against any manufacturing defects for one year from the date of purchase.  The original purchase invoice or other documentary evidence should be supplied at the time of any request for repair under warranty.
Page 4: Three Year Warranty
Non-PCIe Card and third party provided PC components are covered for 1 year.  The three-year warranty must be registered on Datavideo's official website or with your local Datavideo office or one of its authorized distributors within 30 days of purchase. Disposal...
Page 5: Introduction
The assembled mount can support up to a 10 Kg load. Note: WM-11 is designed for PTR series of robotic pan tilt heads and PTC series of PTZ cameras.
Page 6: Procedure
2. On the surface where the WM-11 is to be mounted, drill four holes spaced according to the dimensions indicated in the diagram below. Then follow the procedure in the next section to assemble and install the WM-11. Procedure The diagram below is an exploded-view drawing of WM-11, and the numbers correspond to the respective installation steps.
Page 7 1. First mount a bubble level meter to the wall plate using two M2.5 screws. Align the wall plate with the four holes drilled in Pre-Work then use four expansion bolts to secure the wall plate. See the diagram below. Please note that you can use the bubble level meter to make sure that the wall plate is properly aligned.
Page 8 2. Assemble the left bracket to the wall plate with two M5x20 nickel plated hex socket cap screws as shown in the diagram below. 3. Assemble the right bracket to the wall plate with two M5x20 nickel plated hex socket cap screws as shown in the diagram below.
Page 9 4. Place the round rod in between the left and right brackets then secure it in position by fastening two M5x20 nickel plated hex socket cap screws to the respective holes on the brackets as shown in the diagram below. 5.
Page 10 you can make sure the base plate is properly aligned, i.e. the bubble is at the center. The inner rails on the right and left brackets should allow you to move the base plate back and forth. Note: The base plate may be inserted in an upright or upside down position.
Page 11: Installing Ptr-10/10T
Installing PTR-10/10T To mount the PTR-10/10T to the WM-11, first place it on the base plate of the WM-11 such that the four screw holes at the bottom of the PTR-10/10T base are aligned with the screw holes found in the base plate as indicated in the diagram below.
Page 12 If after installation, the PTR-10/10T vibrates, you may enhance the installation by securing the base with four M3 x 8mm screws. The additional screw holes are depicted in the diagram below.
Page 13: Installing Ptc-150
Note: The ceiling bracket and four pieces of the M4 screws are standard accessories of PTC-150. To mount the PTC-150 on the WM-11, use four M4 screws to secure each of the upper and lower plates of the ceiling bracket to the base plate of WM-11 and bottom of the PTC-150 respectively.
Page 14 Mount the PTC-150 to the WM-11 as shown in the diagram below.
Page 15: Frequently Asked Questions
Frequently Asked Questions This section describes problems that you may encounter while using WM-11. See related items for suggested solutions. If problem still exists, please contact your distributor or the service center. No. Problems Solutions PTR-10/10T vibrates after If after installation, the PTR- installation.
Page 16: Dimensions And Weight
Dimensions and Weight Unit: mm Weight: 3.95 Kg (8.70 lb) Maximum load: 50 Kg...
Page 17: Specifications
Specifications Model No. WM-11 Name Professional Wall Mount for Robotic Pan Tilt Head Weight 4 kg Dimensions 424 x 230 x 125 mm Max. Load 50 kg Applicable PTR-10 series Products PTC-140 series PTC-150 series PTC-280 series PTC-300 series...
Page 18 Notes...
Page 19 Notes...
