AMS2000 Manual
Gas mass flow meter
Integrated mass flow and temperature measurement
Good repeatability
Supports multiple gas measurements
Standard Modbus RTU communication
Multiple ranges, from 0~50mL/minto 0~500L/min
LCD screen display (can support four display direction settings up, down, left, and right)
9~24V DC power supply
AMS2000 is based on the principle of thermal measurement, combined with the self-developed MEMS flow
sensor chip, to create an excellent performance, stable and reliable gas mass flowmeter. The product calculates
the mass flow rate of the measured gas by measuring the resistance change, and has the advantages of intuitive,
accurate, stable, high, and low temperature resistance, good linearity, fast response time, etc. The interior is
equipped with an LCD display for reading display, which can display instantaneous flow and cumulative flow,
and the screen display content can be rotated 90°to adapt to different installation angles of users.
The series has a variety of models, covering a variety of ranges, suitable for a wide range of scenarios. Every
product is rigorously tested and calibrated before leaving the factory to ensure a high-quality delivery.
Application scope
AMS2000 is suitable for mass flow monitoring of dry, clean and non- corrosive gases (except
flammable and explosive gases) such as air, nitrogen, argon, carbon dioxide, and oxygen. It has been
widely used in university scientific research, fire protection, environmental monitoring, tobacco, smart
agriculture, food, medicine and other industries.
www.aosong.com

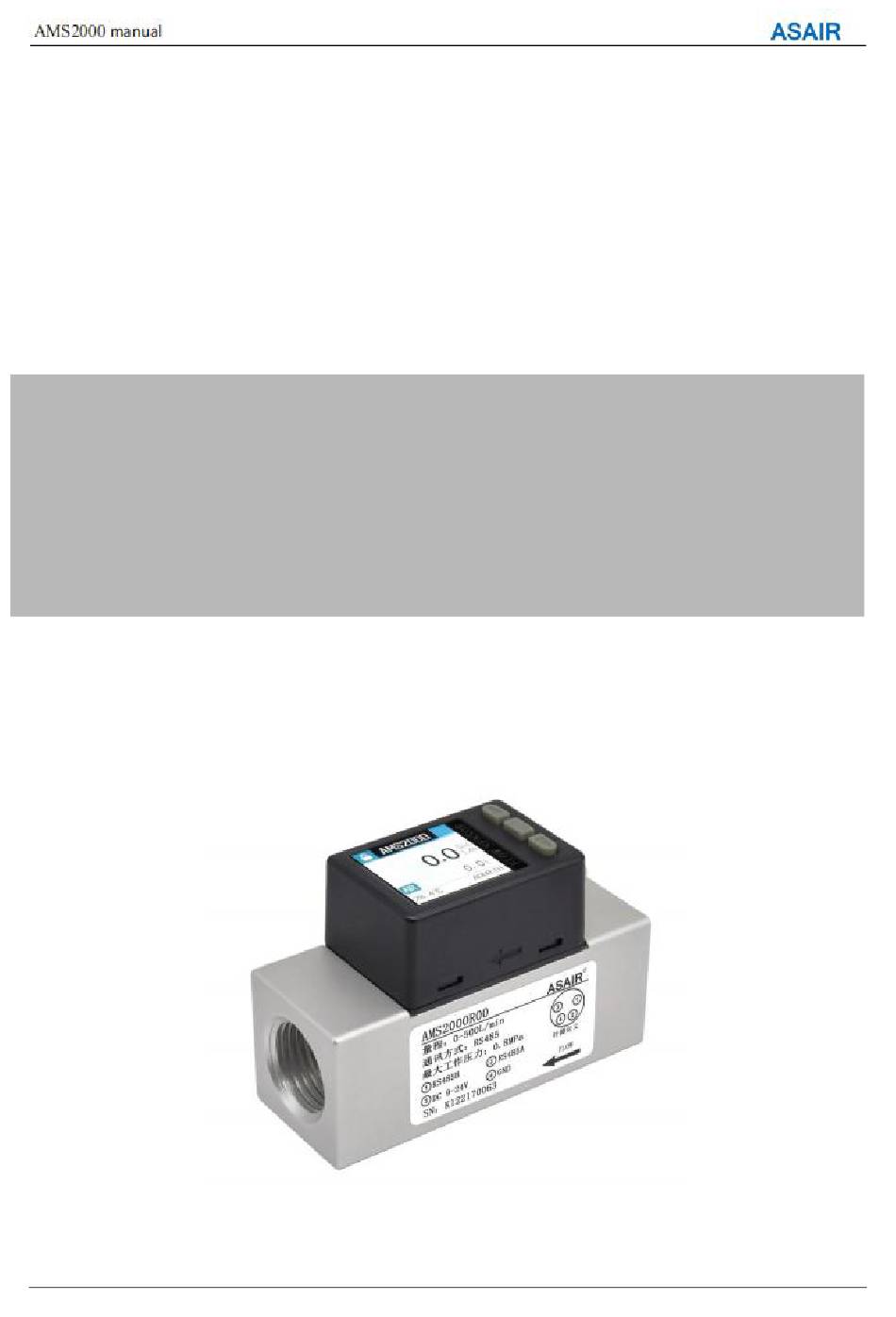

Figure 1. AMS2000 product appearance
March 2023
1 / 16
Advertisement
Related Manuals for ASAIR AMS2000 Series
Summary of Contents for ASAIR AMS2000 Series
- Page 1 AMS2000 Manual Gas mass flow meter Integrated mass flow and temperature measurement Good repeatability Supports multiple gas measurements Standard Modbus RTU communication Multiple ranges, from 0~50mL/minto 0~500L/min LCD screen display (can support four display direction settings up, down, left, and right) ...
- Page 2 Appearance structure and interface definition 1.1 Structure appearance Figure 2 shows the appearance structure of AMS 2 000 , including sensor air duct and interactive interface . The interactive interface includes an LCD display and operation buttons. The LCD displays the flow meter Modbus communication address , gas temperature , cumulative flow rate and instantaneous flow rate.
- Page 3 1.3 AMS2000 pinout definition AMS 2000 is an M8 four-core aircraft carrier header lead wire. The length of the lead wire is about 1 m. The material is UL2464. There are 4 wires in total. The definition is as shown in Table 2. The actual picture is shown in Figure 4.
- Page 4 2. AMS2000 technical indicators and basic information Table 3. AMS 2000 model and range comparison table Mechanical Inlet /outlet Measuring Display unit weight model interface interface inner range specifications diameter AMS2 000R About 0 ～ 500L /min 203g AMS2000R0 RC1/2 15mm 0 ～...
- Page 5 3.1 Main dimensions of AMS2000 products AMS2000 series are the same, but the specifications of the air inlet and outlet are different. See Table 3. The specific size drawings of each model are shown in Figure 5 , Figure 6 , and Figure 7 .
- Page 6 (Unit: mm, unspecified tolerance: ±0.2 mm) Figure 6. Dimensional drawing of AMS2000R03 and AMS2000R04 (Unit: mm, unspecified tolerance: ±0.2 mm) Figure 7. Dimensional drawings of AMS2000R05, AMS2000R06, AMS2000R07, AMS2000R08, and AMS2000R09 3.2 Piping method The AMS2000 piping method is shown in Figure 8. 3.2.1 6 / 16 www.aosong.com...
- Page 7 Figure 8. Piping diagram For the air pipe connected to the AMS2000 air inlet interface, please reserve a straight pipe section that is greater than or equal to 10 times the inner diameter of the air inlet interface, and the inner diameter of the straight pipe must be greater than or equal to the inner diameter of the air inlet interface, otherwise the accuracy may deviate by 2% FS or more.
- Page 8 4. Product communication protocol AMS2000 gas mass flow meter is RS485 communication , and the communication parameters are shown in Table 5. Table 5. RS48 5 communication parameters Communication parameters describe Protocol format 4800/9600/19200/115200bps Communication rate 1bit start bit data bits 8 bits Stop bi 1bit...
- Page 9 Table 6. Modbus RTU communication register definition (AMS2000R00~R06) Registe Read and functi multi Register Ranges Remark write information Example: 157.8L/min instantaneous 0x0000 read only 0 ~ 65535 0x062a traffic Cumulative Example : 0x0001 read only 0 ~ 65535 Flow (high 16 123456789.5L bits) High bit: 0 x 4996...
- Page 10 Table 7. Modbus RTU communication register definition (AMS2000R07) Register Read and functi multi Register Ranges Remark write information Example: 1. 57L /min instantaneous 0x0000 read only 0 ~ 65535 0x0 09D traffic Cumulative Flow Example : 0x0001 read only 0 ~ 65535 (high 16 bits) 123456789.5L High bit: 0 x 4996...
- Page 11 Table 8. Modbus RTU communication register definition (AMS2000R08~R09) Registe Read and functi multi Register Ranges Remark write information Example: 157.8 sccm instantaneous 0x0000 read only 0 ~ 65535 0x062a traffic Cumulative Flow Example : 123456789.5 0x0001 read only 0 ~ 65535 (high 16 bits) High bit: 0 x 4996 Cumulative Flow...
- Page 12 Take the operation on AMS2000R00 as an example, as follows. the host reads the instantaneous traffic value of AMS2000R00 (the default slave address of the device is 0x01 ) , the host sends a command to AMS2000R00 . The data is 01 03 00 00 00 01 84 0A. The format is shown in Table 9.
- Page 13 data input 0002 Write data 0002 1805 CRC code CRC code is used for verification C language code to calculate the CRC code is as follows: // *ptr communication sends or receives data byte array, // len is the length of data bytes sent or received (excluding CRC code) //Return the calculation result of CRC code, high byte first unsigned int CRC16(unsigned char ptr,unsigned char...
- Page 14 Figure 10. Screen icon introduction (AMS2000R07) ①: Lock screen icon; ②: 485 communication logo; ③: Traffic alarm status; ④: Instantaneous traffic; ⑤: Gas type; ⑥: Cumulative flow rate; ⑦: Gas temperature in the pipe; ⑧: 485 correspondence address Figure 11. Screen icon introduction (AMS2000R08~R09) ①: Lock screen icon;...
- Page 15 AS AIR AMS2000 manual Table 12 . Function introduction Secondary Function A menu Third level menu Level 4 menu menu AIR, N 2 , Ar, CO 2 and Fluid Select the type of gas to be O 2 gases are measured selection available...
- Page 16 AS AIR AMS2000 manual 6. packing list Table 13. Packing list quantity name AMS200 0 gas mass flow meter 1 set AMS2000 pinout 1 item 1 serving calibration certificate Certificate 1 piece 7. Exception handling Table 1 4 . Exception handling Fault Troubleshooting /treatment measures cause of issue...
- Page 17 This manual is subject to change without prior notice. The final interpretation right of this product belongs to Guangzhou Aosong Electronics Co., Ltd. Copyright © 2023 , ASAIR® 17 / 16 www.aosong.com March 2023...
