ALTAI M360-X Quick Setup Manual

Industrial dual-band wi-fi 6 cpe/ap
Hide thumbs

Advertisement

Quick Links

Download this manual
Altai M360-X
Industrial Dual-Band Wi-Fi 6 CPE/AP
_______________________________________________________________________________________________________
Quick Setup Guide
Version 1.0
Altai Technologies Ltd. All rights reserved
Altai Technologies Ltd. All rights reserved
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the M360-X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ALTAI M360-X

Summary of Contents for ALTAI M360-X

  • Page 1 Altai M360-X Industrial Dual-Band Wi-Fi 6 CPE/AP _______________________________________________________________________________________________________ Quick Setup Guide Version 1.0 Altai Technologies Ltd. All rights reserved Altai Technologies Ltd. All rights reserved...

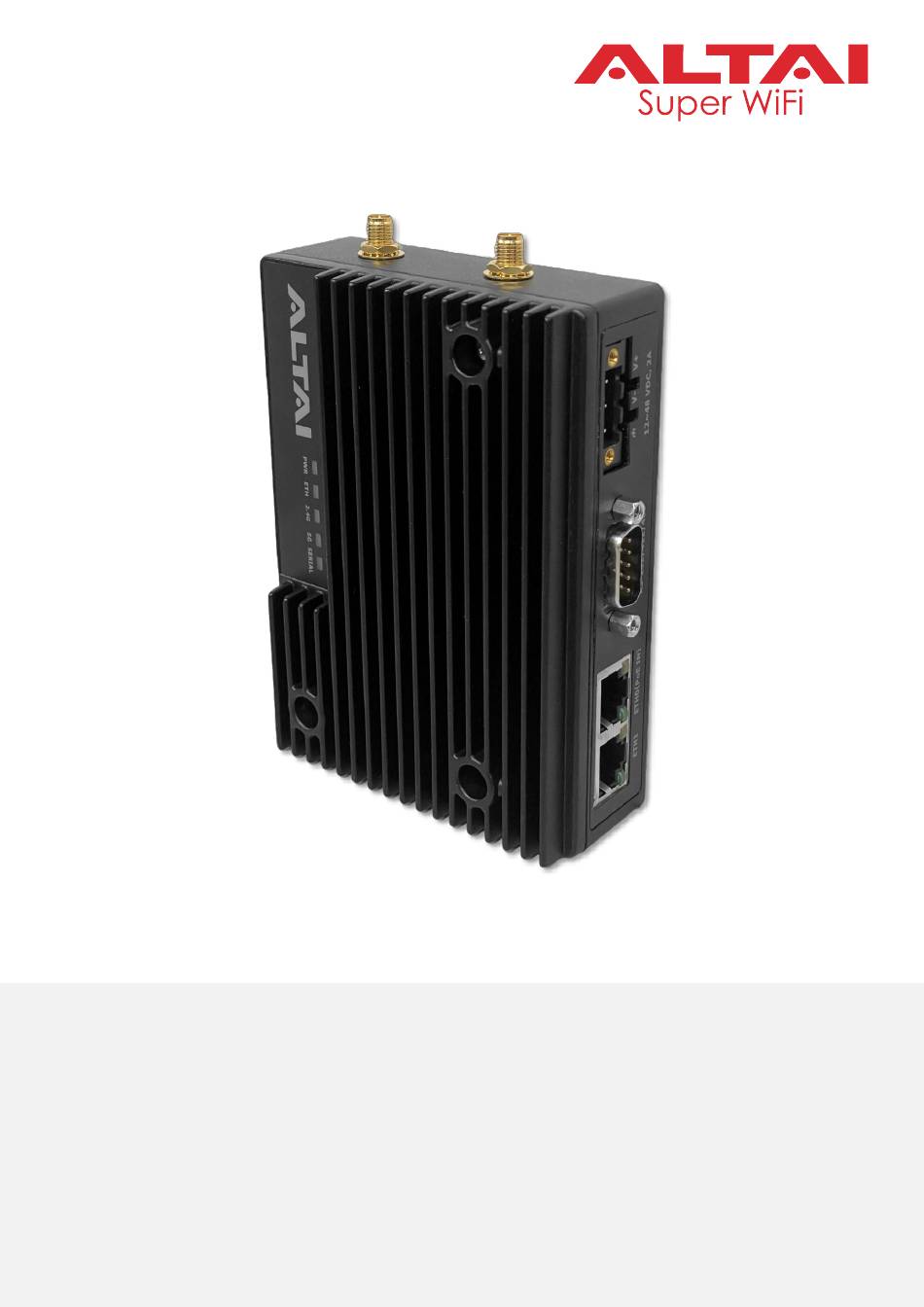

  • Page 2 Quick Setup Guide Introduction Thank you for purchasing the Altai M360-X product. This guide provides instructions to install the product and set it up in CPE (Station) mode with minimal effort. Package Contents M360-X Main Unit 1 pc 2.4GHz/5GHz 3dBi Dual Band Omni-Directional Antenna...
  • Page 3 Quick Setup Guide Hardware Overview Front View Left Side View Top View Bottom View Back View Right Side View Altai Technologies Ltd. All rights reserved...
  • Page 4 Used for connecting to power source equipment such as a PoE injector (see Option 2 in the Power Options and Cable Connection Instructions section for details) and providing 10/100/1000 Mbps network interface for LAN connection. The LED status is defined in the table below. Altai Technologies Ltd. All rights reserved...
  • Page 5 D: RS-232/RS-422/RS-485 DB9 Serial Port (Male) Used for connecting with a peripheral RS-232/RS-422/RS-485 serial device so that you can access it via the M360-X, from anywhere over TCP/IP network. E: DC Terminal Block Receptor (3-Contact: Ground/-/+) Used for connecting to a DC power source (see Option 1 in the Power Options and Cable Connection Instructions section for details).
  • Page 6 Quick Setup Guide H: Wall Mounting Holes Used for attaching the wall-mounting kit to the M360-X unit. See Option 2: Wall Mount in the Mounting Options section for details. I: DIN-Rail Mounting Holes Used for attaching the DIN-rail kit to the M360-X unit. See Option 1: DIN-Rail Mount in the Mounting Options section for details.
  • Page 7 3. Insert the anchors into the holes. 4. Insert the long screws into the anchors. 5. Align the mounting slots of the M360-X with the screw heads. Slide the unit down the slots to secure it in place. Power Options and Cable Connection Instructions Follow one of the options below to power up the M360-X for configuration.
  • Page 8 3. Connect the ground wire to a reliable earth ground point at site, and the other two wires: DC positive/DC negative to a power source. 4. Connect a computer to the M360-X's Eth0/Eth1 port with an Ethernet cable. 5. Turn on the power source. When the Power LED lights up and becomes steady, the unit should be ready for configuration.
  • Page 9 For Windows 7/Windows 10/Windows 11 users, 1. Go to Control Panel, click Network and Sharing Center and then choose the Ethernet adapter that is in connection with the M360-X unit. Click it and then click Properties. 2. Under the Networking tab, select Internet Protocol Version 4 (TCP/IPv4) in the list box “This connection uses the following items”, and then click...
  • Page 10 Type 192.168.1.222 in the address bar and then hit Enter. 2. The login page will come up. Enter the default username and password as follows: • Username: admin • Password: admin 3. Click Login. Altai Technologies Ltd. All rights reserved...
  • Page 11 2.4GHz radio configuration. 1. Check the box to Enable Radio. Select Station for the Radio Mode. Then click Submit button. 2. Click Backhaul tab. Enter the Remote SSID that you want to connect to. Altai Technologies Ltd. All rights reserved...
  • Page 12 Quick Setup Guide 3. Configure security for the Wi-Fi connection. In this example, the WLAN that the M360-X connects to is WPA3-Personal protected, so a passphrase is required. If you are not sure about the authentication mode that the WLAN is using, contact your network administrator.
  • Page 13 Follow the steps below to register your APs. 1. Go to Configuration > Network > General. Configure a valid IP address either via DHCP or using a static IP configuration so that the M360-X can connect to the Internet and communicate with AltaiCare. You can use Google Public DNS Server, e.g.
  • Page 14 5. Follow the AltaiCare Quick Start Guide to register the M360-X in the cloud system. 6. The M360-X will come up online in Alt aiCare if the connection is successful. Altai Technologies Ltd. All rights reserved...
  • Page 15 20cm between the radiator & your body. European Conformity (CE) – This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. Altai Technologies Ltd. All rights reserved...
  • Page 16 Warning M360-X may require professional installation depending on the deployment scenario. Only use the optional power adaptor available for M360-X. Using a different power adaptor might damage the device. The metal chassis of the equipment may be hot. Pay special attention or use special protection before handling this equipment.
