Page 1: Installation Guide
ALTAI C1N SUPER WIFI CPE INSTALLATION GUIDE Version 1.0 （） Date: September, 2013 Altai Technologies Ltd. All rights reserved... - Page 2 Altai C1n Super WiFi CPE Installation Guide TPS13-002_rev1.0 Copyright © 2007 Altai Technologies Limited ALL RIGHTS RESERVED. Altai Technologies Limited Unit 209, 2/F, East Wing, Building 17, Hong Kong Science Park, Shatin, New Territories, Hong Kong Telephone: +852 3758 6000...
- Page 3 This document is provided for information purposes only. Altai Technologies reserves the right to change, modify, transfer, or otherwise revise this publication without notice.
-
Page 4: Table Of Contents
2.4. Cable Connection ......................7 2.5. Desktop C1n Super WiFi CPE ....................8 2.6. Pole Mount C1n Super WiFi CPE ..................8 2.7. Wall Mount C1n Super WiFi CPE ..................9 2.8. C1n Waterproof Protection ....................10 Electrical Protection ....................... 11 3.1. -
Page 5: Introduction
The shipment consists of a C1n Super WiFi Pico Access Point and an installation kit in the container. If there is any difference from the packing list, you will need to contact the sales representative. -
Page 6: Introduction C1N Super Wifi Cpe
Altai C1n Super WiFi CPE Installation Guide TPS13-002_rev1.0 Figure 2-1 C1n Package (UK Adapter) Product: C1n Super WiFi CPE x 1 Accessories: AC Adapter x 1 DC Injector x 1 Table Stand x 1 Cable Tie x 2 ... -
Page 7: Installing C1N Super Wifi Cpe
2) RJ45 Shielded Connector Crimper 3) STP CAT5 Straight Cable x 2 4) Waterproof Sealing Tapes 5) Grounding Cable 2.4. Cable Connection Figure 2-3 C1n Cable Connection Diagram Connect C1n and DC injector with an Ethernet Cable Altai Technologies Ltd. All rights reserved... -
Page 8: Desktop C1N Super Wifi Cpe

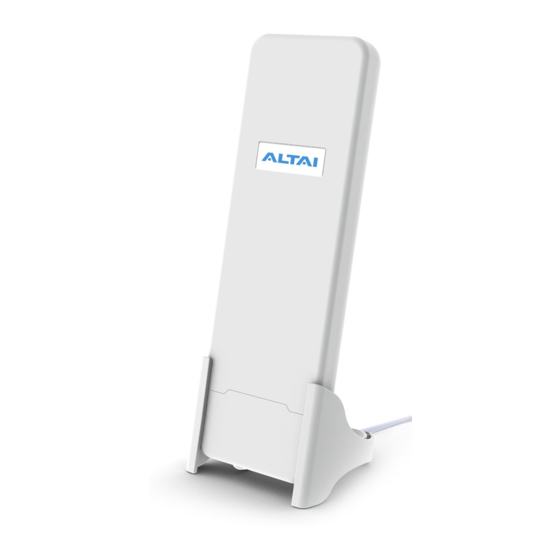

2.5. Desktop C1n Super WiFi CPE Figure 2-4 C1n Desktop mount Select the appropriated tilting angles: 8° and 23° Change the C1n orientation to face the wireless target (base station or wireless client) Connect the LAN cable under the cable stand to the DC injector 2.6. -
Page 9: Wall Mount C1N Super Wifi Cpe
Figure 2-5 C1n Pole Mount Use 2 wire clamps to mount on the pole with diameter about 25mm (1 inch). Change the C1n orientation to face the wireless target 2.7. Wall Mount C1n Super WiFi CPE Figure 2-6 C1n Wall Mount... -
Page 10: C1N Waterproof Protection
Altai C1n Super WiFi CPE Installation Guide TPS13-002_rev1.0 Drill two holes with separation by 60mm (2.3 inches) Install the anchors on the holes and screw into the wall with 10mm (0.4 inch) extension. Put the C1n onto the screw. 2.8. C1n Waterproof Protection Especially for outdoor installation, waterproof protection can enhance the protection from water leakage. -
Page 11: Electrical Protection
Altai C1n Super WiFi CPE Installation Guide TPS13-002_rev1.0 Wrap the C1n unit with a layer of rubber tape. Start from 1cm above of the lid. Wrap a loop and overlap a half. Continue until it reaches the bottom. The bottom should be completely shielded by the rubber tape. -
Page 12: Lan Cable For Outdoor Installation
Caution: Ground wires and hardware are not provided in the installation kit. 3.2. LAN Cable for Outdoor Installation STP cable with shielded connectors is required to protect the C1n against ESD. Follow the instruction to crimp the cable: Cut about 4cm of the wire coating. -
Page 13: Review The Installation
RSSI value is in the right value range. You might need to do the Antenna alignment again if the performance is not good enough. 4. Deployment Scenarios A typical site setup is shown below. The C1n can be mounted in indoor or outdoor environment. Altai Technologies Ltd. All rights reserved... - Page 14 Altai C1n Super WiFi CPE Installation Guide TPS13-002_rev1.0 Figure 4-1 C1n Desktop Mount Figure 4-2 C1n Pole Mount Altai Technologies Ltd. All rights reserved...
