Summary of Contents for TEC WiFi Link

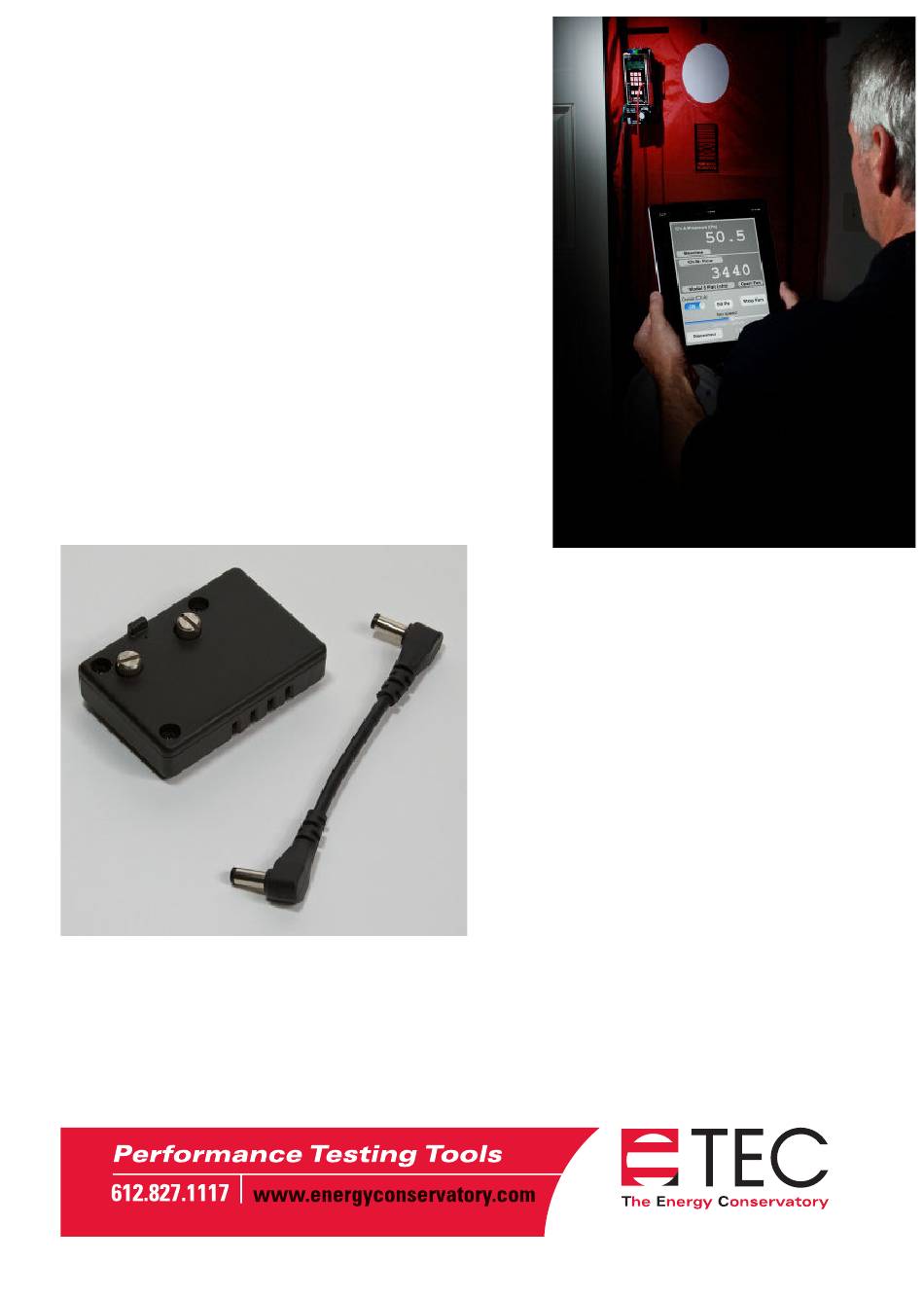

- Page 1 TEC WiFi Link Quick Guide How to use the TEC WiFi Link with the DG-700 Pressure and Flow Gauge.* *Will work with the DG-500 gauge...
- Page 2 A. Getting Started in AP Direct Connect Mode 1. Connect the TEC WiFi Link and DG-700 together. Tighten the two attachment screws on the TEC WiFi Link. 2. Attach the Power Jumper Cable between the TEC WiFi Link and DG- 700.
- Page 3 TEC WiFi Link network. The DG-700 gauge must be on in order for the TEC WiFi Link network to be visible from your laptop/mobile device. 5. Run your WiFi compatible software and connect to the gauge.
- Page 4 B. Advanced Information There are two modes of operation for the TEC WiFi Link. 1. AP Direct Connect Mode: The TEC WiFi Link is shipped in AP Direct Connect Mode. In this mode, the TEC WiFi Link is providing a wireless access point that your laptop/mobile device connects to directly.
- Page 5 Connect Mode from Router Mode 1. Power On the TEC WiFi Link and the DG-700 gauge. 2. Press and hold button A on the TEC WiFi Link for 5 seconds. All 4 lights will begin flashing. When you release button A, the TEC WiFi Link will restart in AP Direct Connect Mode along with the default password/security key of tecwifi12...
- Page 6 C. Trouble Shooting 1. I can’t find the TEC WiFi Link network on my laptop/mobile device. • The TEC WiFi Link power jumper cable is not installed. • The DG-700 gauge is Off. • The TEC WiFi Link is configured to Router Mode.
- Page 7 TEC WiFi Link with the power jumper cable, new Alkaline batteries will provide approximately 20 - 30 hours of wireless operation (depends on the DG-700 revision level). Be sure to unplug the TEC WiFi Link from the DG-700 gauge when it is not in use. TEC WiFi Link Specifications Size 2.75 x 1.875 x 1 in (70 x 48 x 25 mm)
- Page 8 2801 21st Avenue South, Suite 160 Minneapolis, Minnesota 55407 phone: (612) 827-1117 fax: (612) 827-1051 e-mail: info@energyconservatory.com website: www.energyconservatory.com Visit www.energyconservatory.com/support/manuals for the latest quick guide version Manual updated 6/24/13 Duct Blaster ®, FlowBlaster®, TrueFlow® are registered trademarks of The Energy Conservatory. Minneapolis Blower Door™...
