Chamberlain 250HB Owner's Manual

Chamberlain 250HB Owner's Manual

All models in are bold are deluxe 2 lights, these units are 315mhz

Advertisement

Quick Links

CHAMBERLAIN MFG CANADA, INC.
UNIT 11, BAYVIEW DRIVE
BARRIE, ONTARIO L4N5E9
Owners Manual
Garage Door Opener
ALL MODELS IN ARE BOLD ARE DELUXE (2 LIGHTS)
THESE UNITS ARE 315MHZ
MODEL
NUMBERS
550HBC
550-6HBC
550HB
550-6HB
250HBC
250-6HBC
250HB
250-6HB

Advertisement

loading
Need help?

Need help?

Do you have a question about the 250HB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Chamberlain 250HB

  • Page 1 CHAMBERLAIN MFG CANADA, INC. UNIT 11, BAYVIEW DRIVE BARRIE, ONTARIO L4N5E9 Owners Manual Garage Door Opener ALL MODELS IN ARE BOLD ARE DELUXE (2 LIGHTS) THESE UNITS ARE 315MHZ MODEL NUMBERS 550HBC 550-6HBC 550HB 550-6HB 250HBC 250-6HBC 250HB 250-6HB...
  • Page 2 FEATURES OF YOUR OPENER 1. Opener Lights: Turn on and off automatically with 4-1/2 5. Motor Power: Permanently lubricated motor with automatic minute illumination for your safety and convenience. Provide reset. constant LIGHT when Light Switch is ON. 6. Digital Radio Controls: Codes can be easily changed by the 2.

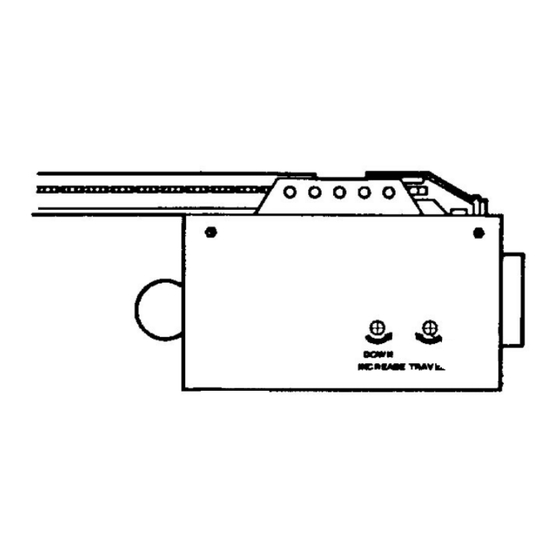

  • Page 3 Adjustment STEP 1 Adjust UP and DOWN Limits LIMIT ADJUSTMENT settings regulate the points at which the door will stop when moving up or down. NOTE: Door STOPS in the UP direction if anything interferes with door travel. Door REVERSES in the DOWN direction if anything interferes with the door travel (including binding or unbalanced doors).
  • Page 4 STEP 2 Adjust Force DO NOT USE FORCE ADJUSTMENTS TO COMPENSATE FOR A BINDING OR STICKING GARAGE DOOR. EXCESSIVE FORCE WILL INTERFERE WITH PROPER OPERATION OF SAFETY REVERSE SYSTEM OR DAMAGE GARAGE DOOR. Force Adjustment Controls are located on rear panel of opener. FORCE ADJUSTMENT settings regulate amount of the power required to open and close door.
  • Page 5 Adjustment STEP 3 Test Safety Reverse System THE SAFETY REVERSE SYSTEM TEST IS IMPORTANT. GARAGE DOOR MUST REVERSE ON CONTACT WITH A ONE INCH OBSTACLE PLACED ON THE FLOOR. FAILURE TO PROPERLY ADJUST OPENER MAY RESULT IN SERIOUS PERSONAL INJURY FROM A CLOSING GARAGE DOOR. REPEAT TEST AT LEAST FOUR TIMES A YEAR AND ADJUST AS NEEDED..
  • Page 6 Radio Controls F.C.C. rules prohibit adjustments to or modification of receiver and/or transmitter circuitry except for changing the code setting and replacing the transmitter battery THERE ARE NO USER SERVICEABLE PARTS. Manufactured under 1 or more of the following U.S. patents: RE29,525; 4,037,201; 4,750,118; 4,806,930 Your garage door opener receiver and transmitter have been set at the factory to a matching code.
  • Page 7 Repair Parts RAIL ASSEMBLY PARTS PART DESCRIPTION 1A995 Master link kit 41B617 Outer trolley 41B277 Inner trolley 12A197 Chain retainer bracket 183B73 Rail braces 183B94 Tee rail-end section (each) 183B71 Tee-rail-end section (each) 41B2616 Cable Pulley and bracket assy. 41C2735 Chain and cable NOT SHOWN 41A2848...
  • Page 8 Repair Parts Chassis Assembly Parts List PART PART DESCRIPTION DESCRIPTION 31C290 Sprocket cover 41A3150 Terminal block w/screws 41A2827 Gear and sprocket assy 41D3058 Universal replacement motor 41D2750 Cover w/all labels (550) Complete with: 41D2751 Cover w/all labels (350) Spring washer 41A2818 Helical gear &...
  • Page 9 CHAMBERLAIN GARAGE DOOR OPENER ONE-YEAR LIMITED WARRANTY The Chamberlain Group warrants to the first retail purchaser of this product that it will be tree from any defect in materials and/or workmanship for a period of twelve full months from the date of purchase. The product must be used in complete accordance with Chamberlain s instructions for installation, operation and care.
  • Page 10 ACCESSORIES FOR YOUR GARAGE DOOR OPENER ORIGINAL SUBSTITUTE DESCRIPTION MODEL# TO USE 50C OR Single Function 2610-589 Remote 315 MHZ Three Button Remote 315 MHZ Mini One Function Remote 315 MHZ 745C 745C Wall Control Panel (4 wire) 65LMC 65LMC Keyless Entry (Wired) 760C...

This manual is also suitable for:

550hb250hbc550hbc250-6hb550-6hb250-6hbc ... Show all
