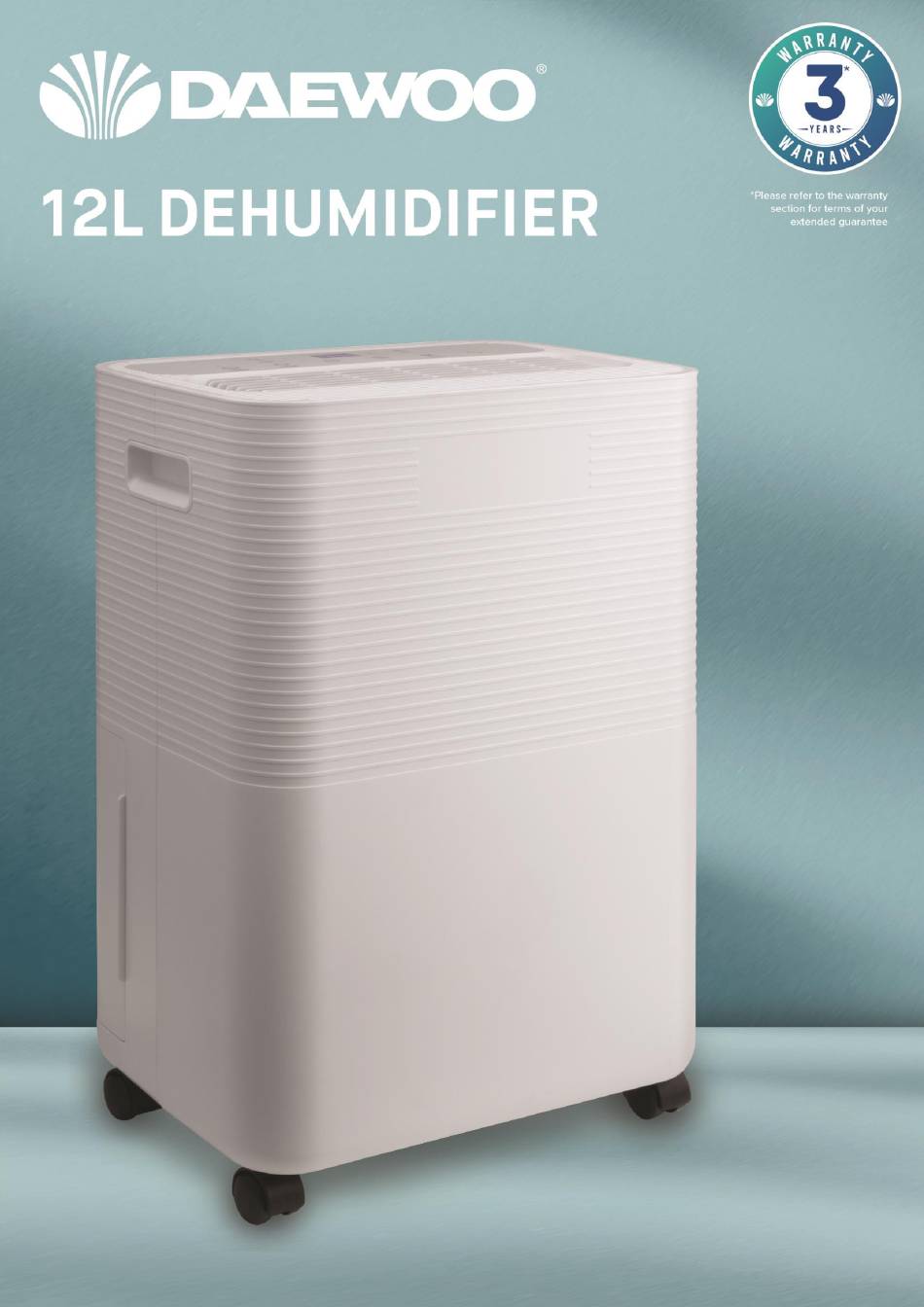

- Page 1 12L Dehumidifier Product Code: COL1611 User Manual IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE User Manual...
- Page 2 12L Dehumidifier Product Code: COL1611 User Manual READING AND STORING THE USER MANUAL Before using this product, please read through this manual carefully paying particular attention to the safety instructions. Failure to do so may result in personal injury or damage to the product.
- Page 3 12L Dehumidifier Product Code: COL1611 User Manual • DO NOT push objects into any openings as damage to the product and/or electric shock may occur. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or...
- Page 4 12L Dehumidifier Product Code: COL1611 User Manual be performed under the supervision of an individual specified in the use of flammable refrigerants. • This product is intended for household use only and should not be used for industrial purposes. •...
- Page 5 12L Dehumidifier Product Code: COL1611 User Manual the supplier. • DO NOT use this product for anything other than its intended use. • The Dehumidifier must always be stored and transported upright, otherwise irreparable damage be caused to the compressor; if in doubt, wait at least 24 hours before restarting the unit.
- Page 6 12L Dehumidifier Product Code: COL1611 User Manual Explanation of Symbols The following warning symbols or words are used in this instruction manual: Products labelled with UK Conformity Assessment identifies products conforming to UK statutory requirements. Products labelled with this symbol conform to applicable provisions of the European Economic Area.
- Page 7 12L Dehumidifier Product Code: COL1611 User Manual Description of Parts 1. Control Panel 2. Air Outlet 3. Handle(s) 4. Main Body 5. Water Tank (rear) 6. Castors 7. Air Filter 8. Continuous Drain Outlet 9. Mains Cable 10. Drain Hose...
- Page 8 12L Dehumidifier Product Code: COL1611 User Manual Description of Parts – Control Panel 11. Timer Button 12. Mode Button 13. Decrease Button 14. LED Display 15. Increase Button 16. Fan Speed Button 17. Power Button 18. Low Fan Speed Indicator 19.
- Page 9 12L Dehumidifier Product Code: COL1611 User Manual Using Your Dehumidifier • Insert the mains plug into the nearest available socket. Power • Press the Power Button (17) to power the unit up. • The Dehumidifier will power up in Dehumidifier mode.
- Page 10 12L Dehumidifier Product Code: COL1611 User Manual Notes about the Dehumidifier A. If the "Co" (Continuous) dehumidification is selected, the dehumidifier will continue to run (compressor and fan) regardless of the humidity level. B. If the humidity is higher than or equal to 3% of the set humidity, the compressor and fan will run in dehumidify mode.
- Page 11 12L Dehumidifier Product Code: COL1611 User Manual Emptying the Water Tank (5) 1. Grasp the Water Tank (5) at the sides and pull the tank out: 2. Remove the tank lid and empty the tank: DO NOT remove the float from the tank otherwise the water sensor will operate continuously and the dehumidifier will not operate.
- Page 12 12L Dehumidifier Product Code: COL1611 User Manual 3. Replace the lid on the Water Tank (5) and then replace the tank into the Dehumidifier ensuring that it is full pushed back into place: Continuous Drainage If preferred, continuous drainage can be used with the appliance rather than emptying the Water Tank (5).
- Page 13 12L Dehumidifier Product Code: COL1611 User Manual Cleaning the Filter Press the catch on the Filter (7) downwards and remove the Filter. Storage Whilst not in use for long periods, please ensure that you: 1. Empty the water tank and wipe away any excess moisture from the tank and body.
- Page 14 12L Dehumidifier Product Code: COL1611 User Manual Technical Specification Product Code COL1611 Rated Voltage 220-240V~ Rated Frequency 50Hz Rated Current 1.6A Rated Input Power 280W Rated Dehumidifying Capacity 12L/Day (30°C, 80%RH) Water Tank Capacity Maximum Refrigerant Charge R290/46g Operating Temperature Range 5°C –...
- Page 15 12L Dehumidifier Product Code: COL1611 User Manual Recycling Information Disposal of the Packaging Dispose of paper and cardboard in appropriate paper re-cycling facilities. Dispose of plastics in the appropriate plastics collection service. Dispose of non-recyclable plastics in the appropriate plastics collection service.
- Page 16 12L Dehumidifier Product Code: COL1611 User Manual Trouble Shooting Guide Problem Possible Cause Possible Solution Ensure that the mains plug is No power inserted into a socket and that it is switched on. Not working Water Full Indicator is Empty the water tank illuminated.
- Page 17 12L Dehumidifier Product Code: COL1611 User Manual Notes IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE...
- Page 18 As part of our commitment to quality, we are offering you an extra 2 years warranty in addition to your 1 year guarantee Your Daewoo product is guaranteed for 1 year from the date of original purchase, with proof of purchase or receipt. If any defect should occur due to faulty workmanship or material, your faulty product should be returned to the place of purchase, replacement or refund is at the discretion of the retailer.
