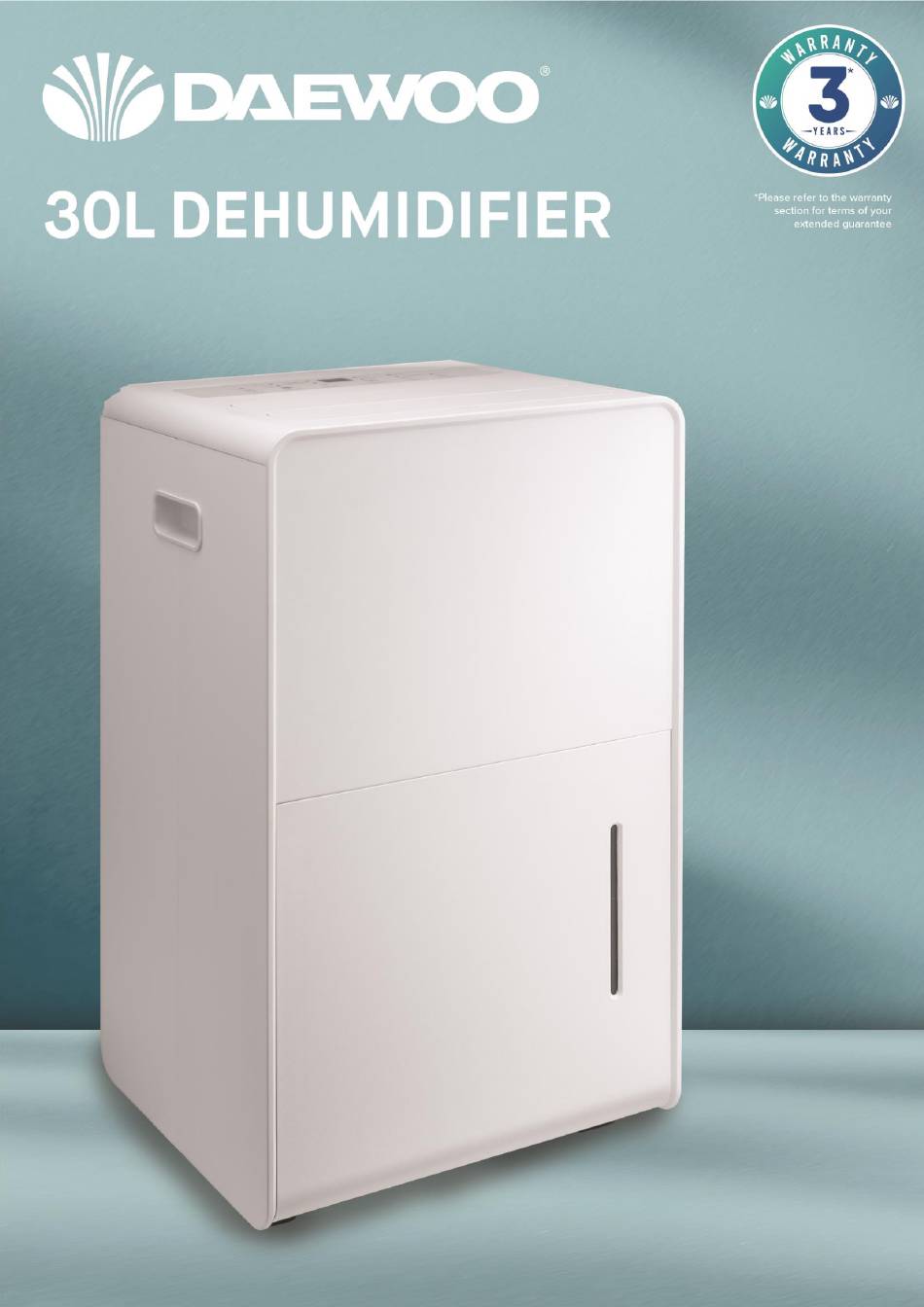

30L Dehumidifier
Product Code: COL1613
User Manual
1
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COL1614 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Daewoo COL1614

Summary of Contents for Daewoo COL1614

  • Page 1 30L Dehumidifier Product Code: COL1613 User Manual IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE...

  • Page 2: Table Of Contents

    30L Dehumidifier Product Code: COL1614 User Manual Contents Page No. Contents Reading and Storing the User Manual Important Safety Instructions for Proper Use Explanation of Symbols Before First Use of Your Dehumidifier Installing the Hepa Filter Description of Parts Description of Parts – The Control Panel...
  • Page 3 30L Dehumidifier Product Code: COL1613 User Manual READING AND STORING THE USER MANUAL Before using this product, please read through this manual carefully paying particular attention to the safety instructions. Failure to do so may result in personal injury or damage to the product.
  • Page 4 30L Dehumidifier Product Code: COL1614 User Manual • DO NOT push objects into any openings as damage to the product and/or electric shock may occur. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or...
  • Page 5 30L Dehumidifier Product Code: COL1613 User Manual be performed under the supervision of an individual specified in the use of flammable refrigerants. • This product is intended for household use only and should not be used for industrial purposes. • DO NOT connect the appliance to an electrical outlet using an extension lead.
  • Page 6 30L Dehumidifier Product Code: COL1614 User Manual the supplier. • DO NOT use this product for anything other than its intended use. • The Dehumidifier must always be stored and transported upright, otherwise irreparable damage be caused to the compressor; if in doubt, wait at least 24 hours before restarting the unit.

  • Page 7: Explanation Of Symbols

    30L Dehumidifier Product Code: COL1613 User Manual Explanation of Symbols The following warning symbols or words are used in this instruction manual: Products labelled with UK Conformity Assessment identifies products conforming to UK statutory requirements. Products labelled with this symbol conform to applicable provisions of the European Economic Area.

  • Page 8: Before First Use Of Your Dehumidifier

    30L Dehumidifier Product Code: COL1614 User Manual Before First Use of Your Dehumidifier Remove all packing materials and discard responsibly. Installing the Hepa Filter Before using your Dehumidifier, the Hepa Filter (9) must first be installed as follows: 1. Remove the Hepa Filter (9) from the paper bag: 2.

  • Page 9: Description Of Parts

    30L Dehumidifier Product Code: COL1613 User Manual Ensure all parts are present – see Description of Parts below. Description of Parts 1. Control Panel 2. Air Outlet Louvres 3. Handle 4. Main Body 5. Water Tank (with window) 6. Castors (x4) 7.

  • Page 10: Description Of Parts - The Control Panel

    30L Dehumidifier Product Code: COL1614 User Manual Description of Parts – The Control Panel 13. Timer Button 14. Speed Button 15. Swing (Oscillate) Button 16. LED Display 21 22 25 26 27 17. Humidity Set Button 18. Mode Button 19. Power Button 20.

  • Page 11: Using Your Dehumidifier

    30L Dehumidifier Product Code: COL1613 User Manual Using Your Dehumidifier • Insert the mains plug into the nearest available socket. Powering Up • Press the Power Button (19) to power the unit up. • The Dehumidifier will power up in Dehumidifier mode. •...

  • Page 12: Swing/Oscillate

    30L Dehumidifier Product Code: COL1614 User Manual 3. Fan Only Mode - FAN Press the Speed Button (21) to select the airflow speed: • Low Fan Speed – the Low Fan Speed Indicator (22) (LOW) will illuminate. • High Fan Speed – the High Fan Speed Indicator (21) (HIGH) will illuminate.

  • Page 13: Child Lock

    30L Dehumidifier Product Code: COL1613 User Manual Child lock - LOCK Press and hold the Swing (Oscillate) button (15) (SWING) for 3 seconds to turn the child lock function on. The Child Lock Indicator (23) will illuminate when the lock is activated. Press and hold the Swing (Oscillate) button (15) (SWING) for 3 seconds to turn the child lock function off.
  • Page 14 30L Dehumidifier Product Code: COL1614 User Manual 2. Lift the flap (arrowed below) at the top right rear corner of the tank lid and empty the tank: DO NOT remove the float from the tank otherwise the dehumidifier will not operate: IMPORTANT –...

  • Page 15: Continuous Drainage

    30L Dehumidifier Product Code: COL1613 User Manual 3. Close the flap at the top right rear corner and replace the Water Tank (5) into the Dehumidifier ensuring that it is full pushed back into place: Continuous Drainage If preferred, continuous drainage can be used with the appliance rather than emptying the Water Tank (5).

  • Page 16: Cleaning And Replacing The Hepa Filter

    30L Dehumidifier Product Code: COL1614 User Manual Cleaning and Replacing the Hepa Filter • Remove the Air Filter Cover (8) using the Air Filter Cover Pull (7), remove the Hepa Filter (9) from behind the cover. • To clean the Hepa Filter (9), use a vacuum cleaner to remove any built up dust or lint.

  • Page 17: Technical Specification

    30L Dehumidifier Product Code: COL1613 User Manual Technical Specification Product Code COL1614 Rated Voltage 220-240V ~ Rated Frequency 50Hz Rated Current 3.3A Rated Power 600W Rated Capacity 30L/D (30°C, 80%RH) Water Tank Capacity Maximum Refrigerant Charge R290/50g Operating Temperature Range 5°C –...

  • Page 18: Recycling Information

    30L Dehumidifier Product Code: COL1614 User Manual Recycling Information Disposal of the Packaging Dispose of paper and cardboard in appropriate paper re-cycling facilities. Dispose of plastics in the appropriate plastics collection service. Dispose of non-recyclable plastics in the appropriate plastics collection service.
  • Page 19 30L Dehumidifier Product Code: COL1613 User Manual IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE...

  • Page 20: Warranty

    As part of our commitment to quality, we are offering you an extra 2 years warranty in addition to your 1 year guarantee Your Daewoo product is guaranteed for 1 year from the date of original purchase, with proof of purchase or receipt. If any defect should occur due to faulty workmanship or material, your faulty product should be returned to the place of purchase, replacement or refund is at the discretion of the retailer.
