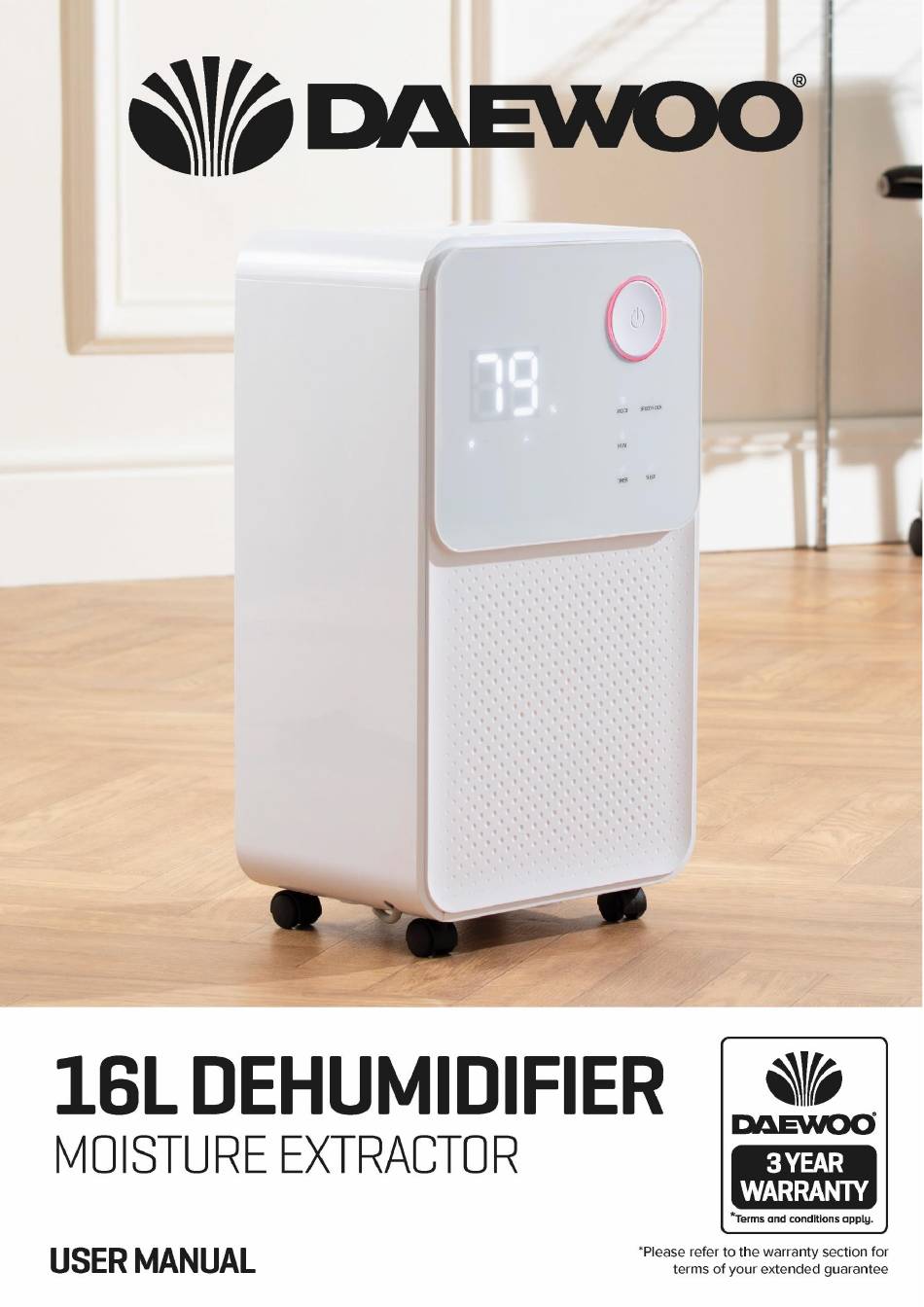

- Page 1 16L Dehumidifier Model No. COL1587 User Manual IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE...
- Page 2 16L Dehumidifier Model No. COL1587 User Manual READING AND STORING THE USER MANUAL Before using this product, please read through this manual carefully paying particular attention to the safety instructions. Failure to do so may result in personal injury or damage to the product.
- Page 3 16L Dehumidifier Model No. COL1587 User Manual • DO NOT push objects into any openings as damage to the product and/or electric shock may occur. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or...
- Page 4 16L Dehumidifier Model No. COL1587 User Manual be performed under the supervision of an individual specified in the use of flammable refrigerants. • This product is intended for household use only and should not be used for industrial purposes. • DO NOT connect the appliance to an electrical outlet using an extension lead.
- Page 5 16L Dehumidifier Model No. COL1587 User Manual supplier. • DO NOT use this product for anything other than its intended use. • The Dehumidifier must always be stored and transported upright, otherwise irreparable damage be caused to the compressor; if in doubt, wait at least 24 hours before restarting the unit.
- Page 6 16L Dehumidifier Model No. COL1587 User Manual Explanation of Symbols The following warning symbols or words are used in this instruction manual: Products labelled with UK Conformity Assessment identifies products conforming to UK statutory requirements. Products labelled with this symbol conform to applicable provisions of the European Economic Area.

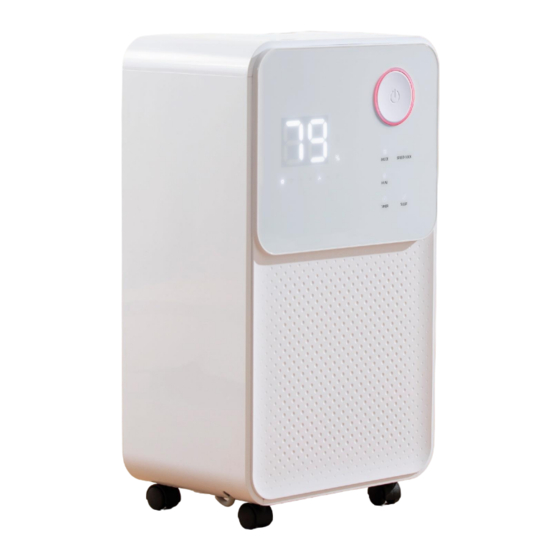

- Page 7 16L Dehumidifier Model No. COL1587 User Manual Description of Parts 1. Air Outlet (top) 2. Humidity Indicator 3. Control Panel 4. Castors 5. Air Intake 6. Drain Outlet 7. Water Tank 8. Air Filter 9. Drain Hose IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE...
- Page 8 16L Dehumidifier Model No. COL1587 User Manual Description of Parts – Control Panel Item Item Description Symbol Description/comments On/Off Button Press to switch the unit on and off. Mode Button Press to select Sunny, Rainy or continuous Drying mode. Fan Speed/ Child Lock...
-
Page 9: Installation
16L Dehumidifier Model No. COL1587 User Manual Humidity Indicator (2) Indicator Colour Colour Description Continuous Blue: Humidity level below 60% relative humidity. Flashing Blue: Defrosting in progress Continuous Green: Humidity level is above 60% but below 80% relative humidity. Continuous Red: Humidity level above 80% relative humidity. - Page 10 16L Dehumidifier Model No. COL1587 User Manual Using Your Dehumidifier • Insert the mains plug into the nearest available socket. The unit will give one long beep to confirm it is plugged in. Power • Touch the Power Button (10) to power the unit up.
- Page 11 16L Dehumidifier Model No. COL1587 User Manual Fan Speed/Child Lock • Touch the Fan Speed/Child Lock button (12) to change the fan speed from low to high or high to low. The appropriate Fan Speed Indicators (17) will illuminate to show the fan speed selected.
- Page 12 16L Dehumidifier Model No. COL1587 User Manual Water Tank Full Alarm When the Water Tank (7) is full, the unit will buzz and the Tank Full Indicator (18) will illuminate. Empty the Water Tank as follows: a. Grasp the indent at base of the Water Tank (7) and pull the tank free from the dehumidifier.
- Page 13 16L Dehumidifier Model No. COL1587 User Manual Storage Whilst not in use for long periods, please ensure that you: 1. Empty the water tank and wipe away any excess moisture from the tank and body. 2. Clean the filter. 3. Place the appliance in a cool and dry environment.
- Page 14 16L Dehumidifier Model No. COL1587 User Manual If you need to remove the plug -DISCONNECT FROM THE MAINS- and then cut it off the mains lead and immediately dispose of it safely. Never attempt to reuse the plug or insert it into a socket outlet as there is a danger of electric shock.
-
Page 15: Troubleshooting Guide
16L Dehumidifier Model No. COL1587 User Manual Trouble Shooting Guide Problem Possible Cause Possible Solution Ensure that the mains plug is No power inserted into a socket and that it is switched on. Water Full Indicator is working Empty the water tank illuminated Room temperature ˂... -
Page 16: Warranty
As part of our commitment to quality, we are offering you an extra 2 years warranty in addition to your 1 year guarantee Your Daewoo product is guaranteed for 1 year from the date of original purchase, with proof of purchase or receipt. If any defect should occur due to faulty workmanship or material, your faulty product should be returned to the place of purchase, replacement or refund is at the discretion of the retailer.
