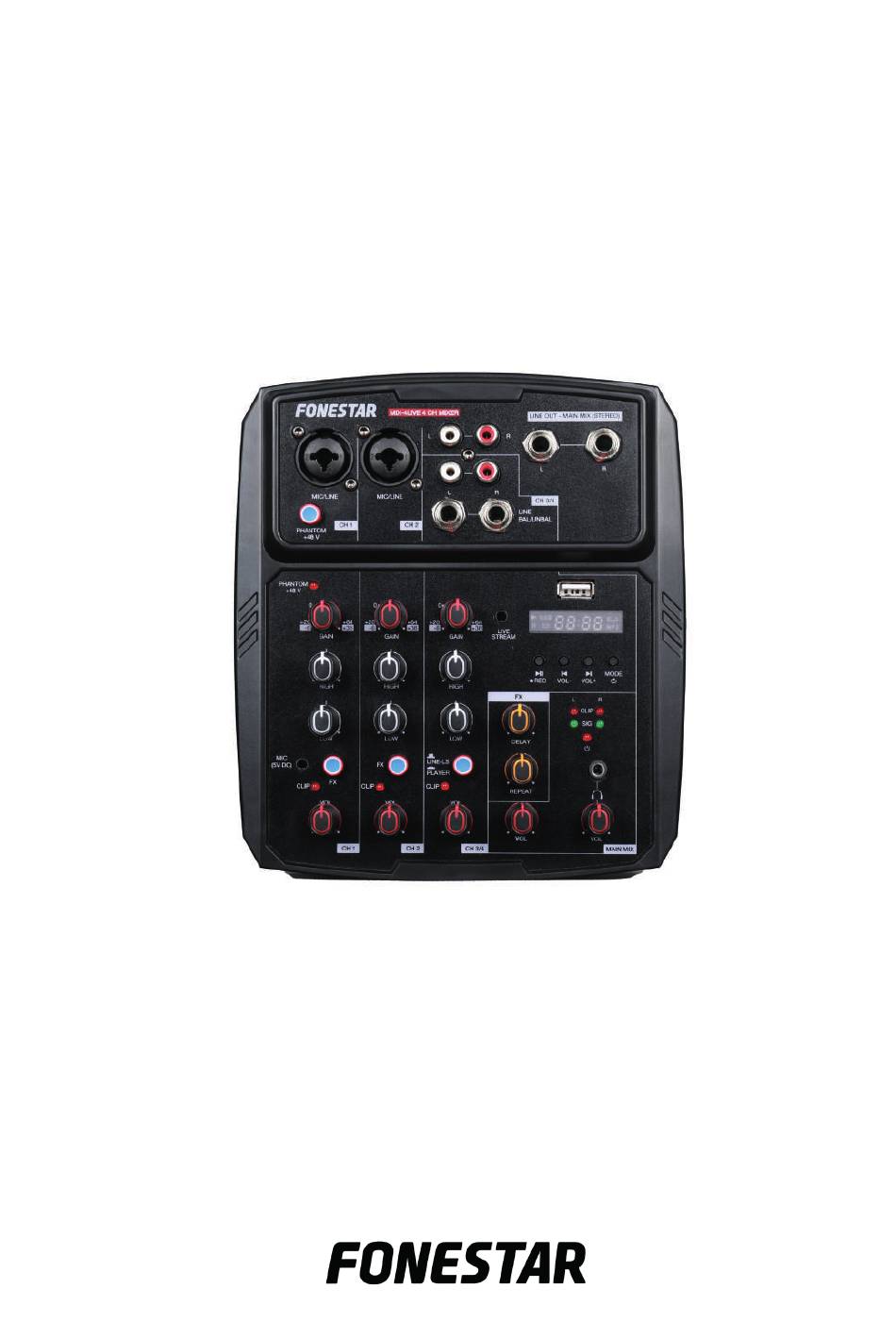

- Page 1 MIX-4LIVE BLUETOOTH /USB/PC 4-CHANNEL MIXER ® MEZCLADOR 4 CANALES BLUETOOTH /USB/PC ® TABLE DE MIXAGE 4 CANAUX BLUETOOTH /USB/PC ® MISTURADOR 4 CANAIS BLUETOOTH USB/PC ® / INSTRUCTION MANUAL/MANUAL DE USUARIO/ MODE D’EMPLOI/MANUAL DE INSTRUÇÕES...
- Page 2 - USB recorder and player, play music or record the performance without a PC. - It includes effects (delay and repeat) with level control, which will give an extra touch to your performances. CONTROLS FRONT PANEL MIX-4LIVE 4 CH MIXER LINE OUT - MAIN MIX (STEREO) MIC/LINE MIC/LINE...
- Page 3 5.- GAIN: input gain control. For the MIC microphone input (XLR) the range is from +20 dB to +64 dB, and for the LINE input (6.3 mm jack) from -6 dB to +38 dB. 6.- HIGH: high pass filter with 10 kHz cut-off frequency. 7.- LOW: w pass filter with 30 Hz cut-off frequency.
- Page 4 1.- Power input and PC/Mac (Plug and Play). If a PC/Mac is connected with a USB cable this connection is for audio input and output or for control of the connected USB device. USB-C connector. 2.- Power and PC input operation selector. Equipment power supply only MIX-4LIVE 4 CH MIXER LINE OUT - MAIN MIX (STEREO) MIC/LINE MIC/LINE...
- Page 5 - Connect the equipment to the power supply. Switch on the equipment in this order: peripheral equipment, followed by the MIX-4LIVE mixer and lastly the power amplifier (if necessary). - Adjust the gain of each channel by displaying the channel’s CLIP indicator.
- Page 6 BLOCK DIAGRAM - 6 -...
- Page 7 USB-A to USB-C power cable USB power adapter SIMPLIFIED EU DECLARATION OF CONFORMITY FONESTAR SISTEMAS S.A. hereby declares that the Bluetooth/USB/PC 4-channel mixer MIX-4LIVE complies with Directive 2014/53/EU. The complete text of the EU Declaration of Conformity is available at the following internet address: fonestar.com/en/MIX-4LIVE...
