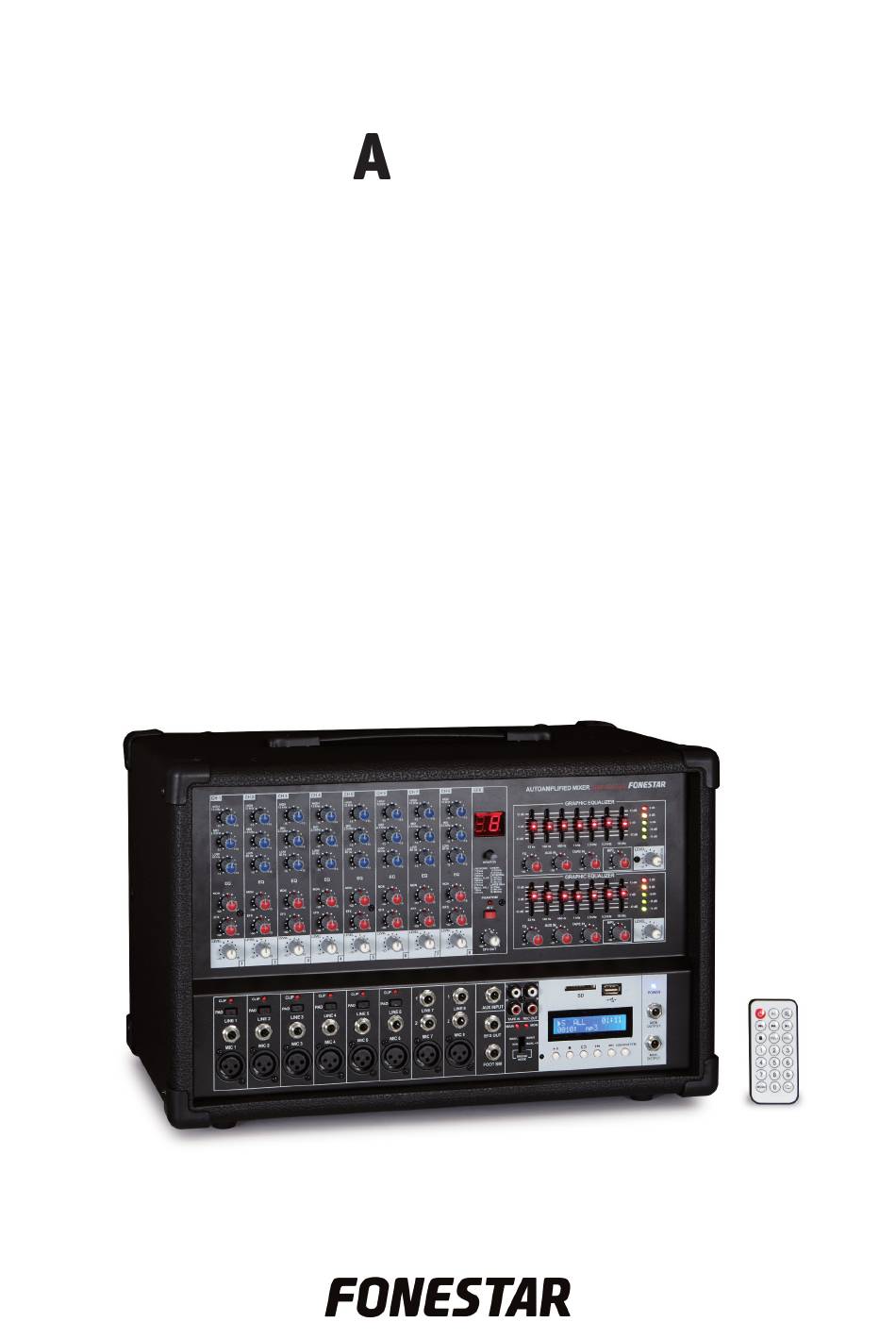

- Page 1 SM -208RUB 8-CHANNEL AUTOAMPLIFIED MIXER INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
-
Page 3: Exemption Of Liability
The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use. -
Page 4: Controls And Functions Front Panel
DESCRIPTION - 8-channel autoamplified mixer. - USB/SD/MP3 player with digital FM radio tuner and ID3 tag. - Bluetooth receiver incorporated, plays music recived from a mobile telephone. - 7-band graphic equalizer. - Amplifier output signal routing for different operating modes: main, main/monitor y bridge mode. - Stereo mode power: 200 + 200 W RMS at 4 Ω... - Page 5 INPUT CHANNELS CH 7-CH 8 EQ: 3-band equalizer per channel. Treble, mid and bass tones controls with a gain of ±15 dB. HIGH: high pass filter with 12 kHz cut-off frequency. MID: band pass filter with 2.5 kHz central frequency. LOW: low pass filter with 80 Hz cut-off frequency.
- Page 6 28.- AUX INPUT: unbalanced line level input, 6.3 mm jack connector. 29.- TAPE IN: unbalanced line level input, 2 x RCA connectors. 30.- REC OUT: line level output, 2 x RCA connectors. 31.- EFX OUT: effects bus line level output, 6’3 mm jack connector. It can be connected to an effects processor.
-
Page 7: Remote Control
Connection section. BLUETOOTH RECEIVER - This model SMA-208RUB allows MP3 files stored in your mobile telephone to be played if the device is paired with the bluetooth receiver module of this autoamplified mixer. - To pair your mobile telephone with the bluetooth receiver, select the bluetooth option with the USB/SD/BT/FM button located on the front panel of the mixer or with the MODE button on the remote control. -
Page 8: Main Mode
- To amplify the MAIN bus mix select the MAIN L/MAIN R position on the routing selector. - Connect the loudspeakers to the MAIN loudspeaker connectors of the SMA-208RUB. - The amplifier output signal is controlled by the volume control MAIN in the front panel of the device. - Page 9 MAIN. In this case the charge impedance must be of 8 Ω. - Connect the loudspeaker to the loudspeaker connector BRIDGED on the rear panel of the SMA-208RUB. - The volume of the output signal is adjusted with the control MAIN on the front of the device.
-
Page 10: Technical Specifications
TECHNICAL SPECIFICATIONS SMA-208RUB CHARACTERISTICS 8-channel autoamplified mixer. USB/SD/MP3 player with digital FM radio tuner and ID3 tag. Bluetooth receiver, plays music received from a mobile telephone. Remote control. 16 digital effects with on/off using a pedal. 48 V phantom power supply. -
Page 11: Warranty
This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law “La Ley General para la Defensa de los... - Page 12 www.fonestar.com...
