HIGHLIGHT HL-SL-AUR Series Integrated Solar Street Light
Installation and Maintenance Manual Introduction
Using only the highest quality components, the HL-SL-AUR Series LED Light Fixture is designed for industrial applications where reliability
and performance are critical as the bulb maintenance is difficult or impossible, not to mention the high cost.
Every component of the HL-SL-AUR Series LED Light Fixture has been carefully engineered to provide the most reliable performance and bring
across many benefits of utilizing solid state lighting technology in industrial applications. HL-SL-AUR Series LED Light Fixture is rated IP66,
suitable for both indoor and outdoor use.
Product Features:
· Multiple choice of optical lenses
· System light efficacy 130 lm/W
· Easy installation and maintenance
Warning
To avoid the risk of fire, explosion, or electric shock, this product should be installed, inspected, and maintained by a qualified electrician only, in accordance with all applicable electrical codes.
To avoid electric shock:
-- Be certain electrical power is OFF before and during installation and maintenance.
-- Luminaire must be connected to a wiring system with an equipment-grounding conductor.
-- Make sure the supply voltage is the same as the rated luminaire voltage.
-- Do not operate in ambient temperatures above those indicated on the luminaire nameplate.
-- Avoid to use in environments containing sulfur, chlorine, or other halides, methyl acetate or ethyl acetate, cyanoacrylates, glycol ethers, formaldehyde or butadiene.
Installation
For high performance and long term reliability, the light should be installed in free air.
ⅠUnpacking inspec on
1.The condition of lamps, solar panels, batteries,
mounting racks, etc. should be checked toensure they are
in good working order and all accessories are complete.

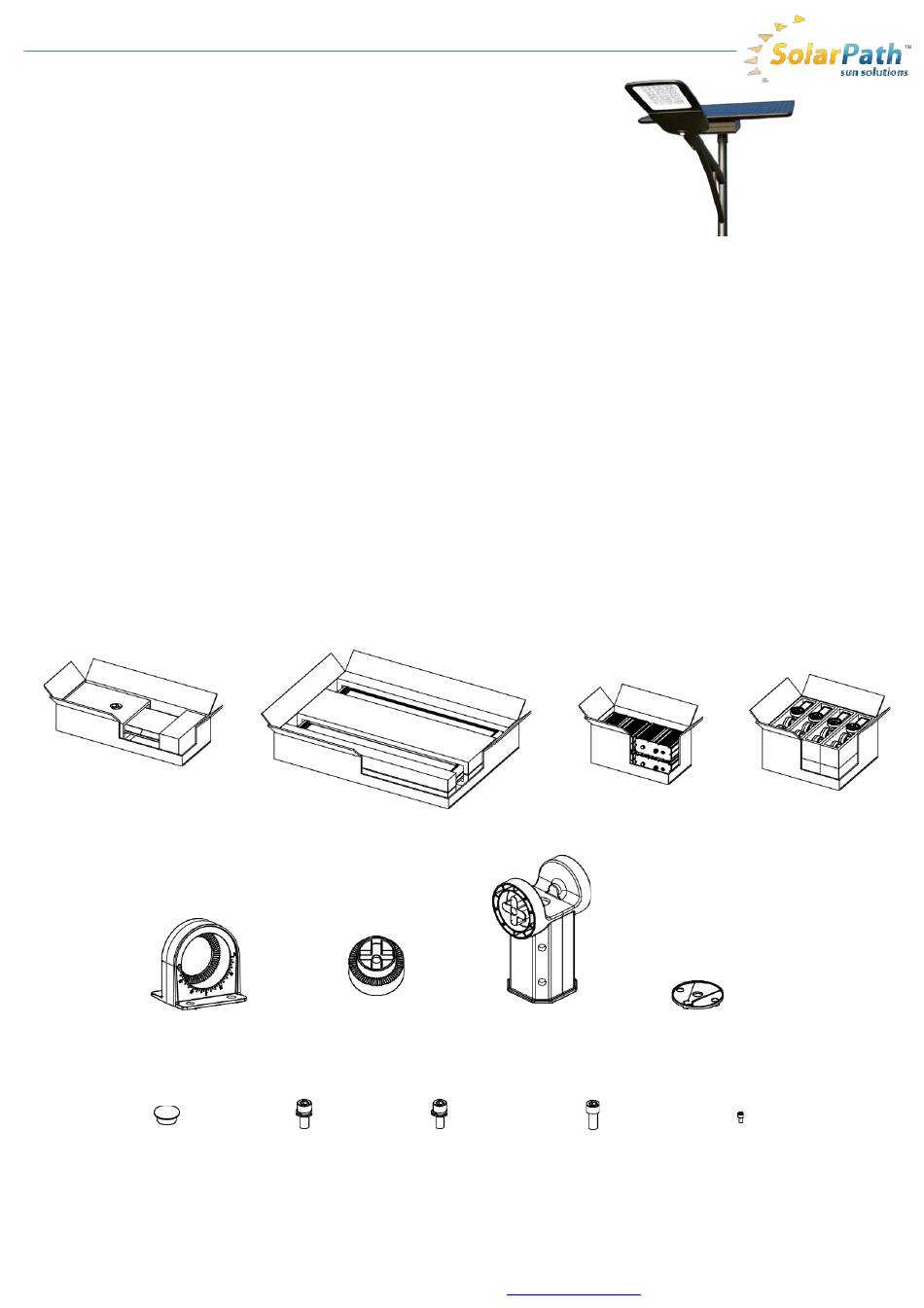

Each slip fitting is as follows：
Reinforcing slip-
fitter 1(2pcs)
Silicone plug
(2pcs)
Solar panel
Reinforcing slip
fitter-2(2pcs)
Hex socket
Hex socket
combination screws combination screws-
PM10×30(2pcs)
-PM10×20(8pcs)
