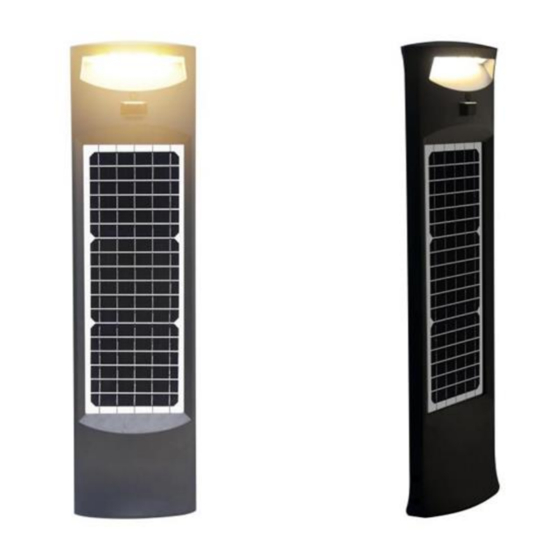

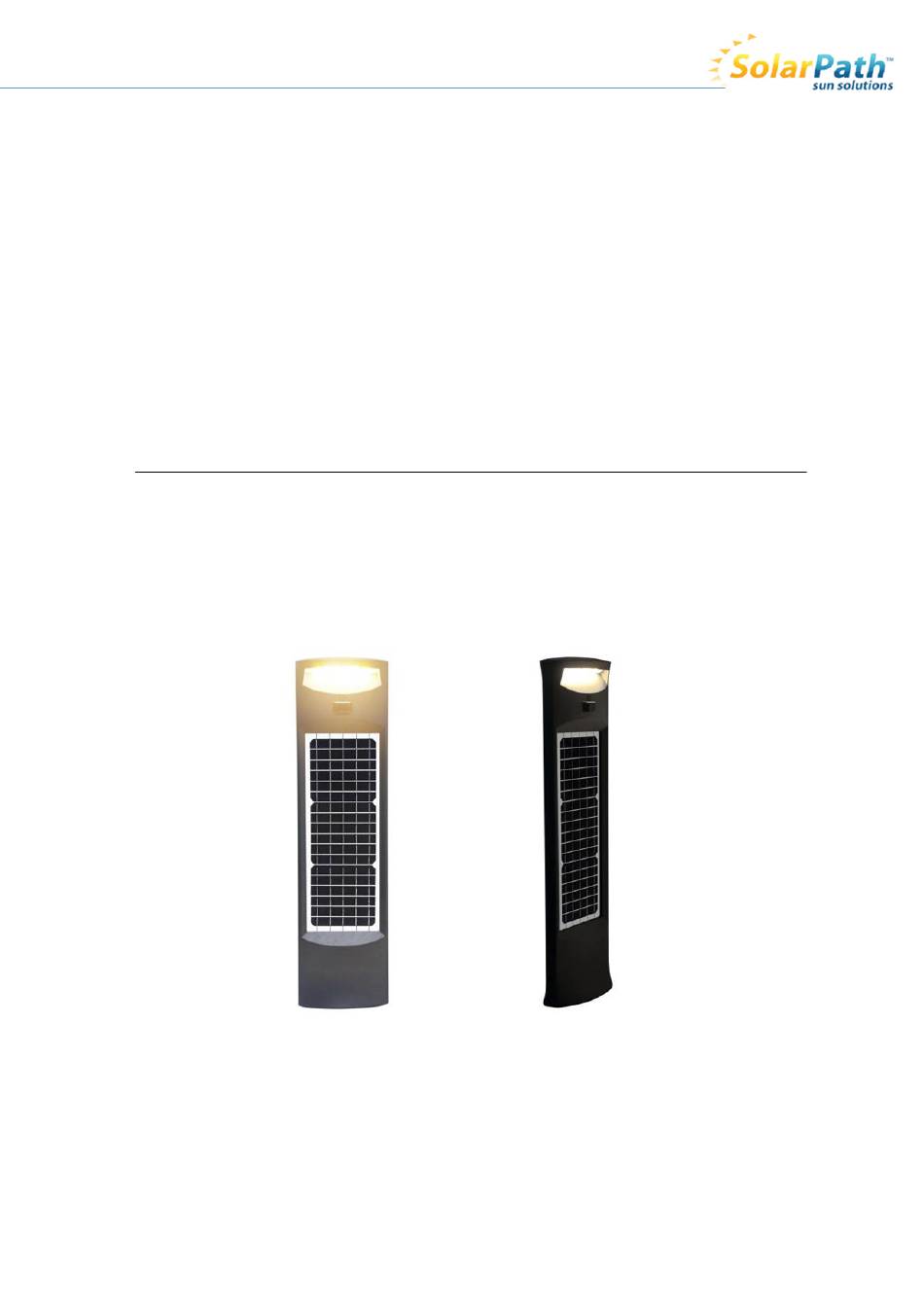

- Page 1 Solar bollards SPBS3 Installation instructions 123 Town Square Pl., #333 Tel. +1.201.490.4499 Jersey City, NJ 07310 www.solarpathusa.com...
- Page 2 Caution 1. The lamp is equipped with an internal replaceable battery pack. If you need to replace the battery pack, please contact the seller. 2. Because this lamp is solar powered, please install it in a location where can get enough sunshine. 3.
- Page 3 Working mode Product dimensions mode Remarks: There is one button on each side of the lamp. Press the button to select the working mode for each side individually. The lamp can be charged in any mode. First press of the button is Sensor Mode. Second press of the button is Constant Lighting Mode.
- Page 4 Installation ③ ② ① Contents ⑤ ④ 1. Verify that lamp, accessories and tools are present. ① 2. Drill four holes of 0.39-inch width and 2.75-inch depth on the flat concrete ground. (picture 3. Insert the expansion screws into the holes and lock the expansion screws with Allen Wrench. ②-③...
- Page 5 ② ② ① ③ ④ Verify that lamp, accessories and tools are present. ① Insert two spikes into the lawn with a space of 2.36 - 4.72 inches between them. (Picture ② Use screws and gaskets to fix the metal bracket onto the surface of spikes. (Picture Put the lamp onto the metal bracket and align the four holes, then lock the lamp and metal ③-④...
- Page 6 Battery replacement ① ② ④ ③ ① 1. Loosen the four screws on the side of the lamp and lift up the lamp. (see picture 2. Loosen the battery cover screw, open the battery cover, and replace the corresponding battery ②...
