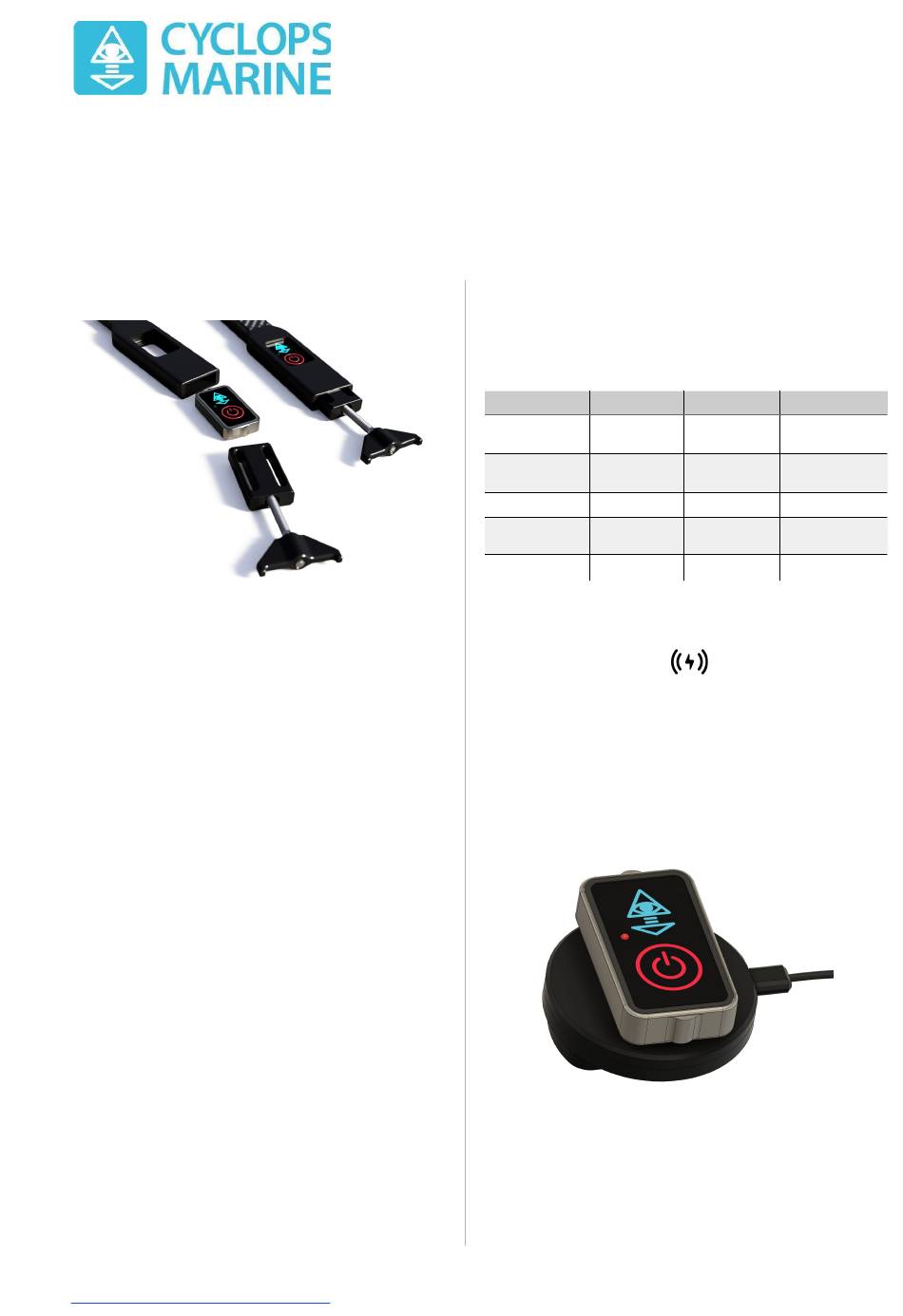

Cyclops Marine smartbatten User Manual

smartbatten Guide
Product Description
The smartbatten system allows batten tension to be measured directly, in real time, to ensure repeatable batten tensions.
The sensors are factory calibrated, with a wireless load output that can be read by a mobile phone or smartfittings gateway.
Installing the system

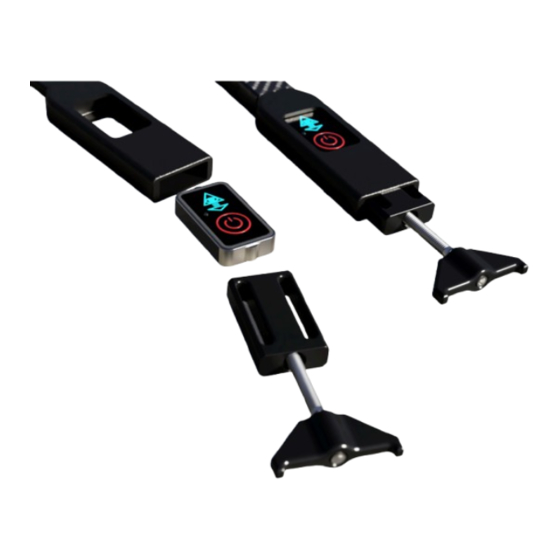

The smartbatten and system is designed to fit directly into
the CT22 batten, and may accommodate other battens if
required, or the sensor can be used as a standalone
compression load sensor. The supplied case and tensioner
assembly requires the batten to be shortened to
accommodate the sensing unit. See the smartbatten
System Dimensions drawing to remove the right amount
from the batten.
Safety
Please read all instructions before using smartbatten to
measure loads. Always perform a safety evaluation before
use to ensure that use of the load pin is not dangerous to
nearby people or property.
Overload
The WLL of the smartbatten must not be exceeded, as this
may cause damage to the internal instrumentation and will
invalidate the warranty.
SHOCK LOADING (i.e. stay failure) OR OVERLOADING TO
150% OF MWL WILL RESULT IN PERMANENT DAMAGE TO
THE SENSOR THAT WILL REQUIRE RECALIBRATION.
A significant impact to the body of the smartbatten can
affect the calibration. This would require the device to be
returned to Cyclops for inspection and re-calibration.
info@cyclopsmarine.com
smartpower button
smartbatten devices are controlled using the power button
on the front. There are 3 modes: powered on, extended
use & off.
Mode Powered on
A quick button Green flash
press shows
How to Long press to
activate mode green flash
Frequency 1 Hz
Ideal for General
usage
Battery life 2000 hrs
Extended use & powered off modes can only be activated
from powered on mode.
Wireless charging
To charge a smartbatten sensor, plug the supplied charger
into a USB port or power pack (not supplied). Two blue
flashes indicate it has power. Place the sensor onto the
charger with the wireless charging logo facing the charger.
To indicate charging, the blue LED on the charger is on
continuously and the LED on the sensor flashes red.
Figure 2: The sensor LED will flash red while charging
A full battery charge will take approximately one hour and
the LED will show constant green light when fully charged.
smartbatten guide issue 1 EN
Extended use Powered off
Red flash Red flash
Long press to Very long press
red flash to red flash x2
0.25Hz No data
Battery Shipping/
saving storage
8000 hrs 2 years
