smarttune²guide

For load display, see 'App Instructions', 'Gateway Install Guide' and 'Gateway Instructions' before sensor installation.

Product Description

smarttune² is an innovative solution for accurate, live measurement of rigging load. Simple to retro-fit at the dock,

smarttune² makes repeatable standing rigging load data available through precision-designed, wireless technology.

Designed to replace existing double acting turnscrews, it allows you to record and repeat your fast rig settings, creating the

optimum sail shape and the best racing performance, in all conditions.

How it works...

Simply unthread the existing turnscrew and screw on smarttune². Easily connect the sensor to your phone via the latest

smartphone app or to marine electronics via optional smarttune² Gateway for immediate load data.

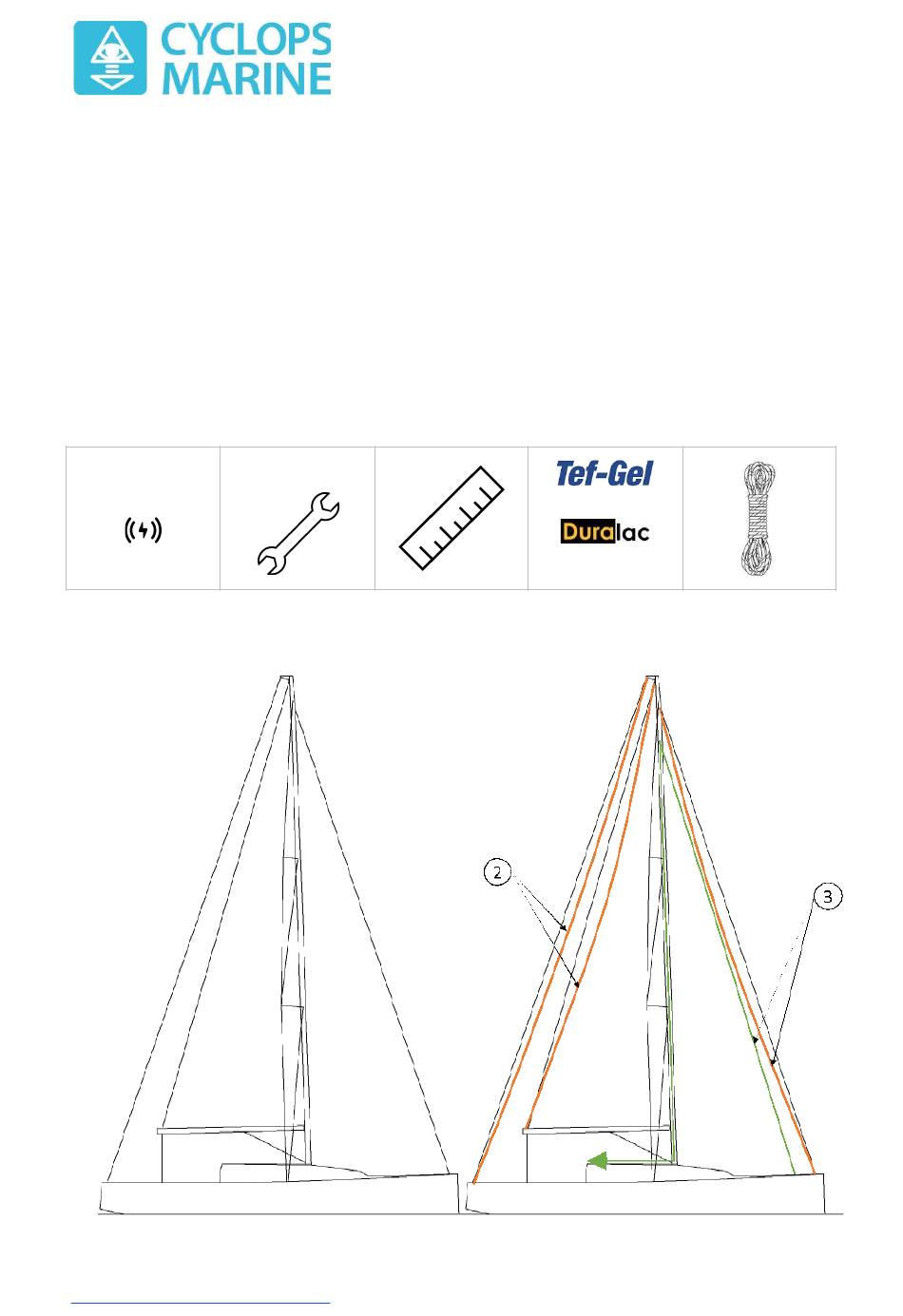

Installation

smarttune2

1. If installing smarttune² with a gateway, follow 'Gateway install guide' before installing smarttune².

2. Release backstay & mainsheet completely, remove any mast shims and de-jack mast (if applicable).

3. Secure a halyard to a hardpoint near the chain-plate. Tension halyard until stay sag visible. Secure halyard and attach

another halyard near chainplate as a safety.

info@cyclopsmarine.com

Or similar

smarttune² guide issue 2 EN

Need help?

Do you have a question about the smarttune2 and is the answer not in the manual?

Page 1 Simply unthread the existing turnscrew and screw on smarttune². Easily connect the sensor to your phone via the latest smartphone app or to marine electronics via optional smarttune² Gateway for immediate load data. Installation smarttune2 Or similar 1. If installing smarttune² with a gateway, follow ‘Gateway install guide’ before installing smarttune².
Page 2 4. Remove split pins/Velcro from turnscrew studs. 5. Measure a reference stay length using ruler or verniers. e.g. distance between stud ends inside the turnscrew. 6. Use rope to secure stay to a hardpoint. 7. Unscrew existing turnscrew using the spanners. Ensure that stay is secure before completely disconnecting turnscrew. Once the turnscrew is free from the upper and the lower threads stay will hang.
Page 3 Frequency 1Hz (custom available on request) Marine Gateway should be used. Scan the applicable QR code below for instructions. Accuracy ±1% of MWL within 0-40ºC Mobile app instruction: Body Material SS 316L, Brass threaded inserts Housing Material Acetal, IP67 rated Battery Lithium Polymer, 0.925Wh (1/4”...
