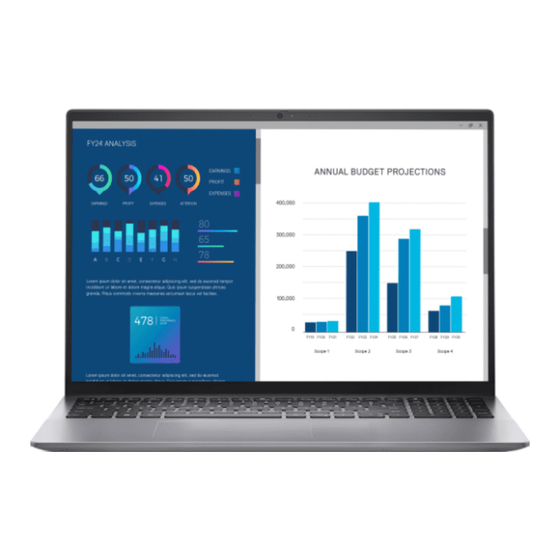

DELL laptop Vostro 5630 (NOT21984)

Tehnoteka je online destinacija za upoređivanje cena i karakteristika bele tehnike,

potrošačke elektronike i IT uređaja kod trgovinskih lanaca i internet prodavnica u Srbiji.

Naša stranica vam omogućava da istražite najnovije informacije, detaljne karakteristike

i konkurentne cene proizvoda.

Posetite nas i uživajte u ekskluzivnom iskustvu pametne kupovine klikom na link:

https://tehnoteka.rs/p/dell-laptop-vostro-5630-not21984-akcija-cena/

Need help?

Do you have a question about the NOT21984 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dell NOT21984

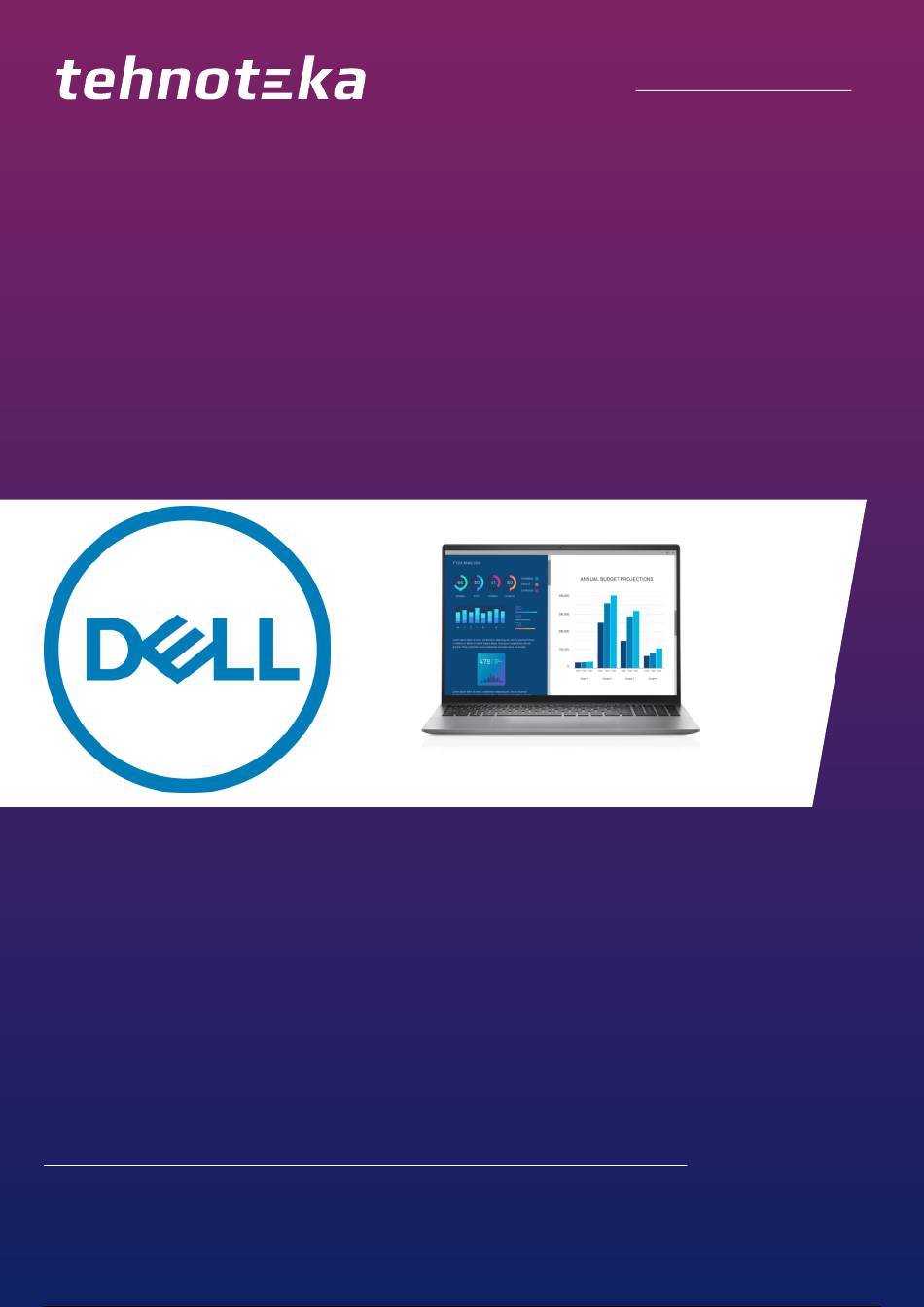

Page 1 Uputstvo za upotrebu (EN) DELL laptop Vostro 5630 (NOT21984) Tehnoteka je online destinacija za upoređivanje cena i karakteristika bele tehnike, potrošačke elektronike i IT uređaja kod trgovinskih lanaca i internet prodavnica u Srbiji. Naša stranica vam omogućava da istražite najnovije informacije, detaljne karakteristike i konkurentne cene proizvoda.
Page 2 Vostro 16 5630 Setup and Specifications Regulatory Model: P117F Regulatory Type: P117F006 October 2023 Rev. A01...
Page 3 A WARNING indicates a potential for property damage, personal injury, or death. © 2022-2023 Dell Inc. or its subsidiaries. All rights reserved. Dell Technologies, Dell, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.
Page 4 Keyboard....................................16 Touchpad..................................... 16 Power adapter..................................17 Battery....................................17 Display....................................18 Fingerprint reader (optional)............................19 GPU—Integrated................................19 GPU—Discrete.................................. 20 Operating and storage environment..........................20 Chapter 4: ComfortView Plus.......................21 Chapter 5: ComfortView......................22 Chapter 6: Keyboard shortcuts....................23 Chapter 7: Getting help and contacting Dell................25 Contents...
Page 5 To conserve battery power, the battery might enter power saving mode. Connect the power adapter and press the power button to turn on the computer. 2. Finish operating system setup. Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you: ● Connect to a network for Windows updates. NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted.
Page 6 SupportAssist proactively checks the health of your system's hardware and software. When an issue is detected, the necessary system state information is sent to Dell to begin troubleshooting. SupportAssist is preinstalled on most of the Dell devices running Windows operating system.
Page 7 Views of Vostro 16 5630 Right 1. SD-card slot Reads from and writes to the SD card. The computer supports the following card types: ● Secure Digital (SD) ● Secure Digital High Capacity (SDHC) ● Secure Digital Extended Capacity (SDXC) 2.
Page 8 Supports DisplayPort 1.4, Thunderbolt 4.0 and also enables you to connect to an external display using a display adapter. Provides data transfer rates of up to 40 Gbps for Thunderbolt 4.0. NOTE: You can connect a Dell Docking Station to the Thunderbolt 4.0 ports. For more information, search in the Knowledge Base Resource at www.dell.com/support. NOTE: A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device.
Page 9 NOTE: The highlighted area indicates the actual active fingerprint reader area and the image is for illustration purposes only. NOTE: The power-status light on the power button is available only on computers without the fingerprint reader. Computers that are shipped with the fingerprint reader that is integrated on the power button will not have the power-status light on the power button.
Page 10 Provide audio output. 2. Service Tag and regulatory labels The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information. The regulatory label contains regulatory information of your computer.
Page 11 Service Tag The service tag is a unique alphanumeric identifier that allows Dell service technicians to identify the hardware components in your computer and access warranty information. Views of Vostro 16 5630...
Page 12 Specifications of Vostro 16 5630 Dimensions and weight The following table lists the height, width, depth, and weight of your Vostro 16 5630. Table 2. Dimensions and weight Description Values Height: Front height 15.67 mm (0.62 in.) Rear height 17.95 mm (0.71 in.) Width 356.78 mm (14.05 in.) Depth...
Page 13 Chipset The following table lists the details of the chipset supported by your Vostro 16 5630. Table 4. Chipset Description Values Chipset Integrated in processor Processor Generation Intel Core i5/i7 DRAM bus width 64-bit Flash EPROM 32 MB PCIe bus Up to Gen 4 Operating system Your Vostro 16 5630 supports the following operating systems:...
Page 14 ● One M.2 2230 slot for solid-state drive ● One M.2 2230/2280 slot for solid-state drive NOTE: To learn more about the features of different types of M.2 cards, search in the Knowledge Base Resource at www.dell.com/support. Communications Ethernet Table 8. Ethernet specifications Description...
Page 15 Wireless module Table 9. Wireless module specifications Description Values Model number Intel AX211 Intel AX201 Transfer rate Up to 2400 Mbps Up to 2400 Mbps Frequency bands supported 2.4 GHz/5 GHz/6 GHz 2.4 GHz/5 GHz Wireless standards ● WiFi 802.11a/b/g ●...
Page 16 Camera The following table lists the camera specifications of your Vostro 16 5630. Table 11. Camera specifications Description Values Number of cameras Camera type RGB FHD Camera Camera location Front camera Camera sensor type CMOS-sensor technology Camera resolution: Still image 2.03 megapixel Video 1920 x 1080 (HD) at 30 fps...
Page 17 Media-card reader The following table lists the media cards supported by your Vostro 16 5630. Table 13. Media-card reader specifications Description Values Media-card type One SD card slot Media-cards supported ● Secure Digital (SD) ● Secure Digital High Capacity (SDHC) ●...
Page 18 Table 15. Touchpad specifications (continued) Description Values Touchpad dimensions: Horizontal 115 mm (4.53 in.) Vertical 80 mm (3.15 in.) Touchpad gestures For more information about touchpad gestures available on Windows, see the Microsoft knowledge base article at support.microsoft.com. Power adapter The following table lists the power adapter specifications of your Vostro 16 5630. Table 16.
Page 19 2hr ( Express charge ), 3hr ( Standard charge) hours (when the NOTE: Control the charging time, duration, start and computer is off) end time, and so on using the Dell Power Manager application. For more information on the Dell Power Manager see, Me and My Dell on www.dell.com. Coin-cell battery...
Page 20 Table 18. Display specifications (continued) Description Option one Option two Option three Megapixels 2.30 2.30 4.09 Color gamut NTSC 45% sRGB 100%, typical sRGB 100%, typical Pixels Per Inch (PPI) Contrast ratio (typical) ● 800:1 (minimum) ● 1000:1 (minimum) ● 1000:1 (minimum) ●...
Page 21 Table 20. GPU—Integrated (continued) Controller External display support Memory size Processor ● One Thunderbolt 4 port NOTE: Intel Iris X with DisplayPort and Graphics will default Power Delivery to Intel UHD Graphics on computers with single-channel memory configuration. GPU—Discrete The following table lists the specifications of the discrete Graphics Processing Unit (GPU) supported by your Vostro 16 5630. Table 21.
Page 22 ComfortView Plus WARNING: Prolonged exposure to blue light from the display may lead to long-term effects such as eye strain, eye fatigue, or damage to the eyes. Blue light is a color in the light spectrum which has a short wavelength and high energy. Chronic exposure to blue light, particularly from digital sources, may disrupt sleep patterns and cause long-term effects such as eye strain, eye fatigue, or damage to the eyes.
Page 23 ComfortView mode can be enabled and configured using the Dell CinemaColor application. ComfortView mode complies with TÜV Rheinland's requirement for low blue light software solutions. Low blue light: Dell ComfortView software technology reduces harmful blue light emissions to make extended screen time easy on your eyes.
Page 24 Keyboard shortcuts NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations. Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions.
Page 25 Table 24. List of keyboard shortcuts (continued) Function key Behavior fn + Space bar Open Emoji menu fn + esc Toggle fn-key lock fn + left arrow Home fn + right arrow Keyboard shortcuts...
Page 26 Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Table 25. Self-help resources Self-help resources Resource location Information about Dell products and services www.dell.com My Dell app...
Page 27 Ovaj dokument je originalno proizveden i objavljen od strane proizvođača, brenda Dell, i preuzet je sa njihove zvanične stranice. S obzirom na ovu činjenicu, Tehnoteka ističe da ne preuzima odgovornost za tačnost, celovitost ili pouzdanost informacija, podataka, mišljenja, saveta ili izjava sadržanih u ovom dokumentu.
