MODEL NO:

PIC1007WP

Quick Installation Guide

Wireless-N IP Camera with Pan/Tilt

Version 1.30

(English / Indonesian)

BEFORE GETTING STARTED

This document is designed to aid you to get started with the device. If you experience problems following

these guides or need further information pertaining to the device, please visit our website at

www.prolink2u.com. All specifications are subject to the manufacturer's configuration at the time of

shipping and may change without prior notice, written or otherwise.

Need help?

Do you have a question about the PIC1007WP and is the answer not in the manual?

Questions and answers

Summary of Contents for PROLiNK PIC1007WP

Page 1 MODEL NO: PIC1007WP Quick Installation Guide Wireless-N IP Camera with Pan/Tilt Version 1.30 (English / Indonesian) BEFORE GETTING STARTED This document is designed to aid you to get started with the device. If you experience problems following these guides or need further information pertaining to the device, please visit our website at www.prolink2u.com.
Page 3 1. Package Contents IP Camera Quick Installation Guide MODEL NO: PIC1007WP Quick Installation Guide Wireless-N IP Camera with Pan/Tilt Version 1.00 (English / Indonesian ) BEFORE GETTING STARTED This document is designed to aid you to get started with the device. If you experience problems following these guides or need further information pertaining to the device, please visit our website at www.prolink2u.com.

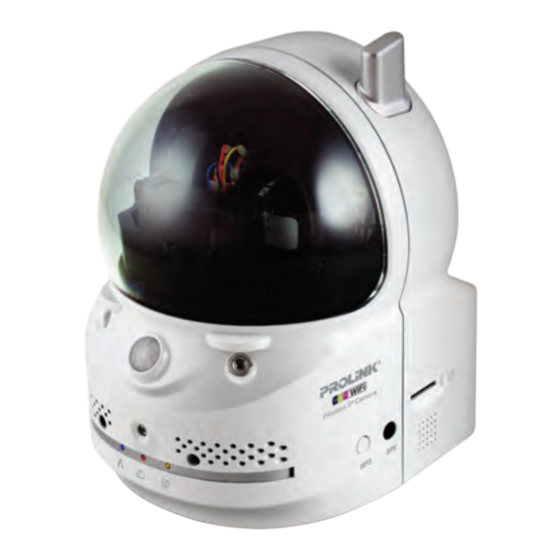

Page 4 2. Overview Dual Lens External Speaker Jack Power Jack IR LED Micro-SD Card Slot Bracket Screw Jack Internal Speaker Reset Button Microphone WPS Button Wall Mount Camera ID & Password Thermometer Light Detector Ethernet Indicator LED Bracket Screw Jack Internet Indicator LED Wall Mount SD Card LED Ethernet Jack...
Page 5 Important Notes Before Installation Before you start, make sure you have a router ready with Internet connection. mLiveView for Android device requires Android v2.3 or higher. mLiveView for iPhone/iPad requires iOS v4.3 or higher. LiveView for Windows requires Windows XP SP2 or higher. Your PC/Laptop computer should be at least 2.0 GHz (dual-core recommended) and memory 2GB.
Page 6 5. Wired Connection Setup Step 1 PIC1007WP NAT/Router Internet Power Adapter Connect power jack to camera and switch on the power Connect one end of Ethernet cable to the camera and another end to the NAT/Router Step 2 mLiveView mLiveView Download and install mLiveView app.
Page 7 Play Back Camera List Local Search WiFi Setup Information PROLiNK- Network Click on the WiFi Setup button to launch the Smart WiFi Setup process Read through the instructions or click Next to continue setup Key in the password of the WiFi router used by your mobile device for the wireless connection...
Page 8 6. Smart WiFi Setup Step 3 10-20cm Press the WPS button on the camera. The LEDs will start to flash in running order Align your mobile device with the QR code facing the camera in approximately 10~20cm distance Wait for the LEDs to flash simultaneously 3 times (or beep sound on models with built-in speaker) to indicate it has successfully scanned the QR code Remove your mobile device from the camera and wait for a pop-up message to prompt you to key in a name for your camera.
Page 9 Step 1 (Wireless) NAT/Router PIC1007WP Power on the camera. Do not connect the Ethernet cable to the camera Push the WPS button on both the router and the camera. The LEDs on the camera will start to flash in running order. Wait for the LEDs to flash simultaneously for 3 times indicating the...
Page 10 Manual Wireless Connection Setup Step 1 PIC1007WP NAT/Router Internet Power Adapter Connect power jack to camera and switch on the power Connect one end of Ethernet cable to the camera and another end to the NAT/Router Step 2 mLiveView mLiveView Connect your mobile device to the WiFi router that will be used to connect the camera Download and install mLiveView app.
Page 11 Manual Wireless Connection Setup Step 4 MAXIS PROLiNK_PPL1501N_000002 PROLiNK_H5004N PROLiNK_PPL1501N_000002 PROLiNK_WNR1008 PROLiNK_WNR1008 PROLiNK_PHA1061 Other... New Tulip Tap Arrow button then Camera Settings. Enter the admin username and password. (Default username is admin and leave the password blank) Tap Network then WiFi network. Enable WiFi feature of the camera. Select your WiFi network from the list and enter the WiFi password.
Page 12 LiveView Installation & Overview Step 1 www.prolink2u.com Wireless Pan/Tilt IP Camera Video Management Software PIC1007WP Wireless IP Quick Installation Guide Camera User Manual CD Contents: Management Software • • Quick Installation Guide Version 1.0 (Apr’13) Please Select An Option Browse CD...
Page 13 LiveView Installation & Overview Step 3 If you want to remotely view a camera from outside of your local LAN and the camera ID/Password is not stored in the Camera List, you can manually add the camera by right-click on the Camera List to show options Select New Camera Give a name for your remote camera and enter the Camera ID and Password Disk Space Available...
Page 14 9. mLiveView App Installation mLiveView is available for Android and iOS devices. For installation use either one of the methods below : Using QR Code to install Requires a QR Code scanner app installed on your mobile/tablet device. Open the scanner app and point the device's camera to the below QR Code. The QR Code is also printed on the packaging box.
Page 15 10. mLiveView App Overview Play Back Camera List Local Search WiFi Setup Information Add New IP Camera Change camera settings Record live video to mobile storage Playback recorded video from mobile Take snapshot of live video Camera list Live video stream from camera Search camera in local area network Enable microphone for 2-way Communication...
Page 16 11. Web Con guration Page Access Web Configure Start the LiveView software. Your camera will be detected in the Auto Search column, right-click on the Camera ID to see the Web Configure option You will be prompted with a security dialog, login with the below credential and click OK. Username: admin and default is without any password EN 14...
Page 17 11. Web Con guration Page Information Displays the camera current settings, information and recording status. Network Wired Network: Setup wired network settings. Default is set to obtain IP automatically. WiFi Security: Setup WiFi connection and security. Built-in WiFi scan for easy setup. Advanced: Setup PPOE network settings.
Page 18 12. Frequently Asked Questions 1. Why the LED indicators on the camera are flashing in sequence? Please ensure your Ethernet or WiFi connection are setup properly and check you have an Internet connection. When connected to local network, the blue LED will be constant. When connected to Internet, red LED will be constant.
Page 19 1. Package Contents IP Camera Lembar Panduan Instalasi MODEL NO: PIC1007WP Quick Installation Guide Wireless-N IP Camera with Pan/Tilt Version 1.00 (English / Indonesian ) BEFORE GETTING STARTED This document is designed to aid you to get started with the device. If you experience problems following these guides or need further information pertaining to the device, please visit our website at www.prolink2u.com.
Page 20 2. Penjelasan Dual Lens External Speaker Jack Power Jack LED IR Slot Kartu Micro-SD Bracket Scrup Jack Speaker Tombol Reset Microphone Tombol WPS Gantungan Dinding Camera ID & Password Thermometer Detector Cahaya Indicator LED Ethernet Bracket Scrup Jack Indicator LED Internet Gantungan dinding LED Kartu Micro SD Ethernet Jack...
Page 21 Catatan Penting Sebelum Instalasi Sebelum Anda mulai, pastikan Anda memiliki router siap dengan koneksi internet. mLiveView untuk perangkat Android membutuhkan Android v2.3 atau lebih tinggi. mLiveView untuk iPhone / iPad membutuhkan iOS v4.3 atau lebih tinggi. LiveView untuk Windows memerlukan Windows XP SP2 atau lebih tinggi. PC / Laptop komputer harus setidaknya 2,0 GHz (disarankan dual-core) dan memori 2GB.
Page 22 5. Pengaturan Koneksi Kabel Langkah 1 PIC1007WP NAT/Router Internet Power Adaptor Hubungkan colokan listrik ke kamera dan mengaktifkannya Sambungkan salah satu ujung kabel Ethernet ke kamera dan ujung lainnya ke NAT / Router Langkah 2 mLiveView mLiveView Unduh dan install aplikasi mLiveView...
Page 23 Play Back Camera List Local Search WiFi Setup Information PROLiNK- Network Klik pada tombol Pengaturan WiFi untuk memulai proses penataan WiFi Cerdas Bacalah petunjuk atau klik Next untuk melanjutkan setup Masukkan password dari router WiFi yang digunakan oleh perangkat mobile Anda untuk...
Page 24 6. Pengaturan WiFi Cerdas Langkah 3 10-20cm Tekan tombol WPS pada kamera. LED akan mulai berkedip dalam menjalankan perintah Sejajarkan perangkat mobile Anda dengan kode QR menghadap kamera di jarak sekitar 10 ~ 20cm. Tunggu LED berkedip secara bersamaan 3 kali (atau suara bip pada model dengan built-in speaker)untuk menunjukkan telah berhasil memindai kode QR.
Page 25 7. Pengaturan Tombol WPS Langkah 1 (Wireless) NAT/Router PIC1007WP Hidupkan kamera. Jangan hubungkan kabel Ethernet ke kamera Tekan tombol WPS pada keduanya, router dan kamera. LED pada kamera akan mulai ke berkedip dalam menjalankan perintah. Tunggu LED berkedip secara bersamaan selama 3...
Page 26 Pengaturan Manual Wireless Langkah 1 PIC1007WP NAT/Router Internet Power Adaptor Hubungkan colokan listrik ke kamera dan mengaktifkannya Sambungkan salah satu ujung kabel Ethernet ke kamera dan ujung lainnya ke NAT / Router Langkah 2 mLiveView mLiveView Hubungkan perangkat mobile Anda ke router WiFi yang akan digunakan untuk...
Page 27 Pengaturan Manual Wireless Langkah 4 MAXIS PROLiNK_PPL1501N_000002 PROLiNK_H5004N PROLiNK_PPL1501N_000002 PROLiNK_WNR1008 PROLiNK_WNR1008 PROLiNK_PHA1061 Other... New Tulip Tekan tombol Panah kemudian Pengaturan Kamera. Masukkan admin username dan sandi (Username default adalah admin dan Sandi biarkan kosong) Tekan Jaringan setelah itu jaringan WiFi. Aktifkan fitur WiFi kamera Pilih jaringan WiFi Anda dari daftar dan masukkan password WiFi.
Page 28 Instalasi LiveView& Penjelasan Langkah 1 www.prolink2u.com Wireless Pan/Tilt IP Camera Video Management Software PIC1007WP Wireless IP Quick Installation Guide Camera User Manual CD Contents: Management Software • Quick Installation • Guide Version 1.0 (Apr’13) Please Select An Option Browse CD...
Page 29 Instalasi LiveView & Penjelasan Langkah 3 Jika Anda ingin melihat kamera dari luar jaringan lokal Anda dan apabila kamera ID / Sandi tidak disimpan dalam Daftar Kamera, Anda dapat secara manual menambahkan kamera dengan klik kanan pada Daftar Kamera untuk menampilkan opsi Pilih New Camera Berikan nama untuk kamera jauh Anda dan masukkan ID dan Sandi Kamera Kapasitas penyimpanan...
Page 30 9. Instalasi mLiveView mLiveView tersedia untuk perangkat Android dan iOS. Untuk penggunaanya dapat di lakukan dengan cara salah satu dari metode berikut: Menggunakan QR Kode untuk menginstalasi Membutuhkan scanner Kode QR aplikasi diinstal pada ponsel Anda / perangkat tablet. Buka aplikasi scanner dan arahkan kamera QR Code. QR Code juga dicetak pada kotak kemasan. iPad iPhone Android...
Page 31 10. Penjelasan mLiveView Play Back Camera List Local Search WiFi Setup Information Tambahkan IP kamera baru Ganti setingan kamera Rekam langsung video ke penyimpanan ponsel Putar rekaman video dari ponsel Mengambil gambar langsung dari video Data kamera Video langsung dari camera Pencarian kamera pada local area network Hidupkan microphone untuk komunikasi 2 arah...
Page 32 11. Pengaturan Web base Access Web Configure Jalankan LiveView. Kamera Anda akan terdeteksi di kolom AutoSearch, klik kanan pada ID Kamera untuk melihat opsi Configurasi web Anda akan diminta untuk mengisi kolom login dan isikan seperti bawah ini lalu klik OK. Username: admin dan pada kolom sandi di kosongkan ID 14...
Page 33 11. Pengaturan Web base Informasi Tampilan konfigurasi kamera, information dan status rekaman. Network Wired Network: Pengaturan konfigurasi jaringan kabel. Settingan awal adalah obtain IP automatically. WiFi Security: Pengaturan koneksi WiFi dan keamanan. Di lengkapi dengan WiFi scan untuk memudahkan pengaturan. Advanced: Pengaturan setting jaringan PPOE.
Page 34 12. Pertanyaan yang sering diajukan 1. Mengapa indikator LED pada kamera berkedip secara berurutan? Pastikan Ethernet atau koneksi WiFi setup dengan benar dan periksa apakah anda memiliki sambungan Internet. Ketika terhubung ke jaringan lokal, LED biru akan konstan. Dan bila tersambung ke Internet, LED Merah akan konstan.
Page 40 Register Online For Your Product Warranty @ www.prolink2u.com/register PROLiNK® is a trademark of FIDA INTERNATIONAL (S) PTE LTD and is manufactured under its authority. All other brands, products, services, logos and company names mentioned herein are trademarks of their respective owners. All specifications, designs and contents are subject to changes without prior...
