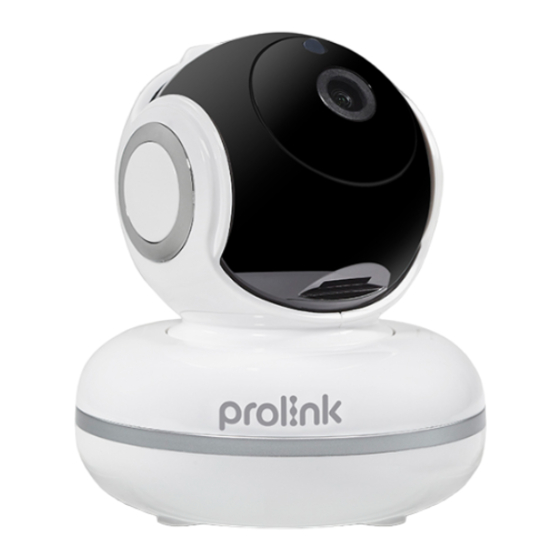

- Page 1 Model No: PIC3003WP Quick Installation Guide Full-HD Wireless IP Camera (Pan/Tilt) Version 3.00 (English | Indonesian)
-
Page 2: Package Contents
Package Contents Micro Type A Note: 1. The illustrations in this document may appear different from your model 2. If any of above item is not packed in your package when opening, please consult your reseller immediately Overview Front View Rear View Bottom View... -
Page 3: Getting Started
• Make sure the phone is connected to the router wirelessly. • Camera is operating only at 2.4GHz Wi-Fi standard. Step 2. Download, install, and create an account through Prolink mEzee App. Scan below QR code to download from Google Store or Apple App Store. - Page 4 Insert a microSD Card into the slot to enable recording function. microSD Card How to insert microSD Card Step 1. Manually tilt the PIC3003WP’s camera lens upwards until the maximum tilt angle. Step 2. Ensure that the microSD Card contact pin is facing up.
- Page 5 Step 3. Insert the microSD Card into the microSD Card slot. The microSD Card will be secured once you feel the “click”. To release, gently push the microSD Card again for it to bounce back out. Step 4. You may select your preferred recording mode as follows: (a) Event Recording (default) (b) Non-Stop (ii)
-
Page 6: Isi Kemasan
Isi Kemasan Micro Type A Catatan: 1. Ilustrasi dalam dokumen ini mungkin tampak berbeda dari model Anda 2. Jika salah satu item diatas tidak ditemukan didalam paket Anda ketika dibuka, segera konsultasikan dengan reseller Anda Keterangan Gambar Tampak Depan Tampak Belakang Tampak Bawah... - Page 7 Antaramuka Sensor Cahaya Slot Kartu microSD Tombol Reset Microfon Input Daya (5V 1A) Lensa Kamera LED Inframerah Speaker Lubang Pemasangan Catatan: Ilustrasi di dalam dokumen ini mungkin akan berbeda dari model perangkat yang Anda miliki. Mulai Langkah 1. Tempatkan IP kamera dan telepon pintar pada jarak sekitar 1 ~ 3 kaki dari router.
- Page 8 Penyimpanan Kartu microSD (Opsional) Masukkan kartu microSD ke dalam slot untuk mengaktifkan fungsi perekaman. Kartu microSD Cara memasukkan Kartu microSD Langkah 1. Arahkan secara manual lens kamera PIC3003WP ke atas sampai maksimum. Langkah 2. Pastikan pin kontak Kartu microSD menghadap ke atas.
- Page 9 Langkah 3. Masukkan Kartu microSD ke dalam slot Kartu microSD. Kartu microSD akan diamankan setelah Anda merasakan "klik". Untuk melepaskan, dorong perlahan Kartu microSD lagi agar memantul kembali. Langkah 4. Anda dapat memilih mode perekaman pilihan Anda sebagai berikut: (a) Rekaman Peristiwa (bawaan) (b) Tanpa henti (ii) (iv)
- Page 10 Register online for your Product Warranty at www.prolink2u.com Prolink is a registered trademark of Fida International (S) Pte Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. Product images are purely for illustrative purposes and may defer from the actual product.
