Deutsch DTP Series Assembly Instructions

DEUTSCH DTP SERIES DEUTSCH DTP SERIES
DEUTSCH DTP SERIES DEUTSCH DTP SERIES
CONNECTOR ASSEMBLY INSTRUCTIONS CONNECTOR ASSEMBLY INSTRUCTIONS
CONNECTOR ASSEMBLY INSTRUCTIONS CONNECTOR ASSEMBLY INSTRUCTIONS

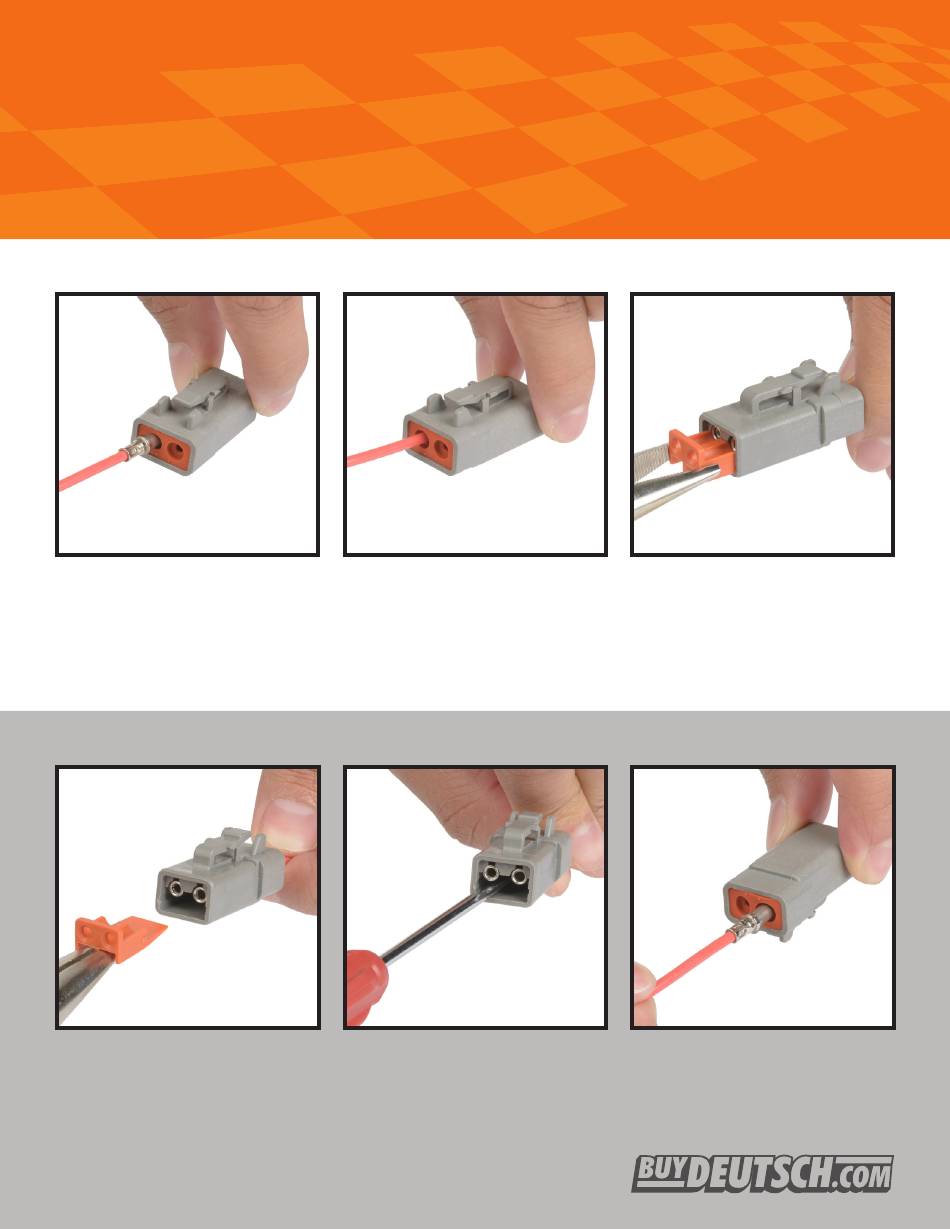

INSERTING CONTACTS INTO PLUGS
STEP 1:
Grasp the crimped contact
roughly one inch behind the
contact barrel. Then hold the
connector with rear grommet
facing you.
REMOVING CONTACTS FROM PLUGS
STEP 1:
Remove the orange wedgelock
using a flathead screwdriver or
pliers to pry it straight out.
STEP 2:
Push the contact straight into
the connector grommet until a
click is felt. A slight tug will con-
firm that it's properly locked
into place.
STEP 2:
To remove the contacts, gently
pull wire backwards, while at the
same time releasing the locking
finger by moving away from the
contact with a screwdriver
1 of 2
STEP 3:
Once all contacts are in place,
insert the orange wedgelock.
The orange wedgelock will
snap into place.
STEP 3:
Hold the rear seal in place, as
removing the contact will dis-
place the seal.
