Deutsch QC24-7501P Termination Instructions

Quick connect coaxial connector

Advertisement

PLEASE READ AND FULLY UNDERSTAND THESE INSTRUCTIONS PRIOR TO TERMINATING THE CONTACTS.
1.

ASSEMBLY SEQUENCE.

A.

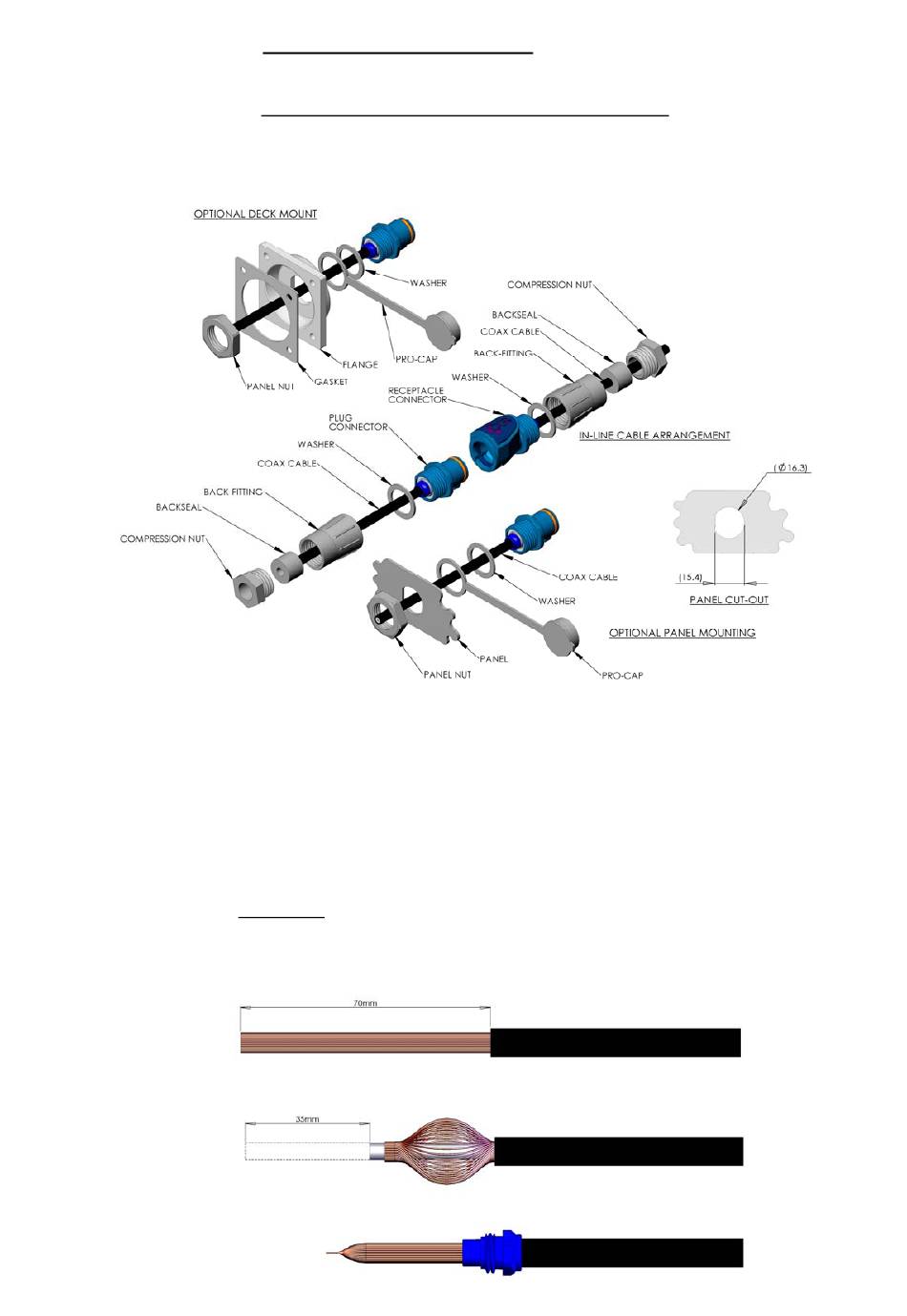

Determine the appropriate mounting method and back-fittings to suit the application. Only remove enough cable jacket to allow
installation of contacts. (See stripping lengths shown in diagram above). Jacket must pass through backseal when fitted in order to
maintain sealing performance.
B.
Locate back-fitting components, seals, washers, panel nuts etc. in the correct order and orientation over wires as shown in the example
above.
C.
Prepare cable as shown below.
D.
Solder contacts as shown below.
E.
Slide back-fitting components into place and tighten to provide a water resistant seal. Locate pro-cap over front face of plug and pinch
stem to retain. Important note. When the connector is panel mounted or deck mounted using the panel nut, the nut must be tightened to
provide a water resistant seal to a maximum torque setting of 2.25Nm (20lb/ins).
2.

CONTACT TO CABLE TERMINATION

A.
Trim back the outer insulation of the cable to a length of 70mm. Ensure that the braid is not damaged.
B.
Bush back braid and trim 35mm from the dielectric and conductor.
C.
Pull braid forward over remaining dielectric and place end nut over cable.
TERMINATION INSTRUCTIONS FOR THE
QUICK CONNECT COAXIAL CONNECTOR
IT IS THE USER'S RESPONSIBILITY TO USE THIS PRODUCT WITH CARE.
IF IN DOUBT CONSULT A QUALIFIED ELECTRICAL ENGINEER.
