Summary of Contents for PAJ GPS PET Finder 2.0

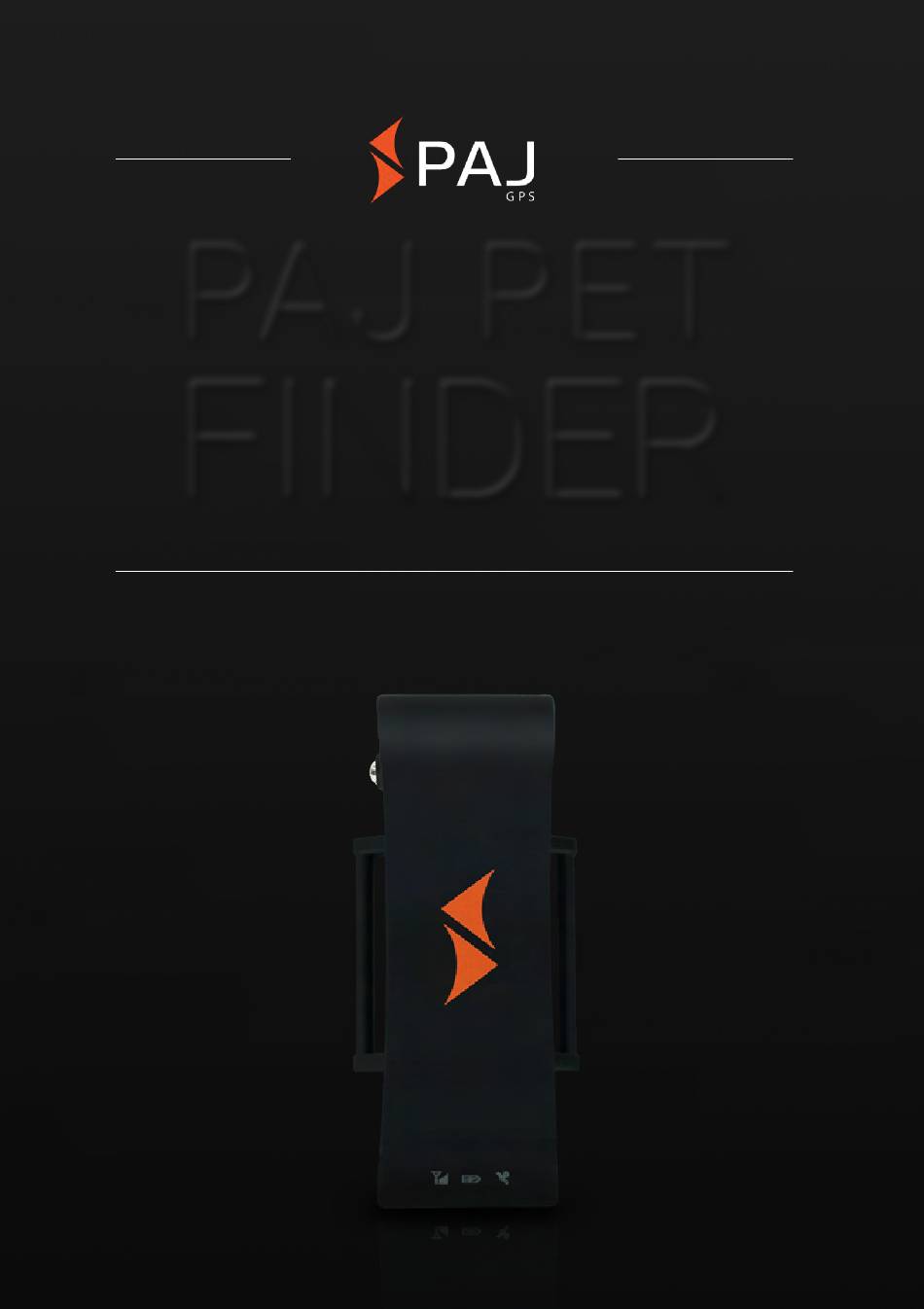

- Page 1 PAJ PET FINDER...
- Page 2 We update our user manuals on a regular basis, in order to keep them up to date. The latest version can be viewed at any time at: *the M2M SIM card is already inside your paj-gps.com/finder FINDER and is not replaceable. PAJ PET Finder 2.0 by PAJ V 1.2 EN © PAJ UG (haftungsbeschränkt)
- Page 3 1.2 Product description 1.3 Instructions for charging On/Off button You should fully charge the FINDER before using it for the first time. Please Speaker proceed as follows: Connect the supplied charging cable to the charging contacts of the FINDER. LED signals Charging contacts NOTE! To activate, you need the device ID.
- Page 4 Then check the battery level in the FINDER-Portal. The PAJ PET Finder 2.0 offers a battery life of approx. 5 days without charging in between! However, it should be noted that the runtime depends on the utilisation, the set transmission interval and the use of Wifi Home Zones.
- Page 5 1.5 Start-up 1.6 Use Once the activation is successful, you can start the PAJ PET Finder 2.0. The power button is located on the side of the FINDER (see illustration). To turn on: Press the button once briefly to turn on the device. The small LEDs will blink and the device will beep several times.
- Page 6 1.7 Short description FINDER-Portal Application menu View statistics, device settings, application settings, Update interval alert summary, extra features e.g. logbook etc. Alerts and activities Last activity, unread notifications, Device position timeline PAJ Logo Update page/refresh Distance travelled Device list Overview devices, alert settings, travelled routes, customize device display...
- Page 7 Using the PAJ Portal app or the web application of the FINDER Portal (v2), you can The PAJ PET Finder 2.0 sends its location information by default every 60 seconds to designate the surrounding Wi-Fi networks (only 2.4GHz networks) as Wifi Homes. The the FINDER portal when in motion.
- Page 8 (v2). To do this, open the „Commands“ tab for the desired device and then you can view the available commands. Signal Meaning The following commands are available for the PAJ PET Finder 2.0: The orange LED is on Signal available The orange LED flashes every 2-3 sec. Searching for a signal...
- Page 9 1.13 Technical data 1.12 Alerts Movement/Shock alert Weight 36 g Receive a notification as soon as your GPS tracker is either without bracket: 77 x 27 x 17 mm Dimensions moved or shaken. with bracket: 77 x 33 x 17 mm Battery time up to 5 days*...
- Page 10 Safety 1.14 Safety Instructions WARNING! RISK OF ELECTRIC SHOCK! Signal words A faulty electrical installation or a mains voltage that is too high can lead to an The following signal words are used in these operating instructions: electric shock. • Before use, make sure that the mains voltage of the socket corresponds with NOTE! the information on the type plate.
- Page 11 • PAJ GPS shall not be liable for any damage or loss (whether in contract or tort, NOTE! including negligence) arising from your failure to comply with these warnings and instructions.
- Page 12 Declaration of conformity WARNING! RISK OF DAMAGE! Hereby, PAJ UG (haftungsbeschränkt) declares that the tracker, PAJ PET Finder 2.0, is in conformity with the Directive 2014/53/EU. The complete text of the EU Declaration Below you will find information and instructions on how to clean the GPS tracker: of Conformity can be found at the following Internet address: paj-gps.de/konformitaetserklaerung/...
- Page 13 1.15 Disposal of used batteries 1.16 Disposal of electric devices The following note is addressed to those who use batteries or products with The Electrical and Electronic Equipment Act (ElektroG) contains a large number of requirements for the handling of electrical and electronic equipment. The most im- products with built-in batteries and who will not resell them in the form in which portant ones are summarised here: they were supplied to them (end users).
- Page 14 PAJ UG (haftungsbeschränkt) Hohe Straße 61 PAJ UG (haftungsbeschränkt) 51570 Windeck Hohe Straße 61, 51570 Windeck Germany Germany Mail: support@paj-gps.com Phone: +49 2292 39 499 59 Web: paj-gps.com The PAJ GPS Team wishes you to enjoy your PAJ PET Finder 2.0!
