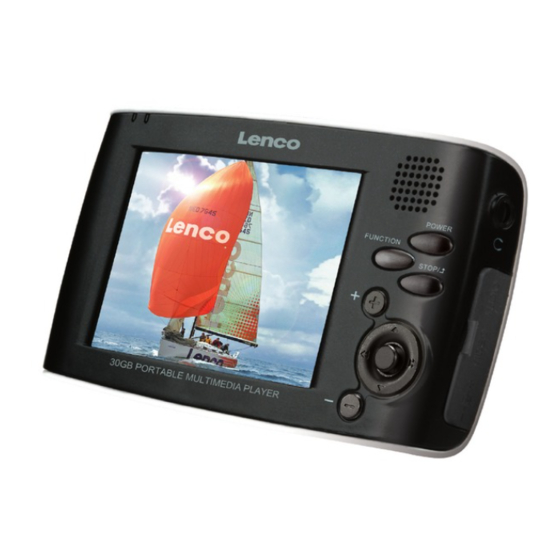

30gb portable media player with 3.5” tft lcd and cf card slot
Hide thumbs Also See for XEMIO-3530:
Table of Contents

Advertisement

Quick Links

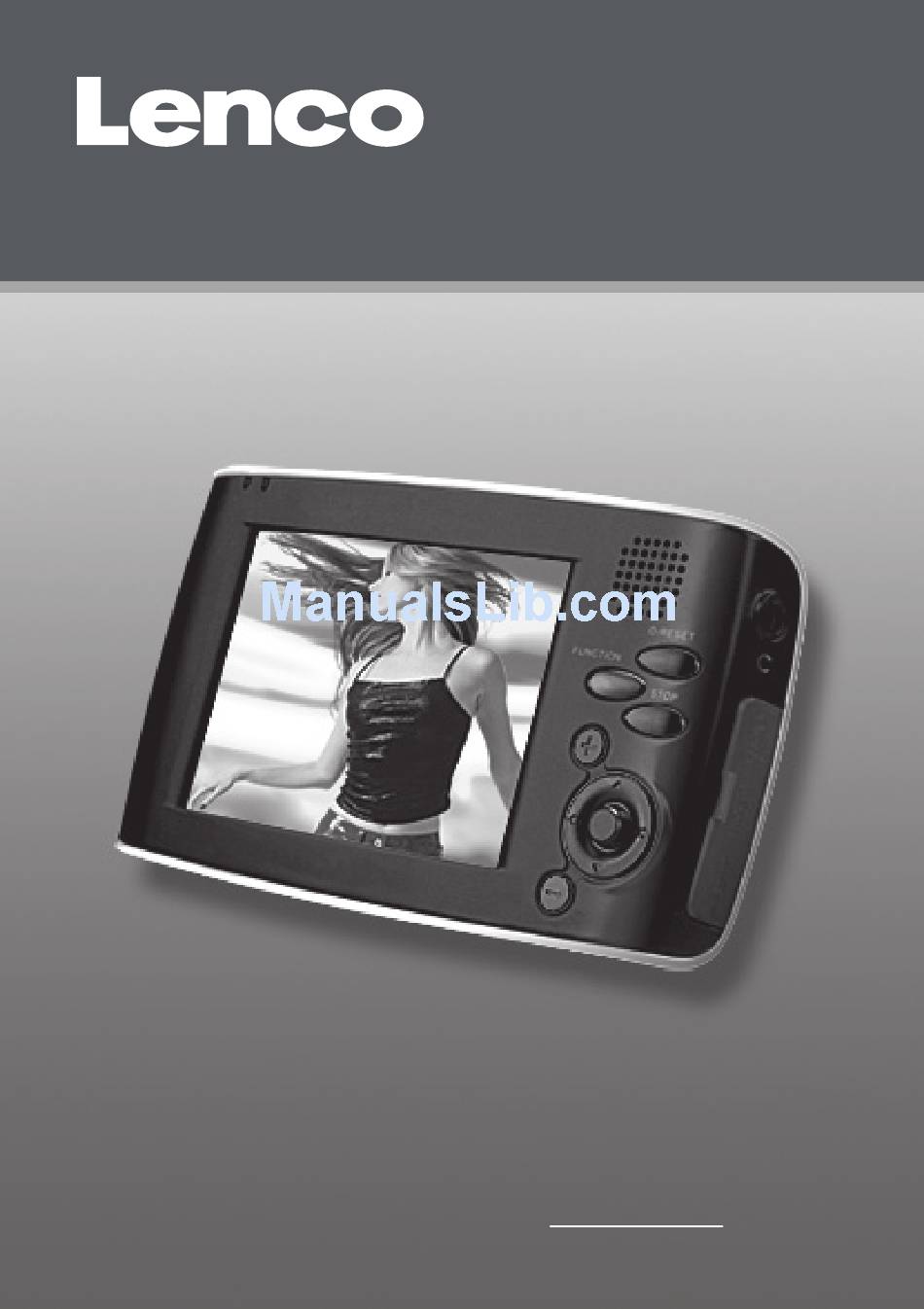

XEMIO-3530
30GB Portable Media Player with
3.5" tFt lcD and cF card slot
InstructIon Manual
InstructIon Manual
Please read this manual carefully before operation.
Please read this manual carefully before operation
For information and support, www.lenco.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XEMIO-3530 and is the answer not in the manual?

Questions and answers

Summary of Contents for LENCO XEMIO-3530

  • Page 1 XEMIO-3530 30GB Portable Media Player with 3.5” tFt lcD and cF card slot InstructIon Manual InstructIon Manual Please read this manual carefully before operation. Please read this manual carefully before operation For information and support, www.lenco.eu...
  • Page 2: Precautions

    Enter below the serial number that is located on the bottom of the unit. Retain this information for future reference. Model No. XEMIO-3530 Serial No. For recycling or disposal information about this prod- uct, please contact your local authorities or the Elec-...
  • Page 3 PrEcautIons WARNING: To prevent fire or shock hazard, do not expose this device to rain or moisture. Dangerous high voltage is present inside the enclosure. Do not open the cabinet. CAUTION: To prevent electric shock, match wide blade of plug to wide slot of outlet and fully insert. Protect your hearing: Hearing experts advise against the constant use of personal stereos played at high volume.
  • Page 4: Important Safety Instructions

    IMPortant saFEtY InstructIons Read Instructions: All the safety and operating instructions should be read before the product is operated. Retain Instructions: The safety and operating instructions should be retained for future reference. Heed Warnings: All warnings on the product and in the operating instructions should be adhered to.
  • Page 5 IMPortant saFEtY InstructIons 12. Grounding or Polarization: This product may be equipped with a polarized alternating-current line plug that has one blade wider than the other. This plug will only fit into the power outlet in one direction. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the direction of the plug.
  • Page 6 IMPortant saFEtY InstructIons 20. Damage Requiring Service: Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a) when the power-supply or plug is damaged; b) if liquid has been spilled or if objects have fallen into the product;...
  • Page 7: Table Of Contents

    taBlE oF contEnts PrEcautIons ..................2 IMPortant saFEtY InstructIons ...........4 taBlE oF contEnts ................7 PacKaGE contEnts ............... 10 Left View ......................12 Top View ......................12 Right View ......................12 Bottom View ...................... 12 GEttInG startED ................13 Charging Your PMP ..................13 Turning Your PMP On/Off .................
  • Page 8 taBlE oF contEnts Last Play ....................21 Playlist .......................21 Additional Music Playback Controls ..............22 Music Show ....................22 Info ......................22 VIDEo MoDE ..................23 Video File Browser ....................23 Video Mode Options ..................24 Play All ......................24 Program ....................24 Random .....................24 Last Play ....................24 Video Output ....................24 Additional Video Playback Controls ..............25 Size ......................25 Zoom ......................25...
  • Page 9 taBlE oF contEnts Manual Search Backward/Forward ............33 Step Scan Backward/Forward ..............33 Stereo/Mono Switch .................33 BroWsEr MoDE ................34 File Browser ......................34 Browser Mode Controls ..................34 Copy ......................34 Delete ......................35 Move ......................35 Refresh ......................35 sEtuP MoDE ..................36 Setup Menu .......................36 Language ....................36 Display ......................36 Sound ......................37 System ......................37...
  • Page 10: Package Contents

    PacKaGE contEnts Please make sure that the items shown below are included in the package. Should an item be missing, please contact the local retailer from which you purchased this product. Lenco XEMIO-3530 Professional Stereo Earphones USB Cable AC Adapter...
  • Page 11 FEaturEs • 30GB Hard Disk • 3.5” TFT LCD Color Display • Compact Flash Card Slot for Easy Memory Capacity Upgrades (CF Card Not Included) • User-Friendly Interface • Plays Music, Video, Photo, and Text • Line-In Jack for Recording from External Audio Devices (No PC Required) •...
  • Page 12: Left View

    locatIon oF controls Left View 12. Volume + Compact Flash Card Slot 13. Volume - 14. Navigation Joystick: Top View USB 2.0 Port Press for “OK” Hold Switch Right View Microphone 15. Headphone Jack Charge Indicator 16. Audio Out Jack Power Indicator 17.
  • Page 13: Getting Started

    Turning Your PMP On/Off • To turn the PMP on, press and hold until you see the “Lenco” Screen. • To turn the PMP off, press and hold until the PMP turns off.
  • Page 14: Resetting Your Pmp

    GEttInG startED Resetting Your PMP Reset your PMP if it should freeze and not respond or otherwise malfunction. If the PMP is connected to a computer, disconnect it. Connect your PMP to a 100-240V wall outlet with the supplied power adapter to ensure that your PMP has power.
  • Page 15: Main Menu Overview

    MaIn MEnu oVErVIEW The Main Menu gives you access to the different function modes of your PMP. To select a mode, press to highlight the mode with the Selection Cursor and then press To return to the Main Menu at any time, press and hold the Joystick [ Mode Icon Mode Icon Label Selection Cursor...
  • Page 16: Basic Operations

    BasIc oPEratIons Menu Interface Navigation To select the different menu options and files on your PMP: • Use the Navigation Joystick to move the cursor. The cursor highlights the current selection. • Press to move the cursor up • Press to move the cursor down.
  • Page 17: Video Controls

    BasIc oPEratIons Video Controls Select and confirm VIDEO from the Main Menu. Use the Joystick to select a video from the File Browser list. Press to play the video. During playback: • Press to pause playback; press again to resume playback. •...
  • Page 18: Sound Options

    BasIc oPEratIons Sound Options Sound Change the Sound Options to set the way your PMP Balance processes audio signals. During music playback, press twice. Equalizer Normal The SOUND option screen will appear. Speak Switch Auto To adjust the settings: • Press to select a setting.
  • Page 19: Music Mode

    MusIc MoDE Enter Music mode to play your MP3, WMA or, OGG audio files. Music File Browser Select and confirm the MUSIC icon in the Main Menu. The File Browser that ap- pears will display all available music files in the “my_music” folder. •...
  • Page 20: Music Mode Options

    MusIc MoDE Music Mode Options The Music Mode options are displayed on the left side of the Music Menu screen. Program Add your favorite audio tracks to a Program List for playback. Select PROGRAM from the Music Mode options and press to confirm.
  • Page 21: Record

    MusIc MoDE Record Make digital voice recordings through the integrated microphone. Recordings are saved to the folder path “my_music > record”. Select RECORD from the Music Mode options and press to confirm. Press and hold to start recording. Press to stop recording. Press to exit Program mode.
  • Page 22: Additional Music Playback Controls

    MusIc MoDE Additional Music Playback Controls During music playback: • Press once to access the Playback Controls. • Playback status information will be shown on-screen. • The controls described below are in addition to the Standard Playback Con- trols covered in the Basic Operations > Other Playback Controls > Standard Playback Controls section.
  • Page 23: Video Mode

    VIDEo MoDE Enter Video mode to play your AVI, MPEG-1, -2, and -4, H.264, and XviD video files. Video File Browser Select and confirm the VIDEO icon in the Main Menu. The File Browser that ap- pears will display all available video files in the “my_videos” folder. •...
  • Page 24: Video Mode Options

    VIDEo MoDE Video Mode Options The Video Mode options are displayed on the left side of the Video Menu screen. Play All Play all available video files in sequence. Select PLAY ALL from the Video Mode options and press to confirm. Play- back of all video files will begin.
  • Page 25: Additional Video Playback Controls

    VIDEo MoDE Choose menu DISPLAY with joystick and press (press joystick) Choose VIDEO OUTPUT with joystick (up/down) Select the video output format with joystick (left/right). Using standard is PAL (Video/S-Video) Press (press joystick) Press and hold button for at least 3 seconds. Display will turn black and video output is activated.
  • Page 26: Move

    VIDEo MoDE Move Use in conjunction with the ZOOM control to pan around a magnified video. During video playback, press to access the Playback Controls. Select the MOVE icon and press Press to pan the image up or down; press to pan the image left or right.
  • Page 27: Photo Mode

    PHoto MoDE Enter Photo mode to view your JPEG photo files. Photo File Browser Select and confirm the PHOTO icon in the Main Menu. The File Browser that ap- pears will display all available photo files in the “my_photo” folder. •...
  • Page 28: Photo Mode Options

    PHoto MoDE Photo Mode Options The Photo Mode options are displayed on the left side of the Photo Menu screen. Preview Preview all photo files and folders in “thumbnail” view. Select PREVIEW from the Photo Mode options and press to confirm. The Thumbnail Preview screen will appear.
  • Page 29: Music Show

    PHoto MoDE Music Show Program a list of photos for use with the Music Show function. The Music Show function allows you to view your photo files while playing music at the same time (please see the Music Mode > Additional Music Playback Controls > Music Show section for more information.
  • Page 30: Additional Photo Playback Controls

    PHoto MoDE Additional Photo Playback Controls During photo playback: • Press once to access the Playback Controls. • Playback status information will be shown on-screen. • The controls described below are in addition to the Standard Playback Con- trols covered in the Basic Operations > Other Playback Controls > Standard Playback Controls section.
  • Page 31: Slide Duration

    PHoto MoDE Slide Duration Set the time interval between slides. During photo playback, press to access the Playback Controls. Select the SLIDE DURATION icon and press Press increase or decrease the time between slides (in seconds).
  • Page 32: Radio Mode

    raDIo MoDE Enter RADIO mode to listen to FM Radio broadcasts. Earphones (or headphones) must be connected to the PMP’s Headphone jack for Radio operation for use as an antenna. Radio Station Preset Browser Select and confirm the RADIO icon in the Main Menu. The Radio Station Browser that appears will display all 20 radio station presets.
  • Page 33: Manual Search Backward/Forward

    raDIo MoDE Manual Search Backward/Forward Tune automatically to station broadcasts within reception range. During radio playback, press to access the Playback Controls. Select the MANUAL SEARCH BACKWARD or MANUAL SEARCH FOR- WARD icon and press • Select “Backward” to scan to the next lowest station broadcast within reception range.
  • Page 34: Browser Mode

    BroWsEr MoDE Enter Browser mode to manage your media library on your PMP. File Browser Select and confirm the BROWSER icon in the Main Menu. The File Browser that appears will display all files on your PMP. • Use the Joystick to select a folder and press to display its contents.
  • Page 35: Delete

    BroWsEr MoDE To remove a marked file or folder from the Copy List, select the marked item and press When you have finished adding files to the list, navigate to the target folder. Press . The PMP will copy the files/folders in the Copy List to the target folder.
  • Page 36: Setup Mode

    sEtuP MoDE Enter Setup mode to adjust the internal settings of your PMP. To adjust the settings: • Press to select a setting. • Press to adjust the selected setting. • Press to confirm when necessary. Setup Menu The Setup Menu contains 5 options: Language, Display, Sound, System, and Power.
  • Page 37: Sound

    sEtuP MoDE Sound Set the Sound options. • Volume • Balance • 3D effect • Equalizer : Nomal, Rock, Pop Jazz, Classical, Dance, Heavy, Disco, Soft, Live, Hall. • Update mp3 paintlist file: Set update function on/off System Set the System options. •...
  • Page 38: Cable Connection

    To use your XEMIO-3530 to output audio and video to an external home theater system, use the connections diagrammed below. Composite Video or S-Video Output When using the Composite Video or S-Video output connection: Enter SETUP mode from the Main Menu.
  • Page 39: Audio-Only Output

    caBlE connEctIon Select the DISPLAY option. • For Enhanced-Definition capable television or monitors, adjust the Video Output setting to 480P (YPbPr) • For High-Definition capable television or monitors, adjust the Video Output setting to 720P (YPbPr) or 1080i (YPbPr) Your television or monitor must be able to support resolutions of 480P to 1080i, and a component video cable is required to use these video output modes.
  • Page 40: Computer Connection (Usb)

    (usB) Connect the XEMIO-3530 to a computer with the USB 2.0 cable provided to: • Transfer files to and from your PMP • Perform basic file management functions. USB Driver Installation (Required for Windows 98 SE Only) It is not necessary to install the USB driver if your computer is running Microsoft Windows ME/2000/XP or newer, or Macintosh OS X.
  • Page 41: Transferring Files

    Microsoft Windows Double-click the “My Computer” icon on your desktop and then double-click the XEMIO-3530 icon (Removable Disk). Drag your media files (or other files) to the Removable Disk. • You may choose to use folders/subfolders to organize your media and data.
  • Page 42: Disconnecting From A Computer

    coMPutEr connEctIon (usB) Macintosh OS X Open a Finder window. Locate the files you would like to transfer from your computer. Select the files/folders with the mouse and press APPLE-C (copy) on the keyboard. Click on the Removable Disk icon located on the left side of the finder window. The computer will display all files and folders currently stored in the PMP.
  • Page 43: Restore & Firmware Upgrades

    & FIrMWarE uPGraDEs From time to time, Lenco may release firmware updates to improve the perfor- mance of the XEMIO-3530 or to add additional features. Please check the Lenco website periodically at www.lenco.eu to see if new firmware has been released for your PMP.
  • Page 44 rEstorE & FIrMWarE uPGraDEs Press and hold to turn the PMP off, and then turn it back on. Formatting your PMP will erase all of your data from it (includ- ing musics, recordings, movies, photos). Make sure to copy and back up the data on your PMP that you do not want to lose prior to formatting.
  • Page 45: About Digital Music Files (Mp3S)

    aBout DIGItal MusIc FIlEs (MP3s) What is an MP3? MP3 (short for MPEG-1 Audio Layer 3) is a compressed digital audio file. MP3 files can deliver audio at a quality that nearly matches compact discs (CDs), but are about one-tenth the size of CD-audio. How can I play an MP3? MP3s may be played on a wide variety of devices.
  • Page 46 aBout DIGItal MusIc FIlEs (MP3) a license key and that allows for decryption and playback. Without this license key, encrypted media will not play Creating MP3/WMA Files You can create your own digital audio files for personal use by “ripping” your music CDs and converting them to an MP3, WMA, or OGG.
  • Page 47 If you have Windows Media Player installed on your computer (or another, similar program), you may choose to use its media management functions to transfer your files. • Lenco MP3 Players with USB-MTP support will enable the advanced media management functions of Windows Media Player. • Please visit www.microsoft.com...
  • Page 48 aBout DIGItal MusIc FIlEs (MP3) Why is my MP3 player displaying the error message “NO AUTHORITY”? The player may be trying to read a file that is DRM-encrypted. If your license has expired, you will not be able to play this file. •...
  • Page 49: Troubleshooting

    If you have a problem with this player, please read the troubleshooting guide below and check our website at www.lenco.eu for Frequently Asked Questions (FAQs) and firmware updates. If these resources do not resolve the problem, please contact Technical Support.
  • Page 50 trouBlEsHootInG The LCD characters are corrupted. • Ensure that the correct language has been selected. The player will not play my video file. • Ensure that the video file will play on your computer using Windows Media Player 10. If the file works on the computer, use the same computer to convert the video to a compatible format.
  • Page 51: Specifications

    sPEcIFIcatIons Display Type 3.5” TFT LCD Display Resolution 320 x 240 Memory 30GB Hard Disk CF Card Reader for Expanded Memory Capacity Audio Format Support MP3, WMA, OGG Video Format Support MPEG-1, MPEG-2, MP4 (NERO), XviD, DAT (VCD), M-JPEG and VOB (DVD) Photo Format Support JPEG (8MP maximum) FM Frequency Range...
