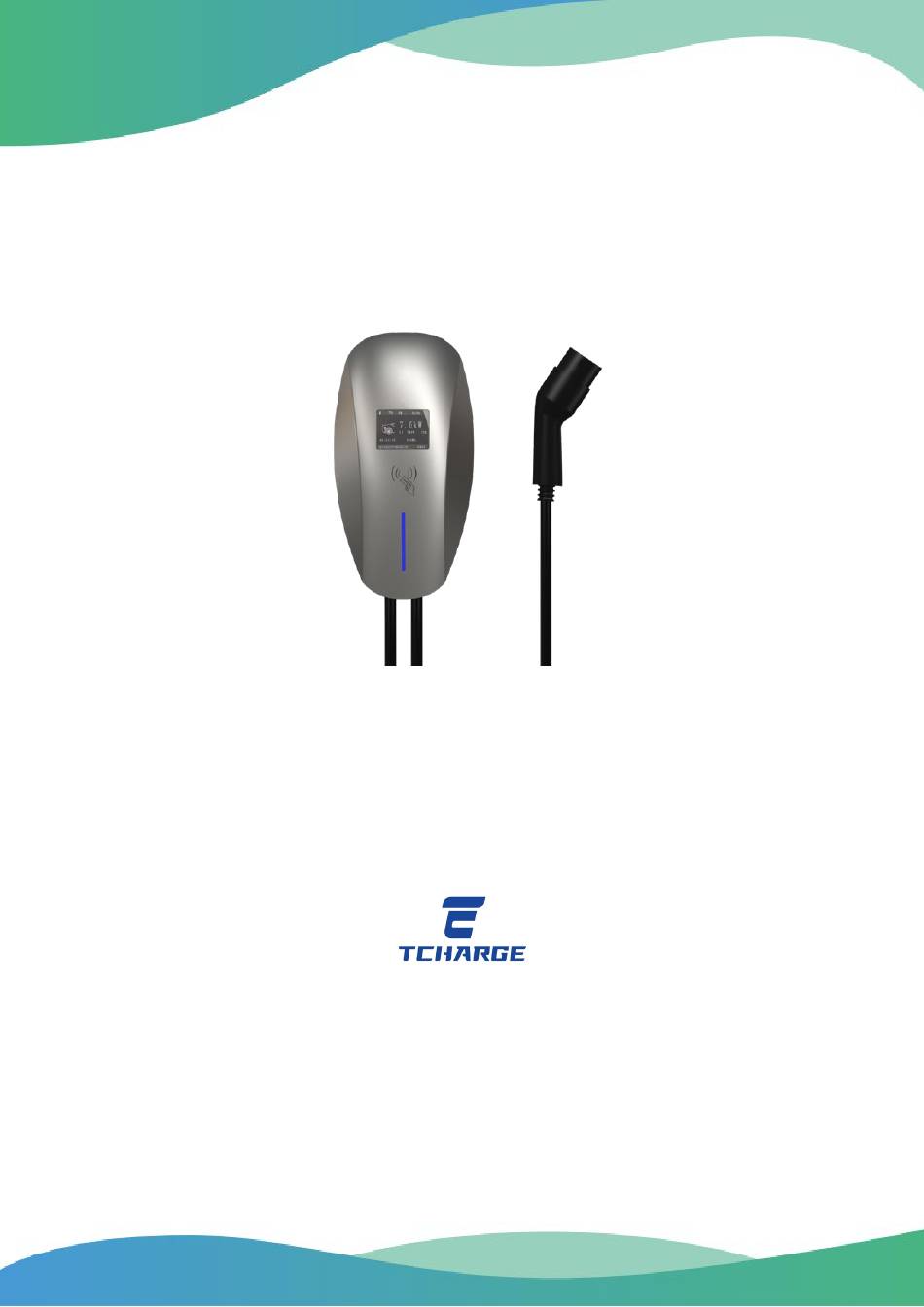

- Page 1 TCHARGE HM10 Home AC Charger ® Installation Manual HM10 Home AC Charger Installation Manual...
- Page 2 All information, specifications and illustrations in this manual are based on the latest information available at the time of printing. BLUEVIEW reserves the right to make changes at any time without notice. While information of this manual has been carefully checked for accuracy, no guarantee is given for the completeness and correctness of the content, including but not limited to product specifications, functions, and illustrations.
- Page 3 Safety Instructions The safety messages herein cover situations BLUEVIEW is aware of. BLUEVIEW cannot know, evaluate, or advise you as to all the possible hazards. You must be certain that any condition or service procedure encountered does not jeopardize anyone’s personal safety.
- Page 4 CAUTION Do not use private power generators as a power source for charging electric vehicles (EVs) with this device. Do not operate the device in temperatures outside its working temperature range. Incorrect installation, operation, or testing of the device could potentially damage the battery or other components of an EV as well as the charger device itself.
- Page 5 Contents 1. Using This Manual ....................... 1 1.1 Purpose ......................1 1.2 Applicable Products ................... 1 1.3 Definition of Warning Symbols ................. 1 2. General Introduction ....................2 2.1 Intended Uses ....................2 2.2 Product Overview ....................3 2.3 Key Technical Parameters ................. 4 2.4 Input Phases and Charging Port ................
- Page 6 1. Using This Manual 1.1 Purpose The purpose of this manual is to offer guidance regarding on-site installation and use of TCHARGE ® HM10 home AC charger. 1.2 Applicable Products This document applies to TCHARGE HM10 AC Charger. ® Caution: Death, injury, and/or property damage may occur if you use this equipment in a manner other than as described in this manual or other related documents.
- Page 7 2. General Introduction TCHARGE AC charger is designed to charge an electric vehicle (EV). Our chargers provide you with ® safe, reliable, fast, and smart EV charging solutions. This manual will instruct users and installation technicians on how to install this charger. 2.1 Intended Uses TCHARGE HM10 home AC charger is suitable for charging private EVs with AC power at home.
- Page 8 2.2 Product Overview Figure 2.1 Dimensions of TCHARGE HM10 AC Charger ® Figure 2.2 Block Diagram of TCHARGE HM10 AC Charger ® HM10 Home AC Charger Installation Manual...
- Page 9 2.3 Key Technical Parameters General Design 15.7" H * 8.3" W * 5.7" D Dimension (H*W*D) (398mm * 210mm * 145mm) Weight (Connector Included) ≤15.4 lb. (7kg) Output Rating & Current 7kW / 32A (1-phase model) or 22kW / 32A (3-phase model) 230V 1-phase AC 50Hz / 60Hz (1-phase model) or Input 400V 3-phase AC 50Hz / 60Hz (3-phase model)
- Page 10 2.4 Input Phases and Charging Port Based on the specific model of HM10 charger, the charging port of the charger (the connecting surface of the charging connector) has two types: 1 phase AC outlet and 3 phase AC outlet. Example: in Figure 2.3 below, the connector in the photo is on a 1-phase output model, hence the two pins of the bottom row are unused.
- Page 11 3. Prepare for Installation 3.1 Installation Space Requirements Figure 3.1 Space Requirement for Installation of TCHARGE HM10 Charger ® For installation, clearances reserved around the HM10 AC charger should be: At least 200 millimeters (7.9 inches) on the top, left, and right side of the charger; ...
- Page 12 3.2 Installation Tools Note The following list of tools is the manufacturer’s recommendation for installing TCHARGE HM10 AC charger. Provided that worksite safety is ® ensured, technicians in charge of on-site installation may select other additional and/or alternative tools according to actual needs posed by on-site situations.
- Page 13 3.3 Installation Accessories Below is a list of installation accessories packed with the TCHARGE HM10 charger. ® Accessory Specs Diagram Count Expansion tubes Mounting screws Waterproof gaskets 1 set (silica gel and nylon set) Positioning plate Drilling template Table 3.2 Installation Accessories for TCHARGE HM10 Charger ®...
- Page 14 4. Install the Charger 4.1 Installation 4.2.1 Install Positioning Plate 1) Drill 3 holes with a diameter of 6mm (0.23 inches) and a depth of at least 50mm (2 inches) on the wall for the screws with their relative positions shown in Figure 4.1. Note The drilling template (installation Accessory E...
- Page 15 Figure 4.2 Installing Expansion Tubes and Positioning Plate 4.1.2 Mounting the Charger 4) Use appropriate tools (for example, slotted and Phillips screwdrivers) to remove the decorative cover and the sealing cover of the charger, as depicted in Figure 4.3. Figure 4.3 Removing Covers of the Charger Important Note Please keep the screws removed from the sealing cover...
- Page 16 5) After the positioning plate is fixed in a horizontally leveled position, install the charger on the positioning plate by sliding it down in the direction of the arrow (depicted as Step 1) on the left of Figure 4.4, till the device hangs firmly. 6) Use the one remaining mounting screw (Accessory B) and the 2-piece waterproof gaskets (Accessory C) to fix the lower part of the charger on the lower screw hole on the wall (Step 2 as shown in Figure 4.4).
- Page 17 1) Investigate the number of wires at the end of the input cable. Figure out the label and function of each wire. For TCHARGE HM10 AC charger, the charging cable is installed to the left at the ® bottom of the charger ([C] in Figure 4.5), while input power cable ([B] in Figure 4.5) occupies the remaining cable inlet at the bottom right ([A] in Figure 4.5).
- Page 18 4.3 Restore the Front Cover After all the wiring procedures are finished and the lower screw using the screw hole in the back of the charger is correctly installed (see Part 4.1.2 step (6) and Part 4.2), the front covers of the TCHARGE HM10 charger can be restored to complete the installation process.
- Page 19 Mounting accessories for the connector socket are packed separately from the charger mounting accessories. Please do not mix the accessories together before installing the connector socket. See Figure 4.7 for a diagram of the socket and the positions of mounting screw holes on the socket. Figure 4.7 Diagram of the Connector Socket 5.
- Page 20 Features noted in Figure 5.1 include: Item Name Function Screen display A screen showing system status RFID card reader Swipe the RFID card here to authorize charging LED indicator strip Indicate charger status Charging control button Button controlled charging; Bluetooth activation Table 5.1 User Interaction Features Detailed Explanation 5.1 Screen Display TCHARGE...
- Page 21 Charging session in progress Fault detected (22kW model example here) System upgrading Table 5.2 List of HM10 Charger Screen Displays in Different Operation Scenarios 5.2 RFID Card Reader TCHARGE HM10 charger is typically delivered with 2 black colored RFID card. However, lineup ®...
- Page 22 In addition, these black RFID cards do not support OCPP related features. If you do need to use TCHARGE RFID-card-supported OCPP related features on your home charger, please contact tech ® team for specific solutions. To use an RFID card to authorize charging, just tap the RFID card in the card reading area ([B] in Figure 5.1) after plugging the connector (charging gun) into a vehicle.
- Page 23 LED Indicator Signal Error Code Possible Solutions LED flash: Error code 11: Check the connection of charging connector and the Red×1+Yellow×1 CP voltage anomaly socket on the vehicle. Disconnect and reconnect the charging connector. LED flash: Error code 13: ...
- Page 24 5.4 Button-Controlled Charging After connecting your TCHARGE HM10 charger to a vehicle, apart from using RFID card and/or ® TCHARGE home charging APP, you can also start and stop charging with the charger’s charging ® control button, which is found on the side of the charger ([D] as marked in Figure 5.1 above). There are two modes for button-controlled charging using this button (short pressing and long pressing).
- Page 25 Figure 5.3 Search Button on WiFiConfig APP Page 4) Search and select the Wi-Fi to be connected to from the Wi-Fi hotspot list and fill in the Wi-Fi password. 5) With the Wi-Fi hotspot name (SSID) and password entered correctly, the charger will be connected to that Wi-Fi hotspot.
- Page 26 6. Service and Support If you encounter problems while installing, configuring, or using the charger, please reach out to our technical support team. For services in U.S. or Canada, please contact BLUEVIEW directly with the following information: Web: http://www.blueview-usa.com/ Tel: +1 (317) 772-1526 Email: info@blueviewelectricity.com...
- Page 27 APP on your Apple device. ® Download HM10 Home AC Charger Installation Manual Ver. 1.0 Jan. 2024 All Rights Reserved. Blueview Electricity Inc. Suite 700, 5050 Quorum Drive Dallas, TX, United States of America 75254 HM10 Home AC Charger Installation Manual...
