LED World MD-024-192VWJ2V2 Installation Manual

24VDC 192W Constant Voltage LED Driver
Model: MD-024-192VWJ2V2
PRECAUTIONS BEFORE INSTALLING
Read all instructions before installation. To be sold with instructions.
Ÿ
Only qualied personnel should install the unit.
Ÿ
Installation must comply with the National Electrical Code (Article 450) and Canadian Electrical Code.
Ÿ
Ensure the unit has the proper input/output voltage and output wattage for your application.
Ÿ
Check the wire markings to ensure they match the wiring diagram on this installation guide.
Ÿ
Turn off power at breaker before starting.
Ÿ
INSTALLATION GUIDELINES
The driver must be installed in a well-ventilated area free from explosives gases and vapors. Proper operation requires for free ow of air. Do not install
Ÿ
inside a cabinet smaller than 12 W x 12 H x 15 L inches. If you are installing multiple drivers, keep a minimum space of 5" (127mm) between each driver.
For Indoor or Outdoor use.
Operate only within specied ambient temperature range of 4°F (-20°C) to 104°F (40°C). Operating at cooler surrounding air temperature will extend driver life.
Ÿ
Do not overload. Total wattage of all LED xtures used must not exceed the 192 watt rating of this power supply. Maximum of 77 watt in each output for continuous
Ÿ
use.
Route and secure wires so they will not be pinched or damaged.
Ÿ
All wiring must be in accordance with NEC/CEC, low voltage Class 2 circuit. For wire runs inside of walls, use properly certied CL2 or better cabling and
Ÿ
appropriate mounting hardware. If you are unclear as to how to install and wire this product, contact a qualied licensed electrician. Failure to install this device
properly may result in electrical shock or re.
Do not install Class 2 low voltage wiring in the same run(s) as AC main power.
Ÿ

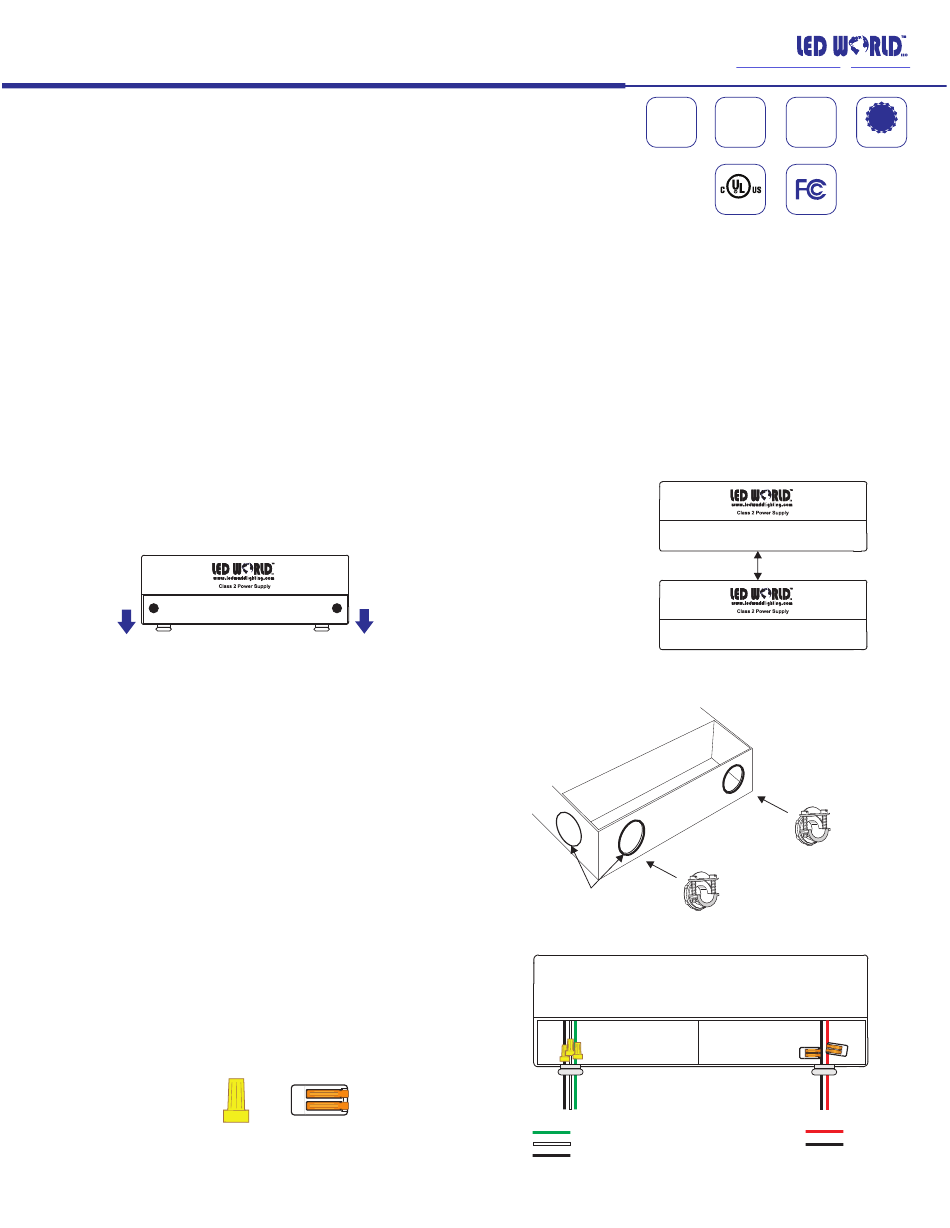

MOUNTING
Select a suitable location capable of supporting the weight of the transformer. Use
the four keyholes on the transformer case. Screw cover closed. Mount the unit at a
height greater than 1ft (30cm) from the ground.
+ Wiring cover
If used outdoors, the knockouts must point downward
INPUT CONNECTIONS / GROUNDING
Remove the wiring cover (2 screws). Remove the wiring compartment
Ÿ
knockout and install strain reliefs (not included). With power turned off at the
breaker, route the input wires. Connect one wire to black(L) and one wire to
white(N) to the corresponding pigtail wire.
For all wire connections use only UL/CSA listed wire nuts or wago connectors of
Ÿ
suitable size and type.
The Driver case MUST be grounded in accordance with the NEC/CEC. Connect
Ÿ
the ground wire to the driver green wire.
Use 3/8" (1/2" KO) cable connectors (not included) to secure wire.
Ÿ
If used outdoor, must have knockouts point downwards. Use only outdoor rated
Ÿ
UL/CSA listed strain relief (water tight).
Maximum of 12AWG through branch circuit conductor suitable for 105°C
Ÿ
(221°F) permitted in box.
OUTPUT CONNECTIONS (LOW VOLTAGE)
Connect the wires of the light xture to the driver wires - positive to the red(+)
Ÿ
wire and negative to black(-) wire.
Measure the output voltage for proper voltage to LED xture.
Ÿ
WARNING - Do not interconnect output terminations. Risk of Fire or Electric
Ÿ
Shock.
After all wiring completion, screw in wiring cover.
Ÿ
Use appropriate UL/CSA listed
wire nuts or wago connectors (not included) to connect wires
1/2
Copyright © 2024 LED WORLD INC™. All Rights Reserved. We are not responsible for errors or omissions. Product and specications subject to change without notice. Registered trademarks are owned by their respective registers, or licensee(s).
+
LED World Inc. | #130 10615 48 ST SE | CALGARY, AB T2C 2B7 | CANADA | Version 1.0 07/17/24
24V
DC Output
5"(127mm) min spacing between drivers
Knockouts
Input
Green (G)
White (N)
Black (L)
ledworldlighting.com ledworld.ca |
1-800-387-4081
4
96
6
2x
2x
Years
Amps
Watts
Limited Manufacturer
Warranty
LISTED
Install strain reliefs
(Note: Use water tight strain relief
for outdoor location installation)
Output
Red (V+)
Black (V-)
