LED World HUEDA LW-2812WI Installation Manual

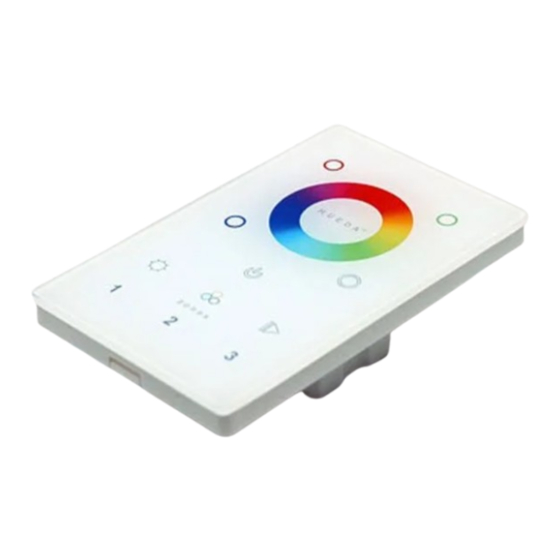

HUEDA™-Multi Zone LED Color Controller
HUEDA™-Multi Zone LED Controller
Installation Guide
BEFORE YOU BEGIN, READ ALL WARNINGS AND INSTALLATION INSTRUCTIONS.
SAFETY & WARNINGS
·
Securely mount the Hueda™ Controller
·
This product is intended to be installed and serviced by a qualied licensed electrician. Install in accordance with the National Electric
Code, and local regulations. Only power with a regulated (listed) constant voltage Class 2 power supply (12-24V DC
Max). Failure to use a Class 2 power supply may cause re or serious injury and will void the limited warranty. Never
use this product with dimmable or magnetic dimmable power source(driver)
·
Ensure applicable wire is installed between driver, xture and any controls in between. When choosing wire, factor in voltage drop,
amperage rating and type (in-wall rated, Plenum rated, wet location rated, etc.). Inadequate wire installation could overheat wires and
cause re.
·
This product is rated for indoor installation and only for dry locations. Do not install in washrooms or areas near water (or the possibility
of in the future).
·
Do not modify this product beyond the instructions in this guide or the limited warranty will be voided.
·
Wiring diagrams in this installation guide for basic installations. Please carefully review your installation before proceeding with a
qualied electrician familiar with low voltage wiring.
·
Never install the HUEDA™ Controller in with other high voltage Junction Box as there is a risk of shock hazzard! National
Electric Code requires electrical conductors to be separated by a barrier within the box or in a separate box!. Install only in the provided
Junction box.
IMPORTANT NOTE
·
Install Hueda DMX controller in a separate box rated for Low voltage use. NEC codes requires conductors shall not be placed in any
raceway, compartment, outlet box, junction box, or similar tting with conductors of electric light or power.
WIRE ENDS:
WIRE 6-8MM (0.25-0.30")
Exposed wire should not be more than 6- 8 mm long & solder tip (tinned). Do not allow Wires to cross and insure all exposed wire
is fully inserted into the screw terminals. Hand tighten screw terminals. Use 24 to 18 AWG gauge wire for output terminals.
INCLUDED ITEMS IN BOX
CAT5 Wire
Ÿ
Instructions
Ÿ
REMOTE OPERATION
·
The DMX controller can also be con also be controlled remotely via wi- with a smart device using an application
