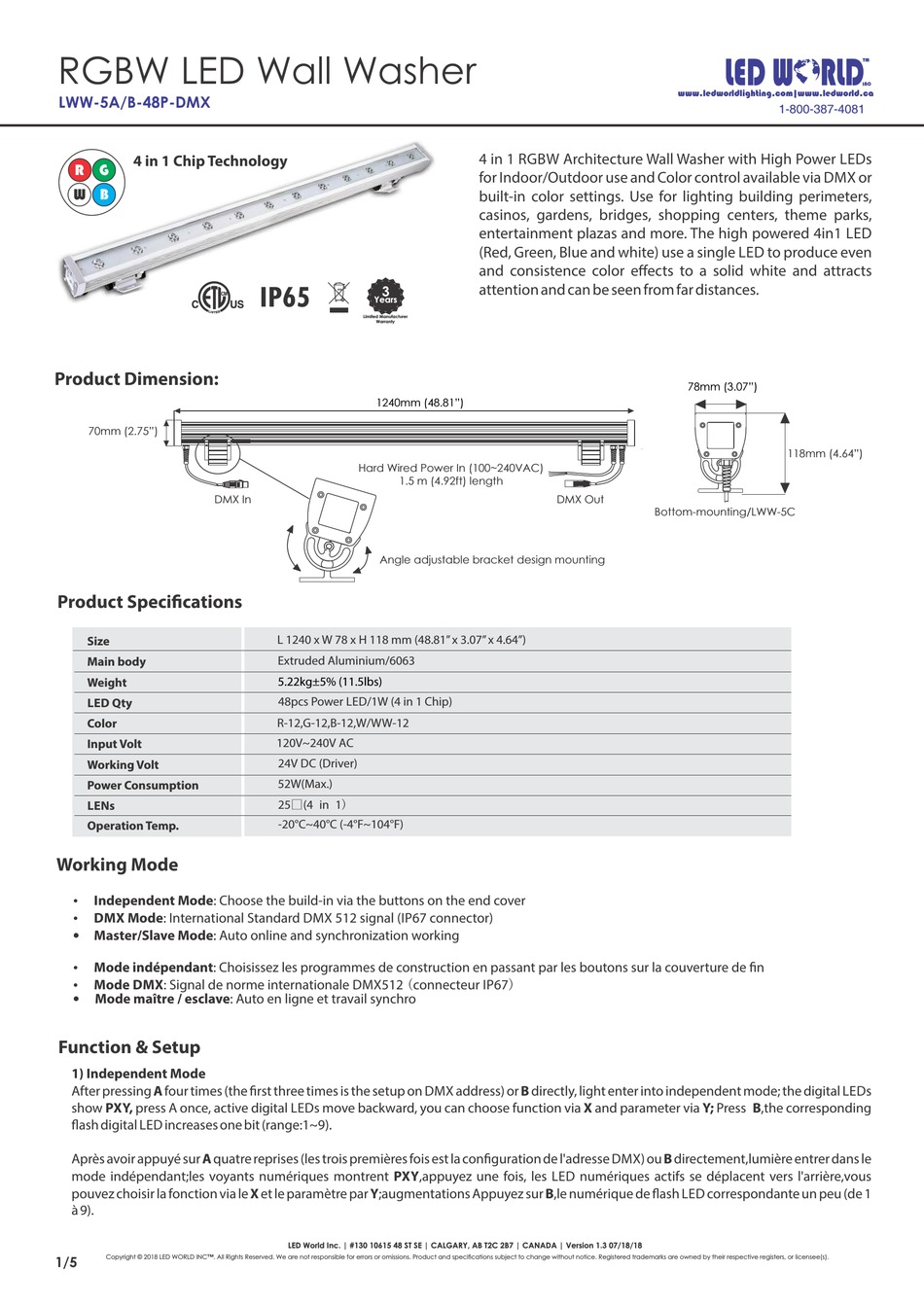

LED World LWW-5A/B-48P-DMX Quick Start Manual

RGBW LED Wall Washer
LWW-5A/B-48P-DMX
4 in 1 Chip Technology
R G
W B
Product Dimension:
70mm (2.75")
DMX In
Product Speci cations
Size
Main body
Weight
LED Qty
Color
Input Volt
Working Volt
Power Consumption
LENs
Operation Temp.

Working Mode

Independent Mode: Choose the build-in via the buttons on the end cover
Ÿ
DMX Mode: International Standard DMX 512 signal (IP67 connector)
Ÿ
• •
Master/Slave Mode: Auto online and synchronization working
Ÿ
Mode indépendant: Choisissez les programmes de construction en passant par les boutons sur la couverture de n
Ÿ
Mode DMX: Signal de norme internationale DMX512 (connecteur IP67)
Ÿ
• •
Mode maître / esclave: Auto en ligne et travail synchro
Ÿ
Function & Setup

1) Independent Mode

After pressing A four times (the rst three times is the setup on DMX address) or B directly, light enter into independent mode; the digital LEDs
show PXY, press A once, active digital LEDs move backward, you can choose function via X and parameter via Y; Press B,the corresponding
ash digital LED increases one bit (range:1~9).
Après avoir appuyé sur A quatre reprises (les trois premières fois est la con guration de l'adresse DMX) ou B directement,lumière entrer dans le
mode indépendant;les voyants numériques montrent PXY,appuyez une fois, les LED numériques actifs se déplacent vers l'arrière,vous
pouvez choisir la fonction via le X et le paramètre par Y;augmentations Appuyez sur B,le numérique de ash LED correspondante un peu (de 1
à 9).
Copyright © 2018 LED WORLD INC™. All Rights Reserved. We are not responsible for errors or omissions. Product and specications subject to change without notice. Registered trademarks are owned by their respective registers, or licensee(s).
1/5
IP65 3
Years
Limited Manufacturer
Warranty
1240mm (48.81")
Hard Wired Power In (100~240VAC)
1.5 m (4.92ft) length
Angle adjustable bracket design mounting
L 1240 x W 78 x H 118 mm (48.81" x 3.07" x 4.64")
Extruded Aluminium/6063
5.22kg±5% (11.5lbs)
48pcs Power LED/1W (4 in 1 Chip)
R-12,G-12,B-12,W/WW-12
120V~240V AC
24V DC (Driver)
52W(Max.)
25 (4 in 1)
-20°C~40°C (-4°F~104°F)
LED World Inc. | #130 10615 48 ST SE | CALGARY, AB T2C 2B7 | CANADA | Version 1.3 07/18/18

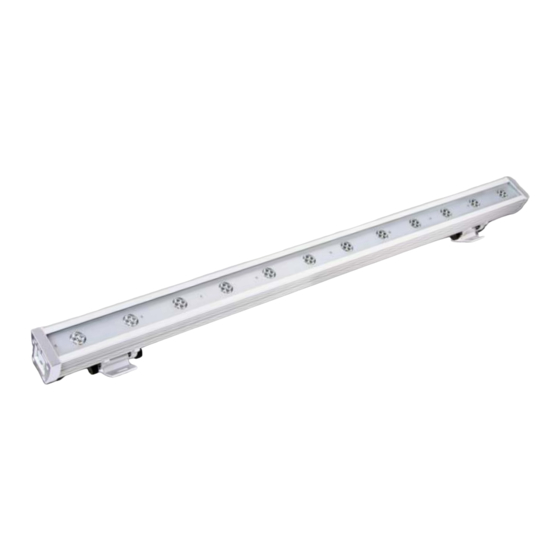

4 in 1 RGBW Architecture Wall Washer with High Power LEDs
for Indoor/Outdoor use and Color control available via DMX or
built-in color settings. Use for lighting building perimeters,
casinos, gardens, bridges, shopping centers, theme parks,
entertainment plazas and more. The high powered 4in1 LED
(Red, Green, Blue and white) use a single LED to produce even
and consistence color effects to a solid white and attracts
attention and can be seen from far distances.
DMX Out
www.ledworldlighting.com|www.ledworld.ca
1-800-387-4081
78mm (3.07")
118mm (4.64")
Bottom-mounting/LWW-5C
