utilising higher MLS positions when connected to lower impedance's
see Table 2.
As you can see from Table 2 the LAB 2000C can produce in excess
of 1000 watts.
LAB 2000C MLS switch
Speaker Impedance
16 ohms Stereo 2x
8 ohms Stereo 2x
4 ohms Stereo 2x
2 ohms Stereo 2x
8 ohms Bridged mono 1x
4 ohms Bridged mono 1x
* Not recomended selection, thermal protection may occur at high continous power.
Table 2.
TM
MLS positions can be different for each channel
and a variety of combinations can be achieved see
Table 3.
Channel Impedance MLS
A 8 4
B 8 4
A 4 8
B 4 8
A 8 8
B 2 2
A 8 4
B 4 8
Table 3.
Operation modes
1. Stereo operation
For stereo (dual channel ) operation, leave the Link
and Phase reverse switches in the undepressed
position. In this mode, both channels operate
independently of each other, with their level
attenuators controlling their respective levels.
Never connect either output terminal to ground
or in parallel. The recommended minimum
nominal impedance, for stereo or tandem operation,
is 2 ohms per channel.
2.
Tandem mono
For tandem ( dual channel-single input) operation ,
depress the Link switch. Both channels can now be
driven by a signal, at either input connector. The
output connection is the same as in stereo mode.
You can use either TRS connectors for linking out
etc. Do not use the remaining XLR and TRS
connectors for mixing or other purposes. Both
level attenuators are active, allowing you to set
different levels for each channel.
Never connect either output terminal to ground
or in parallel.
MLS Position
1.5 ohms 2 ohms 4 ohms
160W 180W
300W 350W
570W 680W
1040 1200W
1200W 1400W
2100W 2400W
Power rating at 1 kHz and 1% THD
Power Comments
650W Power
650W reduction
1400W High peak
1400W power
1000W Power
1200W matching
650W Power
1800W sharing
8 ohms
340W 520W
650W 1000W
1100W 1400W
1400W *
2300W 2800W
2800W *
The way to find the best MLS
application is by experimentation, the amplifier is
very well protected (even down to 0.3 ohms), but
where speed is of essence stick to the fixed positions.
The thing to remember with the LAB 2000C that it is
a power converter and when you select MLS
positions you are allocating a portion of power from
3000 watts.
3.
Bridged mono
To bridge the amplifier, depress the Link switch (7)
and Phase reverse switch (6). Both channels are then
driven by a single signal at either input. You can
use any remaining input connectors for linking etc.
Do not use the remaining XLR and TRS as input
jacks simultaneously for mixing or other purposes.
To obtain an output, connect the speaker leads to pin
+1 on channel A Speakon to speaker positive
terminal and pin +1 on channel B Speakon to
speaker negative terminal . Do not connect either
of the -1 (negative) pins of the Speakons. Do not
connect speakers to channel A or B in the normal
manner in bridge mode, as this can cause serious
damage.
The recommended minimum nominal impedance
for bridged mono is 4 ohms (equivalent to driving
both channels at 2 ohms).
Driving bridged loads of less than 4 ohms may cause
a thermal overload.

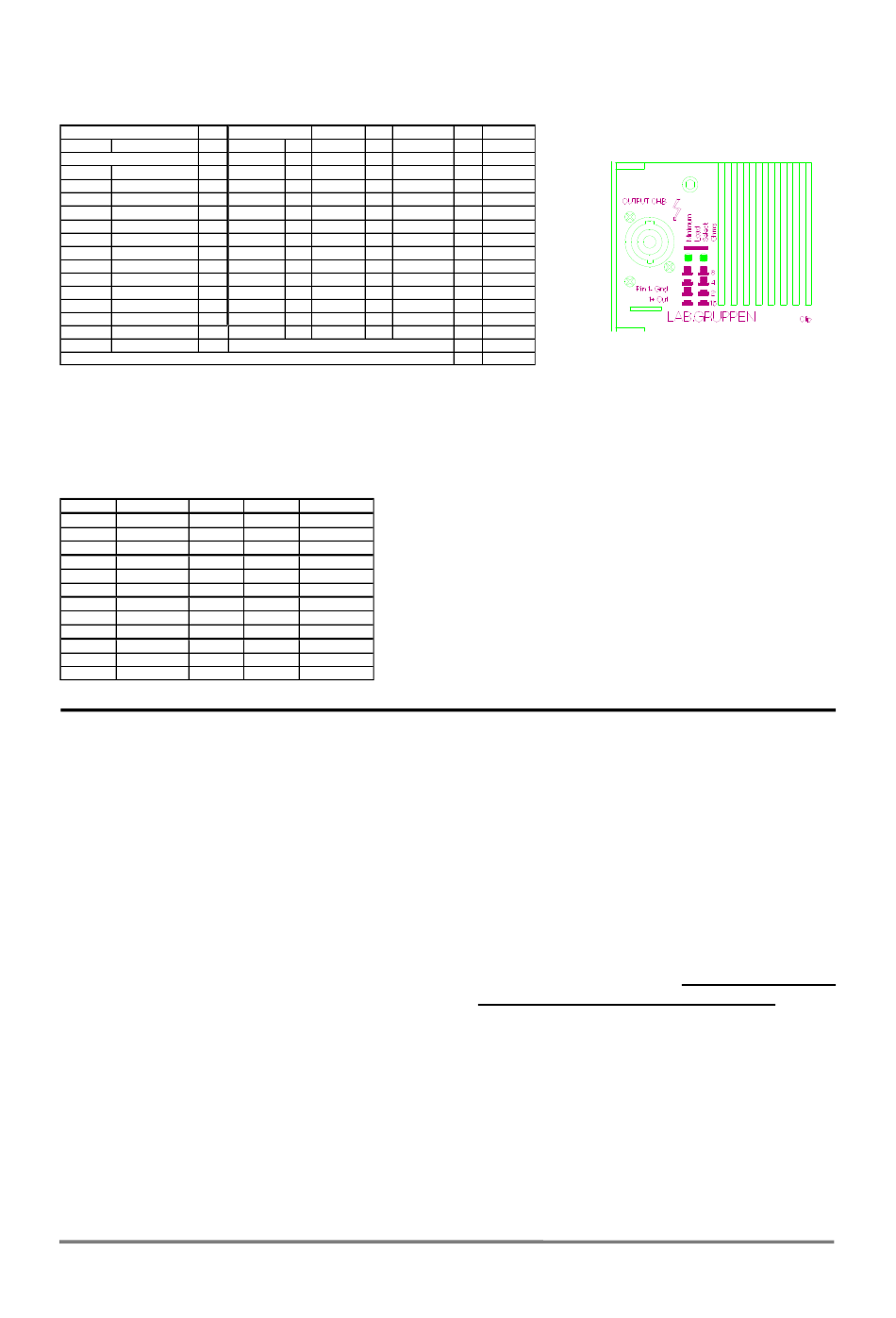

Figure 10. MLS switches on rear panel
TM
position for your
