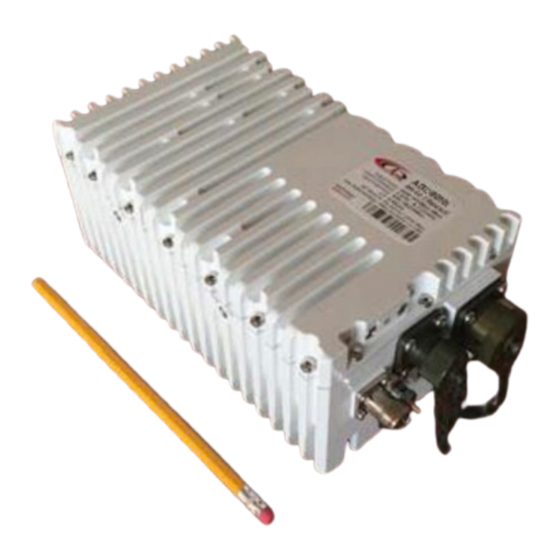

ABCN40X User Manual
ABCN40X / ABCN40XF
40W X-Band BUC
USER MANUAL
Page 1 of 35

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ABCN40X and is the answer not in the manual?

Questions and answers

Related Manuals for Actox ABCN40X

Summary of Contents for Actox ABCN40X

  • Page 1 ABCN40X User Manual ABCN40X / ABCN40XF 40W X-Band BUC USER MANUAL Page 1 of 35...

  • Page 2: Table Of Contents

    ABCN40X User Manual Table of contents Introduction................................5 Receiving and Inspection ........................... 6 Equipment Damage or Loss Return of Equipment Preparing for Installation ..........................7 Safety Precautions Installation & Overview ............................. 8 General Description Specifications General Considerations Securing the Block Up Converter Installing the Block Up Converter ........................
  • Page 3 ABCN40X User Manual Operation ................................14 Procedure Maintenance ..............................15 Preventive Maintenance Block Up Converter Cooling System Preventive Maintenance Performance Check ............................16 Out-of Warranty Repair Appendix 1 Technical Specification ........................ 17 Appendix 2 Mechanical Drawing ........................18 Appendix 3 Spare Parts ............................ 19 Appendix 4 M&C Commands .........................
  • Page 4 This document covers the installation, operation, and maintenance of the ABCN40X BUC. It contains information intended for engineers, technicians and operators working with the block up converter. To make inquiries, or to report errors of fact or omission in this document, please contact Actox Corporation at toll free 866-888-6087.

  • Page 5: Introduction

    ABCN40X User Manual Introduction The ABCN40X is a reliable, high quality, cost efficient stand-alone block up converter. The application for this block up converter is X-Band VSAT communication in an outdoor environment. This line of superior products, engineered using state of the art technology, is characterized by unparalleled durability and dependability.

  • Page 6: Receiving And Inspection

    Using the supplied packing list, verify that all items have been received and undamaged during shipment. Verify that all items are complete. If there are any omissions or evidence of improper packaging, please notify Actox Corporation immediately. Equipment Damage or Loss Actox Corporation is not responsible for damage or loss of equipment during transit.

  • Page 7: Preparing For Installation

    ABCN40X User Manual Preparing for Installation Before attempting to install or use the block up converter, we recommend that you first familiarize yourself with the product by reading through this manual. Understanding the operation of the system will reduce the possibility of incorrect installation, thereby causing damage or injury to yourself or others.

  • Page 8: Installation & Overview

    Band. The block up converter can be used as a stand-alone unit or in a redundant configuration. Specifications Table 1 summarizes the specifications of the ABCN40X BUC. For mechanical specifications, refer to the outline drawing, Appendix 1. General Considerations The block up converter shall meet all specifications over full bandwidth and under all environmental conditions when terminated with a load of VSWR at 1.5:1 unless otherwise specified.

  • Page 9: Installing The Block Up Converter

    ABCN40X User Manual Installing the Block-Up Converter Tools and Test Equipment Have on hand a standard electrician's tool kit and any tools listed in the antenna manufacturer's installation instructions. Site Considerations The BUC is designed to mount on the antenna. Locate and install the antenna according to instructions supplied by the antenna manufacturer.

  • Page 10: Led Indication

    Bias T (for example, ABT6ARN/ABT6ARF manufactured by Actox Corporation) or a similar bias T type. Please make sure to check the sticker on the BUC for the appropriate power source before any power connections are performed.

  • Page 11: Recommended Test Equipment

    ABCN40X User Manual Recommended Test Equipment The following equipment or equivalent is recommended for installation and system alignment: Equipment Type Spectrum Analyzer HP8563E Digital Voltmeter Fluke 8050 Adapter Waveguide to coax C or Ku-band RF cables With calibrated insertion loss up to 15GHz 40 dB attenuator High Power to match HPA output.

  • Page 12: Connections And Mounting Hardware

    ABCN40X User Manual Connections and Mounting Hardware The IF input connection requires a coaxial cable with an F or N type connector. The RF output requires a waveguide with a CPR-137G, CPR-112G, WR-112G or WR-90G flat flange. A gasket shall be used to seal the waveguide connection.

  • Page 13: Functional Overview

    ABCN40X User Manual Functional Overview General This section describes the block up converter functions in detail. The functional overview explains the RF amplification, monitor & control and power distribution. IF/RF Conversion and Amplification The IF Input requires a signal with a 10MHz reference, and 30-60 VDC power source. 2-4.5Amps nominal enters the BUC by a coaxial cable, converted to X-Band by the BUC and goes through an internal isolator and reject filter, which provides a good VSWR at the input.

  • Page 14: Operation

    ABCN40X User Manual Operation It shall be performed by authorized personnel prior to maintenance and/or repair. Procedure Verify that the installation procedure described was completed. A complete physical check of the customer’s system is suggested. WARNING!! The output power available at the output waveguide flange is extremely hazardous.

  • Page 15: Maintenance

    ABCN40X User Manual Maintenance This section contains information on how to maintain, troubleshoot and repair the block up converter. The block up converter is extremely reliable, requiring very little preventive maintenance, or repair. Should there be a malfunction, this section also contains technical information to help diagnose basic failures.

  • Page 16: Performance Check

    Out-of Warranty Repair A non-warranty and out-of-warranty repair service is available from Actox Corporation for a nominal charge. The customer is responsible for paying the cost of shipping the BUC both to and from Actox Corporation for these repairs. Page 16 of 35...

  • Page 17: Appendix 1. Technical Specification

    ABCN40X User Manual Appendix 1. Technical Specification Page 17 of 35...

  • Page 18: Appendix 2. Mechanical Drawing

    ABCN40X User Manual Appendix 2. Mechanical Drawing Page 18 of 35...

  • Page 19: Appendix 3. Spare Parts

    ABCN40X User Manual Appendix 3. Spare Parts The following sheet can be copied and used as a fax form to order the required spare parts. Please make sure to include all identifying information to facilitate the processing of your order. The order may be sent via email to the following address.

  • Page 20: Appendix 4. M&C Commands

    ABCN40X User Manual Appendix 4. M&C Commands Reply Packet format Explanation Interpretation Examples ACK (Acknowledge 7E FX E0 ZZ 7F Acknowledge that the X = Device address of the packet 1) reply: 7E FF E0 E0 received packet was source device.
  • Page 21 ABCN40X User Manual 1) cmd: 7E FF 02 18 FE E4 reply: 7E FF 84 18 FE 00 C8 AA 7F 7E FF 02 Query device for AA AA = Attenuation in 10 Update Attenuation: (Atten = 0x00C8 = 0d200 =...
  • Page 22 ABCN40X User Manual 1) cmd: 7E FF 02 00 0F 0D 7F reply: 7E FF 84 00 0F 00 01 8A 7F 7E FF 02 XX = Alarm state (0 = Update summary Query device for (Summary alarm is raised) 2) cmd: alarm: 7E FF 84 00 0F no alarm;...

  • Page 23: M&C Serial Protocol

    ABCN40X User Manual M&C Serial Protocol SCI Packet Byte Description ◆ STX is the start transmission byte (defined as 0x7E). This byte is used to determine the start of a packet. ◆ Dest/Src Address contains the destination address in the high nibble and the source address in the low nibble.

  • Page 24: Crc Calculation Example

    ABCN40X User Manual CRC Calculation Example To send a command to read the temperature (database element = 0x0606) from the Booster (device address 0x0F), the command is: Example Only --------------------------------------------------------------------------------- 7E FF 02 06 06 02 7F Dest/Src = 0xFF...

  • Page 25: Appendix 5. M&C Connection Instructions

    ABCN40X User Manual Appendix 5. M&C Connection Instructions BUC 19 pin connector for a PC / Laptop BUC connection to PC carried by cable with 19 pin female connector (fig.1.1) on the one side and RJ45 (fig. 1.3), two DB9 (fig. 1.2) female connectors: RS232 and RS485 on the other side.
  • Page 26 ABCN40X User Manual PC interface name From PC Interface pin Pin name From BUC pin Ethernet RX_P RX_N TX_P TX_N RS-485 GNDISO TX_B TX_A RX_B RX_A RS-232 GNDISO TX_RS-232 RX_RS-232 MUTE_IN ALARM_IN P_OUT_OUT GNDISO Table 1 — BUC to PC Cable Connection...

  • Page 27: Buc 2 Pin (Or 3 Pin) Connector To Power Supply

    ABCN40X User Manual BUC 2 pin (or 3 pin) connector to Power supply BUC connection to Power supply is carried by cable with 2 pin (MS3102E-10SL-4P) female connector (fig.2.1) or 3 pin (MS3102A-14S-7P) female connector (fig.2.2). Figure 2.1 — 2 pin (MS3102E-10SL-4P) female connector Figure 2.2 —...

  • Page 28: Buc Connection To Pc Via Serial Port

    ABCN40X User Manual BUC Connection to PC via Serial Port Run NewBuc v.301 on your PC, the following window should appear: Figure 3.1 — Start window with Monitor Tab In the top corner you’ll notice the device information, such as: ...
  • Page 29 ABCN40X User Manual  MUTE: Configurable parameter. Stand-by BUC (On/Off output transmit). Includes two modes: Mute – output transmitter will be shut down until demand; Unmute – output transmitter will be always switched. For changing mode click the button Set.

  • Page 30: Settings Tab

    ABCN40X User Manual Figure 3.3 — Program Address Configuration Settings Tab Tab Settings opens access to change BUC configurations. Reference the below fig. 3.4. Figure 3.4 — Start window with Settings Tab Internet Connection Parameters:  IP Address: Configurable. Factory default, 192.168.1.250;...
  • Page 31 ABCN40X User Manual BUC Address Configuration: Displays current BUC address. Button Read allows find out current address. Additional BUC Options:  Device Name: Let you rename your device;  Description: Write here description or notes about your device;  Start Mute: Option that lets you to start BUC muted. Configurable. Factory default, disable.

  • Page 32: Buc Connection Via Ethernet

    ABCN40X User Manual BUC Connection via Ethernet For BUC connection via Web use the internet browser. You will see the below page: Figure 4.1 — Start Page To log in, type your login and password in appropriate fields. There are two access levels: User and Admin. By...
  • Page 33 ABCN40X User Manual In the head of the page you will find information about your device (BUC Name, Model and Serial Number) and current access level (User or Admin). On the tab Monitor situated BUC telemetry and BUC Alarms. Tab Monitor is functionally similar to the tab Monitor from the program NewBuc v.301 (see fig.
  • Page 34 ABCN40X User Manual Figure 4.4 — Settings Panel (Access Level: User) This tab is conditionally divided into two panels. Left panel contains information about current connection parameters (DHCP status, IP Address, Subnet Mask, Default Gateway, Port and MAC Address), connection speed (for RS232 and RS485 ports) and BUC address.
  • Page 35 ABCN40X User Manual Admin Access level gives wider range of configurations. In this access level available several new parameters, such as:  DHCP: you can switch on/off DHCP;  SMNP Manager IP: set IP address of the computer that will receive Traps from your device.
