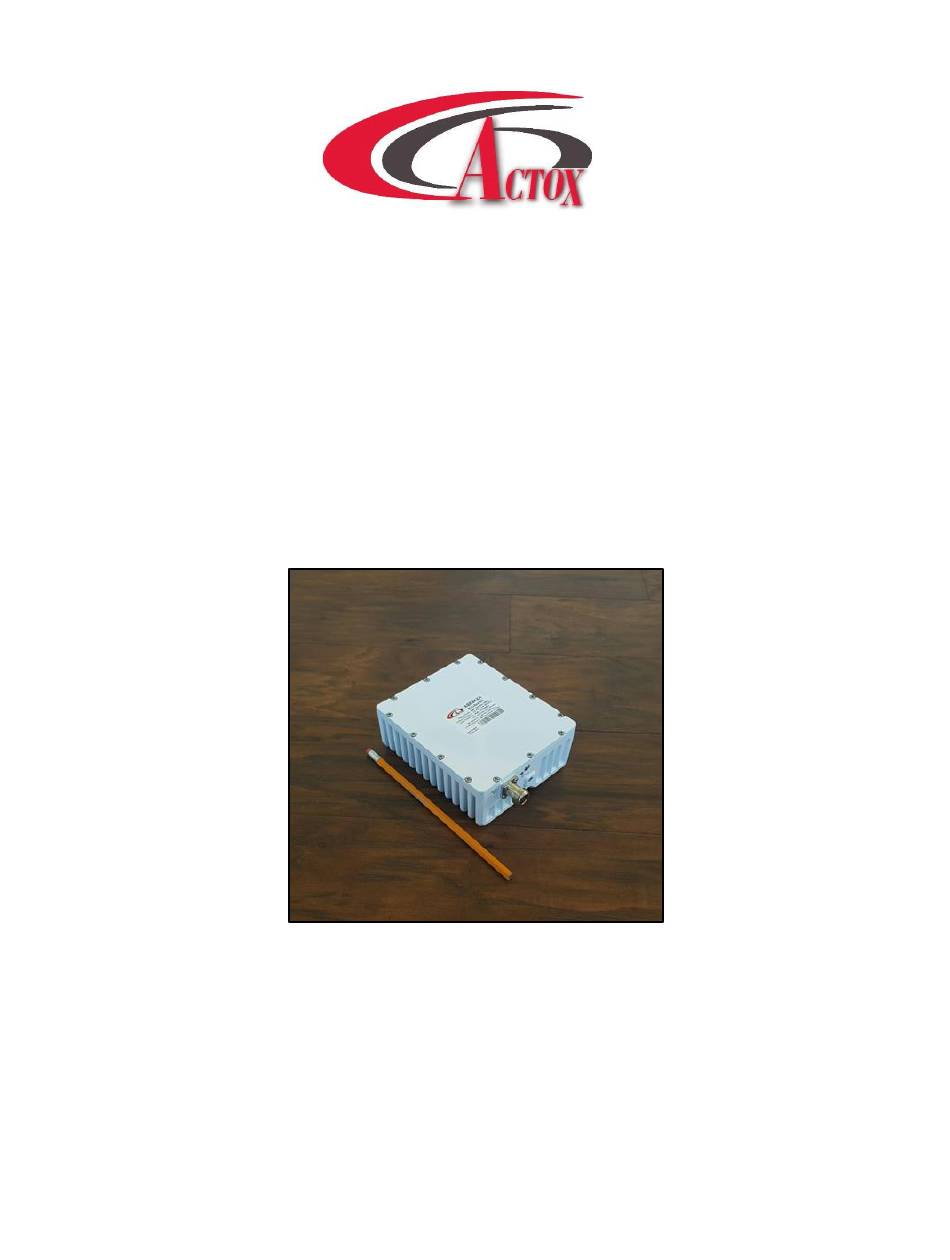

- Page 1 ABE8KXH User Manual ABE8KXH / ABE8KXHF 8W Ext. Ku-Band BUC USER MANUAL Page 1 of 19...
-
Page 2: Table Of Contents
ABE8KXH User Manual Table of contents Introduction................................5 Receiving and Inspection ........................... 6 Equipment Damage or Loss Return of Equipment Preparing for Installation ..........................7 Safety Precautions Installation & Overview ............................. 8 General Description Specifications General Considerations Securing the Block Up Converter Installing the Block Up Converter ........................ - Page 3 ABE8KXH User Manual Monitor and Control (optional) Operation ................................14 Procedure Maintenance ..............................15 Preventive Maintenance Block Up Converter Cooling System Preventive Maintenance Performance Check ............................16 Out-of Warranty Repair Appendix 1 Technical Specification ........................ 17 Appendix 2 Mechanical Drawing ........................18 Appendix 3 Spare Parts ............................
- Page 4 This document covers the installation, operation, and maintenance of the ABE8KXH BUC. It contains information intended for engineers, technicians and operators working with the block up converter. To make inquiries, or to report errors of fact or omission in this document, please contact Actox Corporation at toll free 866-888-6087.
-
Page 5: Introduction

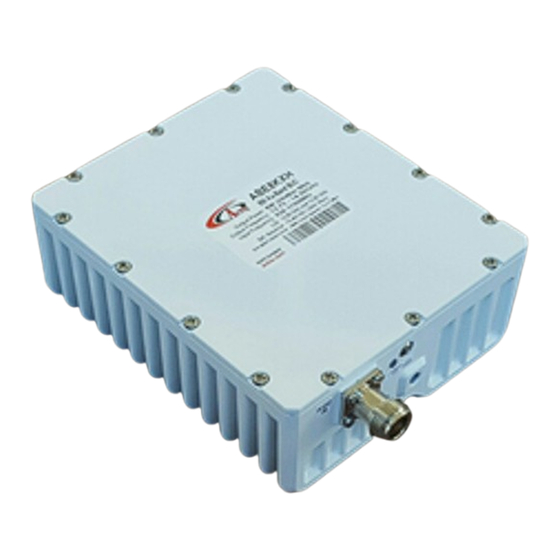

ABE8KXH User Manual Introduction The ABE8KXH is a reliable, high quality, cost efficient stand-alone block up converter. The application for this block up converter is Ku-Band VSAT communication in an outdoor environment. This line of superior products, engineered using state of the art technology, is characterized by unparalleled durability and dependability. -
Page 6: Receiving And Inspection
Using the supplied packing list, verify that all items have been received and undamaged during shipment. Verify that all items are complete. If there are any omissions or evidence of improper packaging, please notify Actox Corporation immediately. Equipment Damage or Loss Actox Corporation is not responsible for damage or loss of equipment during transit. -
Page 7: Preparing For Installation
ABE8KXH User Manual Preparing for Installation Before attempting to install or use the block up converter, we recommend that you first familiarize yourself with the product by reading through this manual. Understanding the operation of the system will reduce the possibility of incorrect installation, thereby causing damage or injury to yourself or others. -
Page 8: Installation & Overview
Band. The block up converter can be used as a stand-alone unit or in a redundant configuration. Specifications Table 1 summarizes the specifications of the ABE8KXH BUC. For mechanical specifications, refer to the outline drawing, Appendix 1. General Considerations The block up converter shall meet all specifications over full bandwidth and under all environmental conditions when terminated with a load of VSWR at 1.5:1 unless otherwise specified. -
Page 9: Installing The Block Up Converter
ABE8KXH User Manual Installing the Block-Up Converter Tools and Test Equipment Have on hand a standard electrician's tool kit and any tools listed in the antenna manufacturer's installation instructions. Site Considerations The BUC is designed to mount on the antenna. Locate and install the antenna according to instructions supplied by the antenna manufacturer. -
Page 10: Led Indication
Bias T (for example, ABT6ARN/ABT6ARF manufactured by Actox Corporation) or a similar bias T type. Please make sure to check the sticker on the BUC for the appropriate power source before any power connections are performed. -
Page 11: Recommended Test Equipment
ABE8KXH User Manual Recommended Test Equipment The following equipment or equivalent is recommended for installation and system alignment: Equipment Type Spectrum Analyzer HP8563E Digital Voltmeter Fluke 8050 Adapter Waveguide to coax C or Ku-band RF cables With calibrated insertion loss up to 15GHz 40 dB attenuator High Power to match HPA output. -
Page 12: Connections And Mounting Hardware
ABE8KXH User Manual Connections and Mounting Hardware The IF input connection requires a coaxial cable with an F or N type connector. The RF output requires a waveguide with a WR-75G flat flange. An O-ring shall be used to seal the waveguide connection. -
Page 13: Functional Overview
ABE8KXH User Manual Functional Overview General This section describes the block up converter functions in detail. The functional overview explains the RF amplification, monitor & control and power distribution. IF/RF Conversion and Amplification The IF Input requires a signal with a 10MHz reference, and 15-60 VDC power source. 2-4.5Amps nominal enters the BUC by a coaxial cable, converted to Ku-Band by the BUC and goes through an internal isolator and reject filter, which provides a good VSWR at the input. -
Page 14: Operation
ABE8KXH User Manual Operation It shall be performed by authorized personnel prior to maintenance and/or repair. Procedure Verify that the installation procedure described was completed. A complete physical check of the customer’s system is suggested. WARNING!! The output power available at the output waveguide flange is extremely hazardous. -
Page 15: Maintenance
ABE8KXH User Manual Maintenance This section contains information on how to maintain, troubleshoot and repair the block up converter. The block up converter is extremely reliable, requiring very little preventive maintenance, or repair. Should there be a malfunction, this section also contains technical information to help diagnose basic failures. -
Page 16: Performance Check
Out-of Warranty Repair A non-warranty and out-of-warranty repair service is available from Actox Corporation for a nominal charge. The customer is responsible for paying the cost of shipping the BUC both to and from Actox Corporation for these repairs. Page 16 of 19... -
Page 17: Appendix 1 Technical Specification
ABE8KXH User Manual Appendix 1. Technical Specification Page 17 of 19... -
Page 18: Appendix 2 Mechanical Drawing
ABE8KXH User Manual Appendix 2. Mechanical Drawing Page 18 of 19... -
Page 19: Appendix 3 Spare Parts
Fax: 1-866-888-6087 Email: mark_moore@actox.com For additional information, please contact our customer service department at: (619)906-8893 or 1-866-888-6087 Actox Corporation designers and manufacturers of telecom & wireless products ABE8KXH Ext. Ku-Band BUC Spare Parts Order Form From: Place By: Signature: Telephone:...
