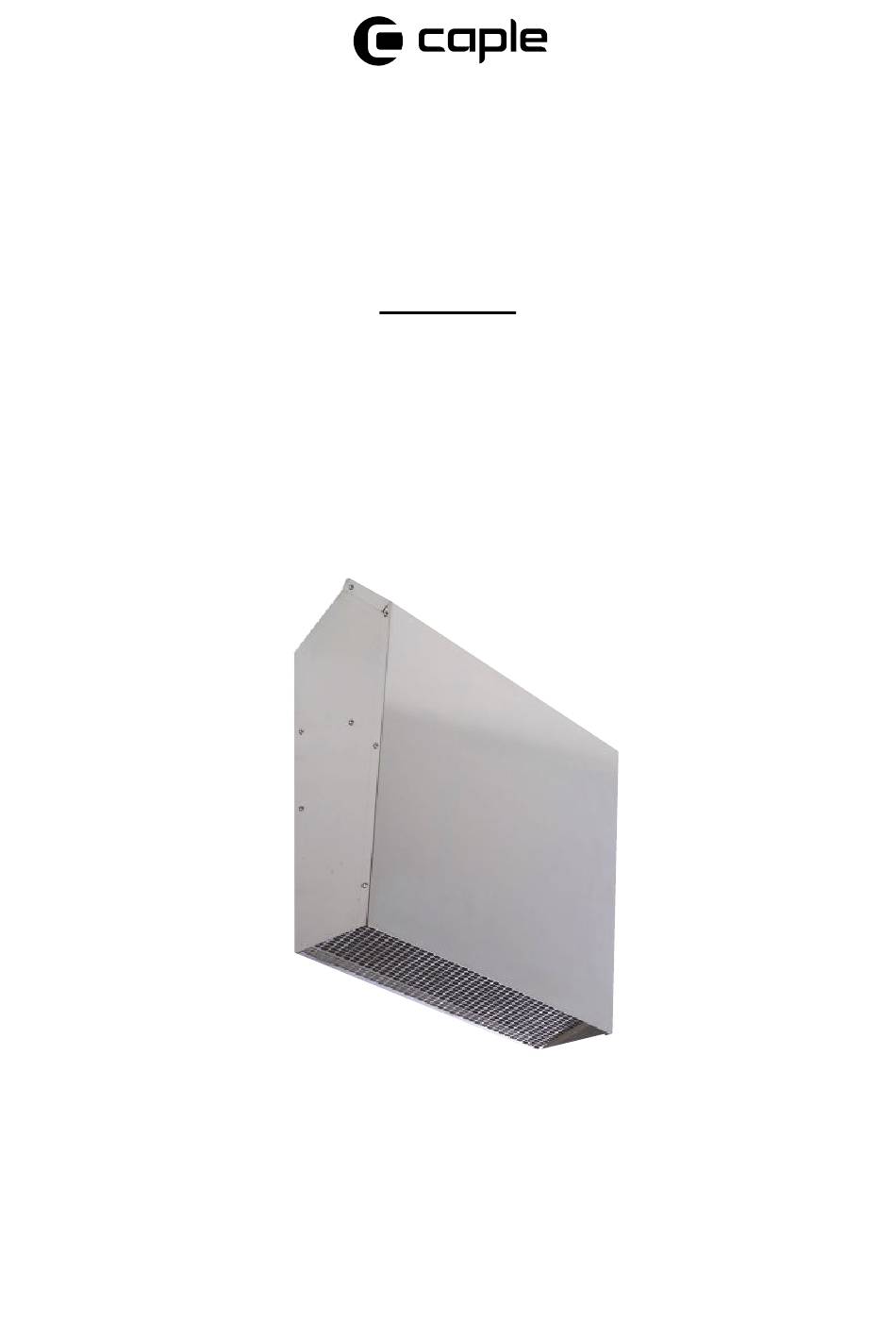

- Page 1 I n s t r u c t i o n M a n u a l M O D E L S : DDMEXT21, DDMEXT25, DDMEXT28, DDMEXT31, DDMEXT40 Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk...
- Page 2 C O N T E N T S Safety Instructions Environmental Protection Useful Warnings DDMEXT21 & DDMEXT25 DDMEXT31 DDMEXT40 DDMEXT28 Caple Contact Details Instruction manual Extraction Motors Please keep this instruction manual for future reference...
- Page 3 W A R N I N G S The air outlet of the appliance must not be connected to a flue which is used for exhausting other fumes from appliances, such as a central heating, boilers etc. For the external exhausting of the fumes, comply with the regulations in force.
- Page 4 A P P R O P R I A T E U S E - This appliance is intended to be used in household and similar applications such as: › Staff kitchen areas in shops, offices and other working environments. ›...
- Page 5 [placed on the inside of the appliance storage drawer]. Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase.
- Page 6 › Read carefully the manual of instructions and installation of the unit.- › Caple will not be responsible for problems of capacity and/or noise level due to the missed respect of the warnings included in the instruction manual.
- Page 7 650m3/h. DDMEXT21 and DDMEXT31 products have a timer control function activated at 4th speed for 6 minutes, if it is combined with a DOWNDRAFT or 5 minutes if it is combined with other products, such as ceiling hoods, wall hoods and island hoods.
- Page 8 D D M E X T 2 1 & D D M E X T 2 5 D D M E X T 2 1 D D M E X T 2 5 These products are designed to efficiently exhaust fumes and odours. They must be installed inside the house and connected to the cooker-hood, which is in the kitchen [Fig.1].
- Page 9 These products are designed to efficiently exhaust fumes and odours. They must be installed inside the house and connected to the cooker-hood, which is in the kitchen (Fig.1). TYPES OF INSTALLATION: To make the installation easy, the product can be fixed to the T Y P E S O F I N S TA L L AT I O N : wall, the ceiling or the floor in a horizontal position (Fig.2) or To make the installation easy, the product can be fixed to the wall, the ceiling or the floor in a...
- Page 10 Put the brackets (Fig.5A) on the remote fitted extraction motor by matching its holes with those of the brackets. Fix with the screws supplied (Fig.5B). Put the group on the point previously chosen for the installation and mark the points on the wall where the holes must be drilled.

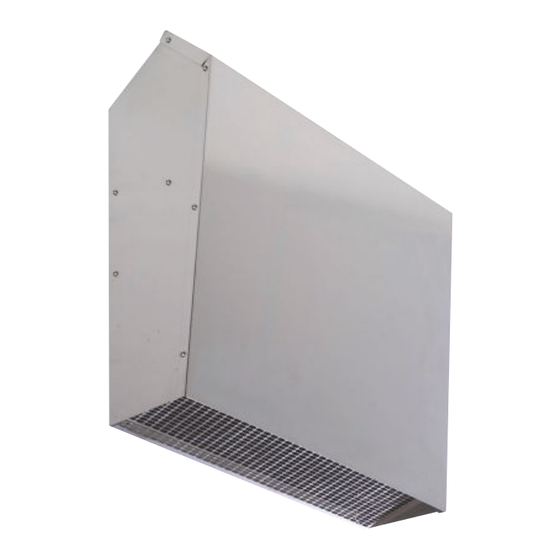

- Page 11 D D M E X T 3 1 450mm ∅150mm This product is designed to efficiently exhaust fumes and odours. It must be installed on the outside wall of the house and connected to the cooker-hood in the kitchen [Fig.8]. N OT E : The Motor must be installed a minimum of 50cm from the floor to avoid back pressures from the extracted air.
- Page 12 I N S TA L L AT I O N : This product is to be installed by a qualified technician. Using the appropriate drilling jig [Fig.9] drill all the holes marked on it into the external wall, by paying attention not to damage water pipes or power lines.
- Page 13 C O N N E C T I N G T H E D U C T I N G : CONNECTING THE DUCTING: The appliance has an air inlet to connect the ducting to an The appliance has an air inlet to connect the air outlet.
- Page 14 D D M E X T 4 0 705mm ∅150/200mm This product is designed to efficiently exhaust fumes and odours. It must be installed on the outside wall of the house and connected to the cooker-hood in the kitchen [Fig.13]. ed on N OT E : The Motor must be installed a minimum of 50cm from the floor to avoid back pressures from...
- Page 15 This product is designed to efficiently exhaust fumes and odours. It must be installed on the outside wall of the house and connected to the cooker-hood in the kitchen (Fig.13). I N S TA L L AT I O N : INSTALLATION: This product is to be installed by a qualified technician.
- Page 16 CONNECTING THE DUCTING: C O N N E C T I N G T H E D U C T I N G : The appliance has an air inlet to connect the ducting to an The appliance has an air inlet to connect the ducting air outlet.
- Page 17 This product has been designed to be installed under a kitchen cabinet, corresponding to the downdraft lower air outlet. This product can work only if it is used in combination with a Caple downdraft. This product is designed to efficiently exhaust fumes and odours. We recommend you use the product in Recirculation Mode only and to use a constant diameter piping of 150mm or similar sections.
- Page 18 We recommend you use the product in Recirculation cabinet, corresponding to the downdraft lower air outlet. This Mode only and to use a constant diameter piping of 150mm or product can work only if it is used in combination with a Caple similar sections. downdraft.
- Page 20 Caple Service Fourth Way Avonmouth T: 0117 938 1900 Bristol E: service@caple.co.uk BS11 8DW www.caple.co.uk...
