TOUCH FREE Infrared Thermometer
NT1B
EN
RoHS REACH
MDSS GmbH
Schiffgraben 41
30175 Hannover Germany
AViTA Corporation
9F., No. 78, Sec. 1, Kwang Fu Rd.,
San Chung Dist., New Taipei City 24158, Taiwan
China, AViTA(WUJIANG)
Importer
Distributor
INSTRUCTION MANUAL
Please read this instruction manual carefully
before using your forehead thermometer
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Safety 1st NT1B
Summary of Contents for Safety 1st NT1B
- Page 1 TOUCH FREE Infrared Thermometer NT1B RoHS REACH MDSS GmbH Schiffgraben 41 30175 Hannover Germany AViTA Corporation 9F., No. 78, Sec. 1, Kwang Fu Rd., San Chung Dist., New Taipei City 24158, Taiwan China, AViTA(WUJIANG) Importer Distributor INSTRUCTION MANUAL Please read this instruction manual carefully...
- Page 2 Contents Introduction ........................1 Important Information before Use ................2 Product Identification ..................... 4 Description of LCD Display ................... 5 Battery Installation ......................6 Switching Between Fahrenheit or Celsius .............. 7 Tips for Measuring Human Temperature ............... 7 Measuring Human Temperature ................8 Cleaning and Disinfecting .....................
- Page 3 Introduction This Touch Free Infrared Thermometers is intended for home use and the intermittent measurement of human body forehead temperature in people of all ages. 1. Multi functions Human Body/ Fever Indication 2. °C/°F Switch-able Function 3. One-second Reading 4. Auto power off for power saving 5.
- Page 4 Important Information before Use When using this product, please be sure to follow all the notes listed below. Any action against these notices may cause injury or affect the accuracy. 1. Do not disassemble, repair, or remodel the thermometer. 2. Be sure to clean the thermometer lens each time after usage. 3.
- Page 5 17. If any serious incident that has occurred in relation to the device should be reported to the manufacturer and the competent authority of the Member State in which the user is established. 18. If you would require any assistance during setting up, using or maintaining, please contact the manufacturer.

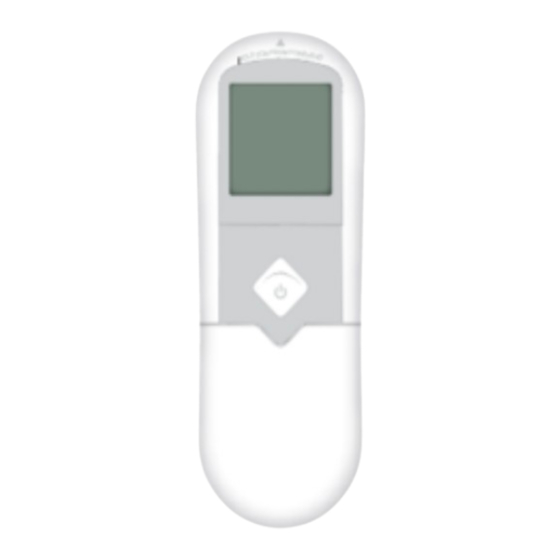

- Page 6 Product Identification Measurement Sensor LCD Display Measure Button C/F Unit Button...
- Page 7 Description of LCD Display Measuring sequence in process Human Mode Degree of measurement Celsius Scale Fahrenheit Scale Low battery indicator Frowning Face (temperature is equal or higher than 38°C) Smiling Face (temperature is lower than 38°C) Memory Symbol and sets of records...
- Page 8 Battery Installation Low battery warning: When the battery power becomes low, the low battery symbol “ ” will appear on the display. The thermometer can still be used during this time, but the batteries should be replaced as soon as possible. If the batteries run out completely, “Lo”...
- Page 9 Switching Between Fahrenheit or Celsius - Use a Phillips head screwdriver to loosen battery cover screw. Remove cover. - While thermometer is ON, gently press and release the °C/°F button. - Place the battery cover on the thermometer and tighten the screw to secure it in place.
- Page 10 Measuring Human Temperature Taking a Measurement 1. Press the Power Button to power on the thermometer. The unit will run a self-test and the LCD will briefly display all of its symbols during this time. When the device is ready, the last measurement reading appears on the screen, and the thermometer is ready to take a measurement.
- Page 11 Cleaning and Disinfecting For home use device disinfection, 75% alcohol (available in the pharmacy) can be used. • Measurement Sensor Clean the measurement sensor with an alcohol swab before and after each measurement. • Thermometer: Use a soft, dry cloth to clean thermometer body. Never use abrasive cleaning agents, thinners or benzene for cleaning.
- Page 12 Error Codes When a malfunction or incorrect temperature measurement occurs, an error message will appear as described below. Display Cause Solution Operate the thermometer The temperature measured is only between the specified higher than measurement range. temperature ranges. If 43°C (109.4°F) necessary, clean the sensor tip.
- Page 13 Technical Specification • Measuring range : Human Body : 34°C~43°C (93.2°F~109.4°F) • Calibration Accuracy: Human Body : ±0.2°C(±0.4°F): from 34°C~43°C (93.2°F~109.4°F) • Display resolution : 0.1°C (0.1°F) • Operating environment : 15°C~40°C (59°F ~ 104°F) with relative humidity up to 95% (non condensing) Atmospheric pressure: 700~1060 hPa •...
- Page 14 EMC Tables NT1B is intended for use in the electromagnetic environment specified below. The customer or the user of NT1B must make sure that it is used in such an environment. Guidance and manufacturer’s declaration - Electromagnetic emissions Professional healthcare...
- Page 15 requested from supplier using the contact information provided in this manual. However, it is advisable to keep the electromechanical aerosol equipment at an adequate distance of, at least, 0.5 m from mobile phones or other RF communications transmitters to minimise possible interference.
- Page 16 Explanation of Symbols The CE marking with the Registration Number of the Notified Body. This denotes the compliance of European Medical Device Directive 93/42/EEC Medical Device Manufacturer Authorized representative in the European Community Date of manufacture (YYYY-MM-DD or YYYY-MM) Batch code (YYMMWWWW) Serial number (YYMWWWXXXXX)
- Page 17 Humidity limitation Atmospheric pressure limitation Caution Consult the instruction for use Disposal information: Should you wish to dispose of the article, do so in accordance with current regulations. Details are available from your local authority. WEEE 2012/19/EU Directives This product fulfilling the requirements of the RoHS RoHS Directive 2011/65/EU.
- Page 18 This product meets the basic safety and essential performance requirements indicated in the IP22 conditioning test (protection against solid foreign objects of 12.5mm ∅ and greater and against vertically falling water drops when enclosure tiled up to 15°) The empty, completely flat batteries must be disposed of through specially designated collection boxes, recycling points or electronics retailers.
