NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF

Please visit

www.performanceparts.ford.com

! ! ! PLEASE READ ALL OF THE FOLLOWING INSTRUCTIONS CAREFULLY PRIOR TO

AT ANY TIME YOU DO NOT UNDERSTAND THE INSTRUCTIONS, PLEASE CALL THE FORD

Ford Factory Shop Manual purchase options

Techline 1-800-367-3788

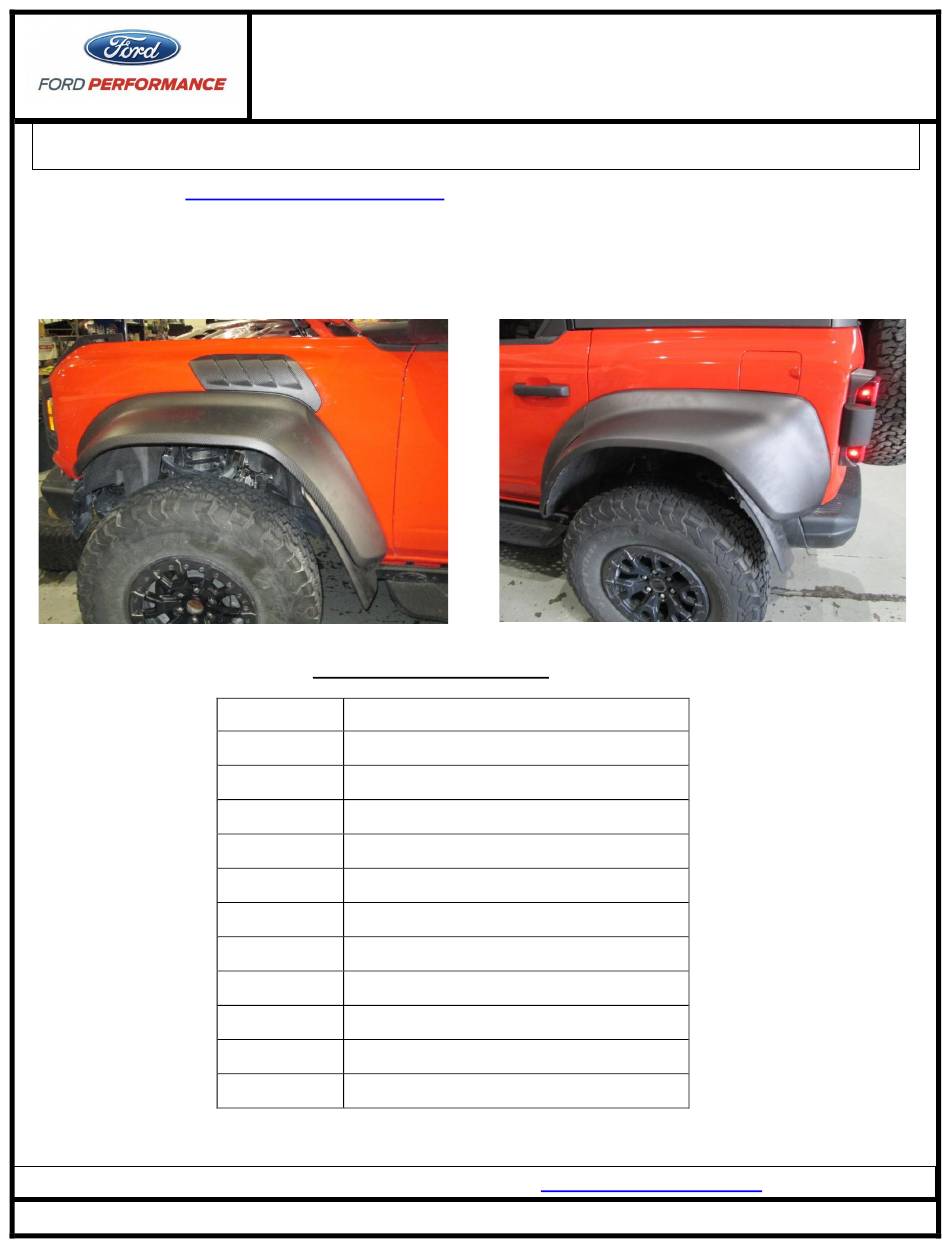

Part Number: M-16268-BCF / M-16268-BCFM

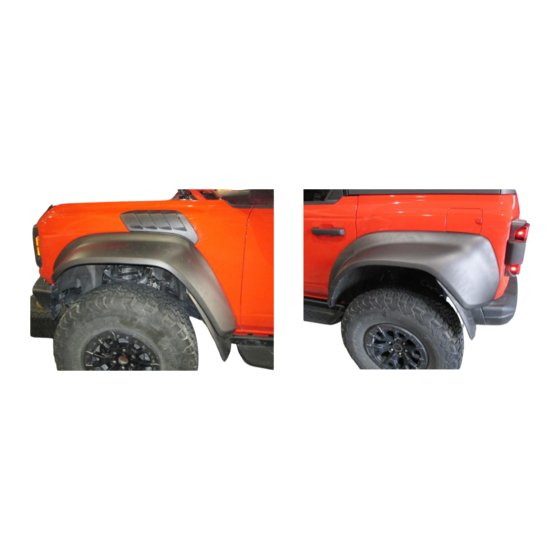

Part Description: 2022+ BRONCO RAPTOR CARBON

FIBER FENDER FLARES

FORD PERFORMANCE PARTS.

INSTALLATION.

PERFORMANCE TECHLINE AT 1-800-367-3788 ! ! !

Front & Rear Fender Flare Kit:

Part Name

Quantity

LH Fender Flare

RH Fender Flare

Flare Clip

Mud Flap Pin

LH Fender Flare

RH Fender Flare

LH Rear Door Flare

RH Rear Door Flare

Flare Clip (W722177-S300)

Mud Flap Pin (W715694-S300)

Door Flare Clip (W716352-S300)

for the most current instruction information

www.motorcraftservice.com

Page 1 of 23

IS M-16268-BG,BM 092823

Need help?

Do you have a question about the M-16268-BCF and is the answer not in the manual?

Questions and answers

Summary of Contents for Ford M-16268-BCF

Page 1 ! ! ! PLEASE READ ALL OF THE FOLLOWING INSTRUCTIONS CAREFULLY PRIOR TO INSTALLATION. AT ANY TIME YOU DO NOT UNDERSTAND THE INSTRUCTIONS, PLEASE CALL THE FORD PERFORMANCE TECHLINE AT 1-800-367-3788 ! ! ! Front & Rear Fender Flare Kit:...
Page 2 Part Number: M-16268-BCF / M-16268-BCFM Part Description: 2022+ BRONCO RAPTOR CARBON FIBER FENDER FLARES NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF FORD PERFORMANCE PARTS. NOTE: Removal steps in this procedure may contain installation details.
Page 3 Part Number: M-16268-BCF / M-16268-BCFM Part Description: 2022+ BRONCO RAPTOR CARBON FIBER FENDER FLARES NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF FORD PERFORMANCE PARTS. Lifting Points NOTE: RH side shown, LH side similar.
Page 4 Part Number: M-16268-BCF / M-16268-BCFM Part Description: 2022+ BRONCO RAPTOR CARBON FIBER FENDER FLARES NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF FORD PERFORMANCE PARTS. WARNING: Position the hoist lift arms as shown in the illustration. Incorrect positioning could result in vehicle slipping or falling from the hoist.
Page 5 Part Number: M-16268-BCF / M-16268-BCFM Part Description: 2022+ BRONCO RAPTOR CARBON FIBER FENDER FLARES NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF FORD PERFORMANCE PARTS. NOTICE: Damage to the suspension, exhaust or steering linkage components may occur if care is not exercised when positioning the hoist adapters prior to lifting the vehicle.
Page 6 Part Number: M-16268-BCF / M-16268-BCFM Part Description: 2022+ BRONCO RAPTOR CARBON FIBER FENDER FLARES NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF FORD PERFORMANCE PARTS. Step 3: Remove the fender splash shields. Remove the trim pins.
Page 7 Part Number: M-16268-BCF / M-16268-BCFM Part Description: 2022+ BRONCO RAPTOR CARBON FIBER FENDER FLARES NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF FORD PERFORMANCE PARTS. Step 5: Remove the front fender flare. 1. Press the lugs and release the pushpins from fender.
Page 8 Part Number: M-16268-BCF / M-16268-BCFM Part Description: 2022+ BRONCO RAPTOR CARBON FIBER FENDER FLARES NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF FORD PERFORMANCE PARTS. Step 8: Install (14) of the provided flare retaining clips to the new carbon fiber fender flare.
Page 9 Part Number: M-16268-BCF / M-16268-BCFM Part Description: 2022+ BRONCO RAPTOR CARBON FIBER FENDER FLARES NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF FORD PERFORMANCE PARTS. Step 13: Remove the bolt and retainers and rear shield wheel splash.
Page 10 Part Number: M-16268-BCF / M-16268-BCFM Part Description: 2022+ BRONCO RAPTOR CARBON FIBER FENDER FLARES NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF FORD PERFORMANCE PARTS. Step 15: Remove the rear fender splash shield.
Page 11 Part Number: M-16268-BCF / M-16268-BCFM Part Description: 2022+ BRONCO RAPTOR CARBON FIBER FENDER FLARES NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF FORD PERFORMANCE PARTS. Step 16: Loosen the wheel molding bracket. 1. Remove the screws.
Page 12 Part Number: M-16268-BCF / M-16268-BCFM Part Description: 2022+ BRONCO RAPTOR CARBON FIBER FENDER FLARES NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF FORD PERFORMANCE PARTS. Step 17: Remove the rear fender flare. Press the lugs and release pushpins from the quarter panel and remove the rear fender flare.
Page 13 Part Number: M-16268-BCF / M-16268-BCFM Part Description: 2022+ BRONCO RAPTOR CARBON FIBER FENDER FLARES NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF FORD PERFORMANCE PARTS. Step 19: Remove the interior rear door handle bolt. Torque: 36 lb.in (4.1 Nm) Step 20: Remove the rear door trim panel bolt cover.
Page 14 Part Number: M-16268-BCF / M-16268-BCFM Part Description: 2022+ BRONCO RAPTOR CARBON FIBER FENDER FLARES NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF FORD PERFORMANCE PARTS. Step 21: Remove the rear door trim panel bolts. Torque: 36 lb.in (4.1 Nm) Step 22: Remove the rear door trim panel lower bolts.
Page 15 Part Number: M-16268-BCF / M-16268-BCFM Part Description: 2022+ BRONCO RAPTOR CARBON FIBER FENDER FLARES NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF FORD PERFORMANCE PARTS. Step 23: Release the rear door trim panel clips.
Page 16 Part Number: M-16268-BCF / M-16268-BCFM Part Description: 2022+ BRONCO RAPTOR CARBON FIBER FENDER FLARES NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF FORD PERFORMANCE PARTS. Step 24: Remove the rear door trim panel.
Page 17 Part Number: M-16268-BCF / M-16268-BCFM Part Description: 2022+ BRONCO RAPTOR CARBON FIBER FENDER FLARES NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF FORD PERFORMANCE PARTS. Step 26: Remove the rear door window glass. Remove the rear door window glass inner belt moulding.
Page 18 Part Number: M-16268-BCF / M-16268-BCFM Part Description: 2022+ BRONCO RAPTOR CARBON FIBER FENDER FLARES NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF FORD PERFORMANCE PARTS. Step 28: Raise and align the rear door window glass.
Page 19 Part Number: M-16268-BCF / M-16268-BCFM Part Description: 2022+ BRONCO RAPTOR CARBON FIBER FENDER FLARES NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF FORD PERFORMANCE PARTS. Step 30: Remove the rear door watershield. Step 31: Press the lugs from the interior of the door and release the retainers from the door.
Page 20 Part Number: M-16268-BCF / M-16268-BCFM Part Description: 2022+ BRONCO RAPTOR CARBON FIBER FENDER FLARES NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF FORD PERFORMANCE PARTS. Step 32: Using the interior trim remover, pry and slowly allow tape to start release and remove the rear door flare.
Page 21 Part Number: M-16268-BCF / M-16268-BCFM Part Description: 2022+ BRONCO RAPTOR CARBON FIBER FENDER FLARES NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF FORD PERFORMANCE PARTS. Step 37: Install the wheel and tire and install the wheel nuts.
Page 22 Part Number: M-16268-BCF / M-16268-BCFM Part Description: 2022+ BRONCO RAPTOR CARBON FIBER FENDER FLARES NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF FORD PERFORMANCE PARTS. WARNING: Retighten wheel nuts within 160 km (100 mi) after a wheel is reinstalled. Wheels can loosen after initial tightening.
Page 23 Part Number: M-16268-BCF / M-16268-BCFM Part Description: 2022+ BRONCO RAPTOR CARBON FIBER FENDER FLARES NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF FORD PERFORMANCE PARTS. Care Carbon fiber products are durable, but still requires care and maintenance to stay looking good. More specifically, keep the products clean and minimize exposure to the sun.
