NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF
Please visit
www.performanceparts.ford.com
! ! ! PLEASE READ ALL OF THE FOLLOWING INSTRUCTIONS CAREFULLY PRIOR TO
AT ANY TIME YOU DO NOT UNDERSTAND THE INSTRUCTIONS, PLEASE CALL THE FORD
Ford Factory Shop Manual purchase options
Techline 1-800-367-3788

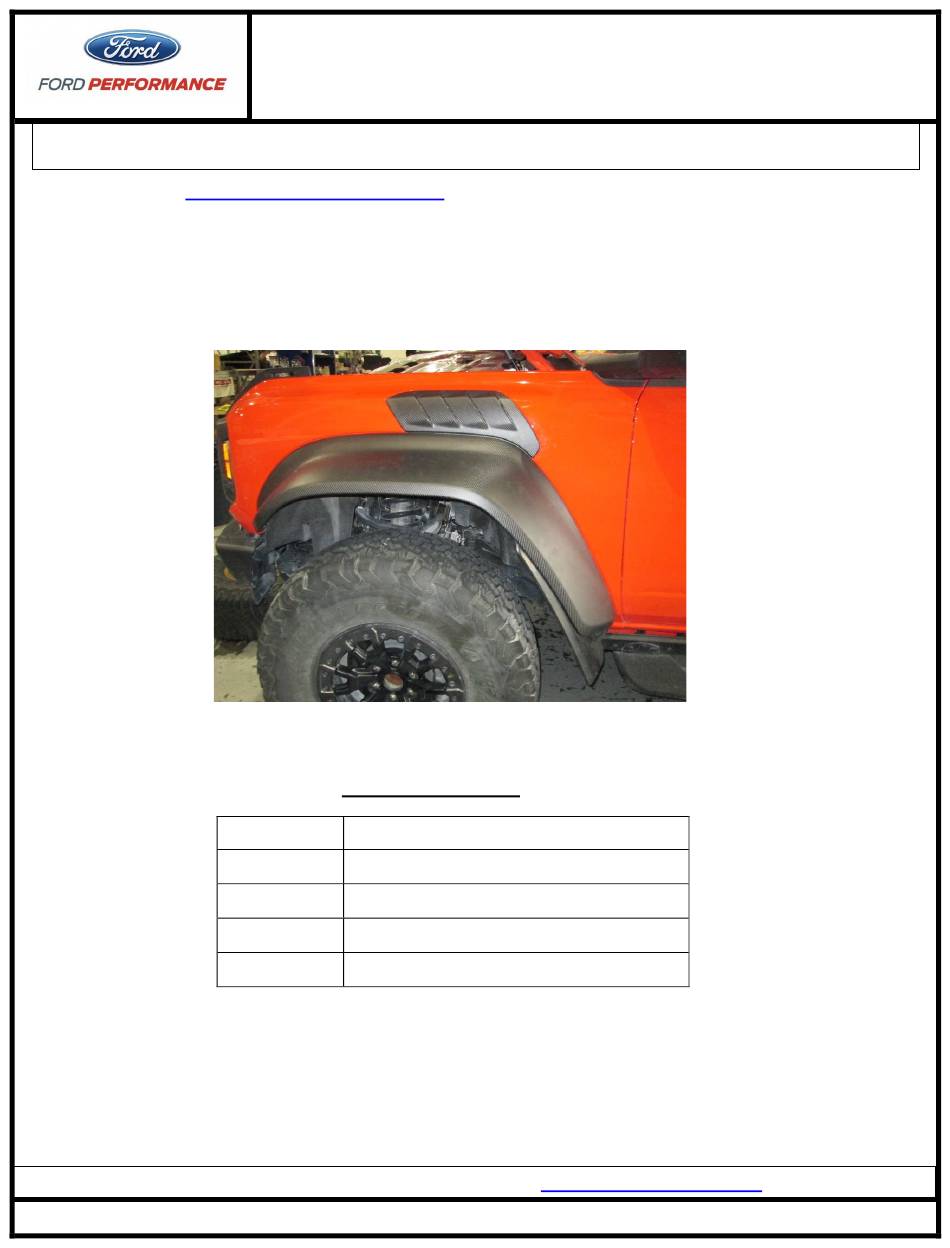

Part Number: M-16026-BG / M-16026-BM
Part Description: 2022+ BRONCO RAPTOR CARBON
FIBER FRONT FENDER VENTS
FORD PERFORMANCE PARTS.
INSTALLATION.
PERFORMANCE TECHLINE AT 1-800-367-3788 ! ! !
Front Fender Flare Kit:
Part Name
Quantity
1
LH Fender Vent
1
RH Fender Vent
9
Vent Clip (W712427-S424)
3
Vent Clip (W716053-S424)
for the most current instruction information
www.motorcraftservice.com
Page 1 of 12
IS-M-16026-BG,BM 092823
Advertisement
Related Manuals for Ford M-16026-BG
Summary of Contents for Ford M-16026-BG
- Page 1 ! ! ! PLEASE READ ALL OF THE FOLLOWING INSTRUCTIONS CAREFULLY PRIOR TO INSTALLATION. AT ANY TIME YOU DO NOT UNDERSTAND THE INSTRUCTIONS, PLEASE CALL THE FORD PERFORMANCE TECHLINE AT 1-800-367-3788 ! ! ! Front Fender Flare Kit:...
- Page 2 Part Number: M-16026-BG / M-16026-BM Part Description: 2022+ BRONCO RAPTOR CARBON FIBER FRONT FENDER VENTS NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF FORD PERFORMANCE PARTS. NOTE: Removal steps in this procedure may contain installation details.
- Page 3 Part Number: M-16026-BG / M-16026-BM Part Description: 2022+ BRONCO RAPTOR CARBON FIBER FRONT FENDER VENTS NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF FORD PERFORMANCE PARTS. Lifting Points NOTE: RH side shown, LH side similar.
- Page 4 Part Number: M-16026-BG / M-16026-BM Part Description: 2022+ BRONCO RAPTOR CARBON FIBER FRONT FENDER VENTS NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF FORD PERFORMANCE PARTS. WARNING: Position the hoist lift arms as shown in the illustration. Incorrect positioning could result in vehicle slipping or falling from the hoist.
- Page 5 Part Number: M-16026-BG / M-16026-BM Part Description: 2022+ BRONCO RAPTOR CARBON FIBER FRONT FENDER VENTS NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF FORD PERFORMANCE PARTS. NOTICE: Damage to the suspension, exhaust or steering linkage components may occur if care is not exercised when positioning the hoist adapters prior to lifting the vehicle.
- Page 6 Part Number: M-16026-BG / M-16026-BM Part Description: 2022+ BRONCO RAPTOR CARBON FIBER FRONT FENDER VENTS NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF FORD PERFORMANCE PARTS. Step 3: Remove the fender splash shields. Remove the trim pins.
- Page 7 Part Number: M-16026-BG / M-16026-BM Part Description: 2022+ BRONCO RAPTOR CARBON FIBER FRONT FENDER VENTS NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF FORD PERFORMANCE PARTS. Step 5: Remove the front fender flare.
- Page 8 Part Number: M-16026-BG / M-16026-BM Part Description: 2022+ BRONCO RAPTOR CARBON FIBER FRONT FENDER VENTS NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF FORD PERFORMANCE PARTS. Install (6) vent clips on the LH carbon fiber vent – Part number W712427-S424 as shown Step 7: below in RED.
- Page 9 Part Number: M-16026-BG / M-16026-BM Part Description: 2022+ BRONCO RAPTOR CARBON FIBER FRONT FENDER VENTS NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF FORD PERFORMANCE PARTS. Install (3) vent clips on the RH carbon fiber vent – Part number W712427-S424 as shown Step 8: below in RED.
- Page 10 Part Number: M-16026-BG / M-16026-BM Part Description: 2022+ BRONCO RAPTOR CARBON FIBER FRONT FENDER VENTS NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF FORD PERFORMANCE PARTS. Step 9: To install the carbon fiber fender vents, reverse the removal procedure.
- Page 11 Part Number: M-16026-BG / M-16026-BM Part Description: 2022+ BRONCO RAPTOR CARBON FIBER FRONT FENDER VENTS NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF FORD PERFORMANCE PARTS. WARNING: Retighten wheel nuts within 160 km (100 mi) after a wheel is reinstalled. Wheels can loosen after initial tightening.
- Page 12 Part Number: M-16026-BG / M-16026-BM Part Description: 2022+ BRONCO RAPTOR CARBON FIBER FRONT FENDER VENTS NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF FORD PERFORMANCE PARTS. Care Carbon fiber products are durable, but still requires care and maintenance to stay looking good. More specifically, keep the products clean and minimize exposure to the sun.
